Optical Time Domain Reflectometer Viavi Smart OTDR with E126A module
Overview
Description

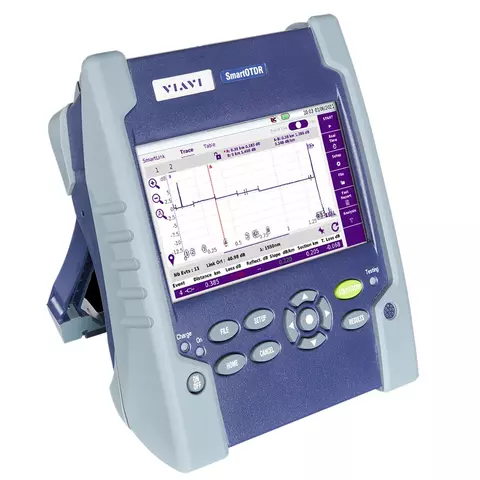

Viavi Smart OTDR with E126A module is an A-Range Handheld Fiber Tester operating at 1310/1550 nm (SC/PC). It is an affordable, easy-to-use device suitable for technicians of any skill level. The lightweight and compact SmartOTDR speeds up and optimizes field testing of metro and access networks with a user-friendly OTDR interface and automatic analysis that any technician can understand.
With the SmartOTDR, generic or user-defined setup configurations help eliminate setup errors and ensure consistent results. One-touch operation and a single results window enable fast and easy measurements, while robust wireless connectivity options increase productivity in any location.
Multiple connectivity options (3G/4G smartphones via USB and optional Bluetooth/WiFi) allow for remote control, as well as data and work-order transfers to and from tablets, smartphones, and computers. The SmartOTDR quickly resolves field issues in real time, and the optional SmartAccess Anywhere (SAA) feature can open a secure tunnel in the cloud, allowing technicians to remotely access and operate the instrument. Compatible with a wide range of cloud servers (WebDAV service providers), the SmartOTDR can also instantly share measurement reports via onboard FastReport PDF report generation.
Features
- Combines all essential fiber tests in one handheld device, with options for a visual fault locator (VFL), optical power meter (OPM), and connector inspection scope
- Simplifies OTDR analysis with Smart Link Mapper (SLM) result view
- Field-upgradeable for enhanced functionality
- Automates testing with objective pass/fail results
- Enhances productivity with robust network connectivity options
- Available in single-, dual-, and tri-wavelength versions with 1310/1550 nm and in-service 1625 or 1650 nm wavelengths
- Lightweight, compact, hands-free design with a 5” high-visibility outdoor touchscreen
- Integrated continuous wave (CW) light source
- Optimized for PON, capable of testing through a 1x128 splitter ratio with FTTH-SLM
- Supports distributed PON architectures (unbalanced, tapered, and indexed splitters)
- Built-in broadband and dual-band selective power meter (1490/1550/1577 nm)
- Automated fiber inspection with pass/fail analysis software
- 4G/5G connectivity via USB, Bluetooth®, or WiFi options
- All-day battery life (20-hour autonomy)
- Password protection and watermark logo options
Technical Specifications
| General | |
|---|---|
| Display | 5-inch capacitive color touch (12.5 cm) |
| Display resolution | 800 × 480 W VGA |
| Interfaces | 2× USB 2.0 ports, 1× mini-USB 2.0 port, built-in Bluetooth and WiFi (optional, dongles also available) |
| Storage | 20 000 OTDR traces typical |
| Battery | Rechargeable Lithium-polymer battery, up to 20 hours of operation |
| Power supply | AC/DC adapter, input 100-240 V AC, 50-60 Hz; 2 A max, output 12 V DC, 24 W |
| Electrical safety | EN/IEC 60950-1 compliant |
| Dimensions (H×W×D) | 175 mm × 138 mm × 57 mm (6.9 in × 5.4 in × 2.24 in) |
| Weight (battery included) | Approx. 0.9 kg (1.98 lb) |
| Operating/Storage temperature | Operating: –20 to +50°C; storage: –20 to +60°C |
| Humidity (noncondensing) | 95% |
| OTDR | |
| Laser safety class (21 CFR) | Class 1 |
| Number of data points | Up to 256,000 data points |
| Display range | 0.1 km to 260 km |
| Sampling resolution | 4 cm |
| Distance accuracy | (±1 m) ± (sampling resolution) ±(1.10–5 x distance), excluding group index uncertainties |
| Attenuation resolution | 0.001 dB |
| Attenuation linearity | ±0.04 dB/dB |
| Central wavelength | 1310/1550 nm ±20 nm |
| RMS dynamic range | 37/35 dB |
| Pulse widths | 5 ns to 20 µs |
| Event dead zone | 1.35 m |
| Attenuation dead zone | 4 m |
| Splitter attenuation dead zone | Not available |
| CW light Source | |
| Output power level | –3.5 dBm |
| Stability long term (8 hr) | ±0.05 dB |
User Manual
Download Viavi Smart OTDR User Manual.
Data Sheet
Download Viavi Smart OTDR Data Sheet.
Package Contents
- Optical Time Domain Reflectometer Viavi Smart OTDR with E126A module — 1 pc.
- Hands-Free Soft Case with Neck Strap — 1 pc.
- Stylus — 1 pc.
- Lithium-Polymer Battery — 1 pc.
- SC/PC Connector — 1 pc.
