Pocket Digital Multimeter Accta AT-110
id: 891573
Pocket Digital Multimeter Accta AT-110
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 8.13
Notify
when in stock
when in stock
Overview
Video
Video
Video
New
0.16 kg Warranty: 12 months
Auto-ranging True RMS multimeter designed to test diodes and measure DC/AC voltage, duty cycle, resistance, capacitance, and frequency. Read more
Buy wholesale and save
Description

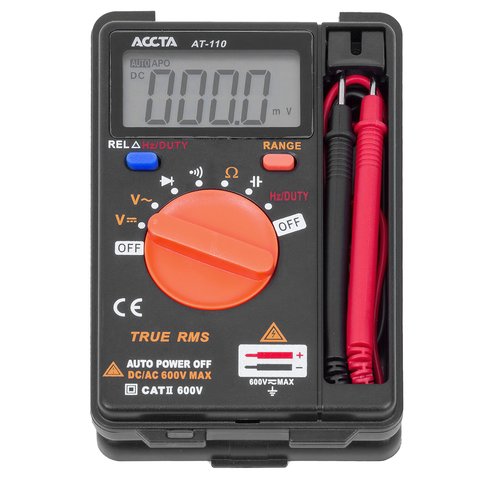

Accta AT-110 is an auto-ranging pocket-sized digital True RMS multimeter. The device may be used for diodes and continuity testing, measuring AC and DC voltage, resistance, capacitance, frequency, and duty cycle. Accta AT-110 is powered by two AAA batteries (1.5 V).
Features
- Measurement functions:
- True RMS;
- DC voltage;
- AC voltage;
- resistance;
- capacitance;
- frequency;
- continuity testing;
- diode testing;
- duty cycle.
- Auto range.
- Continuity buzzer.
- Low battery indication.
- Powered by two AAA batteries.
- Auto power off.
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 400 mV / 4 V / 40 V / 400 V / 600 V | ±(0.5%+4) |
| AC Voltage | 400 mV / 4 V / 40 V / 400 V / 600 V | ±(0.8%+6) |
| Resistance | 400 Ω /4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ | ±(0.8%+4) |
| Capacitance | 4 nF / 40 nF / 400 nF / 4 µF / 40 µF / 2000 µF | ±(3.5%+8) |
| Frequency | 100 Hz / 1000 Hz / 10 kHz / 100 kHz / 1 MHz / 10 MHz | ±(0.5%+4) |
| General Specifications | ||
| Power | AAA battery 1.5 V × 2 pcs. | |
| Input impedance | 10 MΩ | |
| Sampling rate | 3 times/s | |
| AC Frequency response | 40-400 Hz | |
| Display | LCD, 55 × 43 mm | |
| Dimensions | 145 × 80 × 28 mm | |
| Weight | 180 g | |
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- Pocket Digital Multimeter Accta AT-110 — 1 pc.
- Lanyard — 1 pc.
- User Manual — 1 pc.
Note! Batteries are not included in the package.
