Portable Digital Oscilloscope FNIRSI DSO138
id: 908342
Portable Digital Oscilloscope FNIRSI DSO138
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 17.86
Overview
Bestseller
0.2 kg
Availability in stock:
HK
Warranty: 6 months A single-channel digital PCB-like oscilloscope equipped with connectors. 200 kHz bandwidth, 1 MS/s sampling rate, 1 kB memory depth. Read more
USD 17.86
You may also like
Pocket-sized single-channel oscilloscope with 3 trigger modes, a bandwidth of 5 MHz, a sampling rate of 20 MS/s, and a memory depth of 40 kB
Availability in stock:
HK
ID: 910523 0.5 kg
Portable single-channel digital oscilloscope with 110 MHz bandwidth, 500 MSa/s sampling rate, 240 kB storage depth and 2.4" TFT display.
Availability in stock:
HK
ID: 910522 0.5 kg
Description

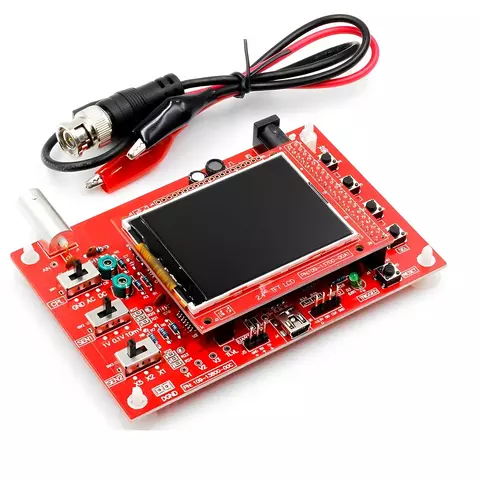

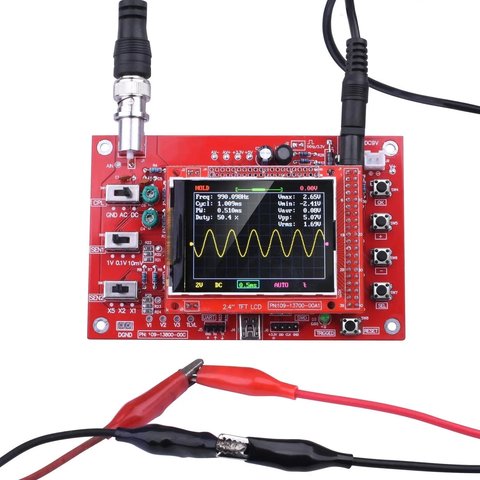

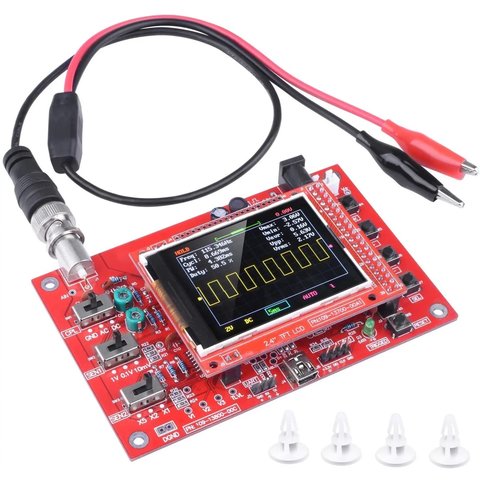

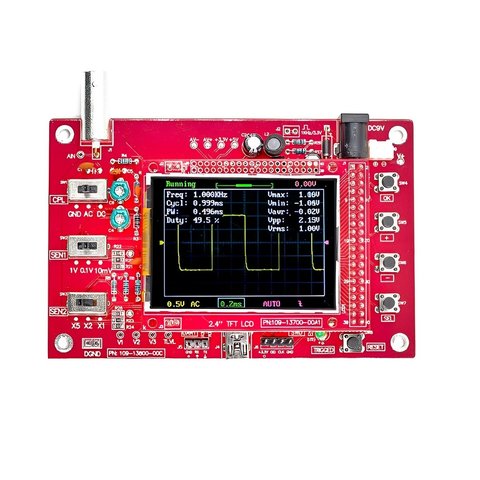

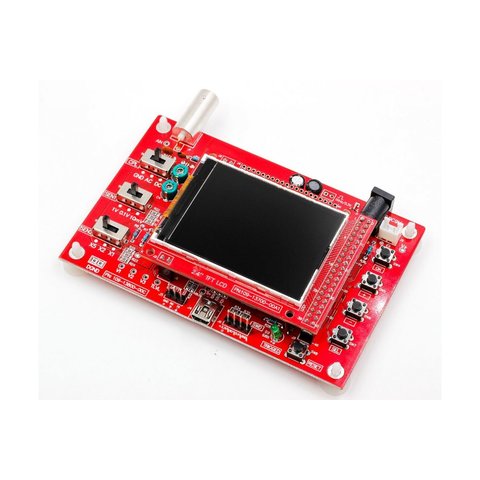

FNIRSI DSO138 is a single-channel digital oscilloscope with a 200 kHz bandwidth, a 1 MS/s sampling rate, and a 1 kB memory depth. The tool is equipped with a 2.4" TFT color display. This compact and functional PCB-like device with connectors is a perfect choice for people who are into amateur radio.
Features

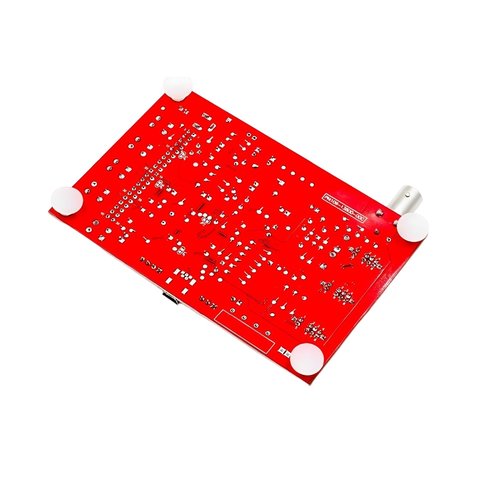

- Compact single-channel oscilloscope in the form of a PCB.
- 2.4" TFT display.
- Bandwidth: 200 kHz; sampling rate: 1 MS/s.
- Three sweep modes: auto, pulse, single.
- Test mode to detect network breaks and short circuits.
- Probe calibration mode.
Technical Specifications
| Channel | 1 |
| Bandwidth | 200 kHz |
| Sampling rate | 1 MS/s |
| Accuracy | 12 Bit |
| Sampling Buffer Depth | 1 kB |
| The Horizontal Time Base Range | 10 μs/div - 50 s/div |
| Vertical Sensitivity | 50 mV/div - 5 V/Div |

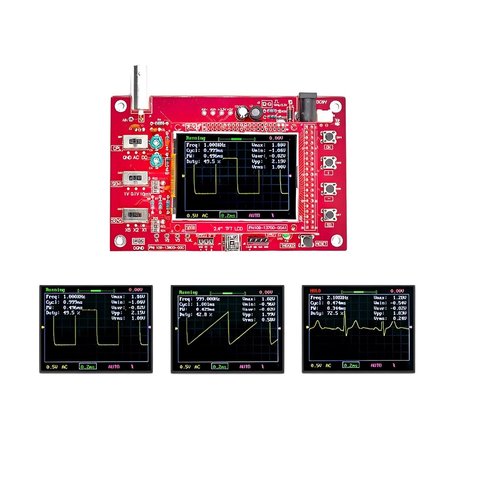

| Cursor measurements | amplitude, time, delta |
| Automatic measurements | 11 parameters (VPP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time-, Time-, Time) |
| Coupling | DC / AC / GND, input impedance: 1 MΩ, 25 pF |
| Maximum Input Voltage | 50 Vpp (1: 1 probe), 400 Vpp (10: 1 probe) |
| Display | 2,4” TFT, 52×40 mm |
| Power | 9 VDC |
| Dimensions | 117 mm × 76 mm × 24 mm |
| Weight | 100 g |

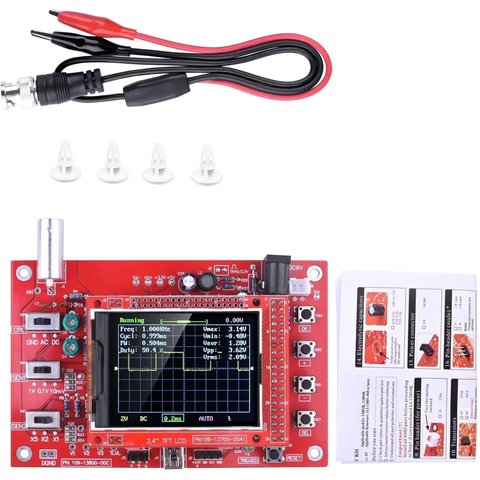

Package Contents

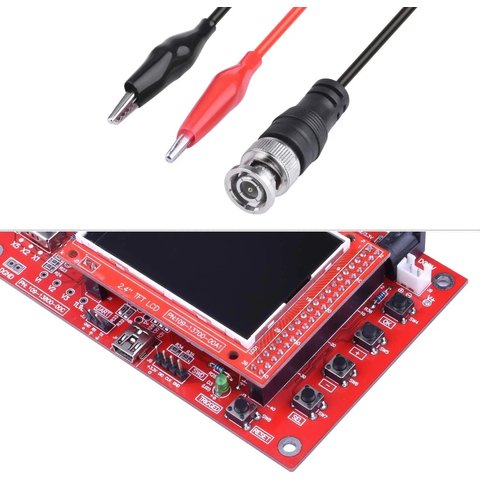

- Portable Digital Oscilloscope FNIRSI DSO138 — 1 pc.

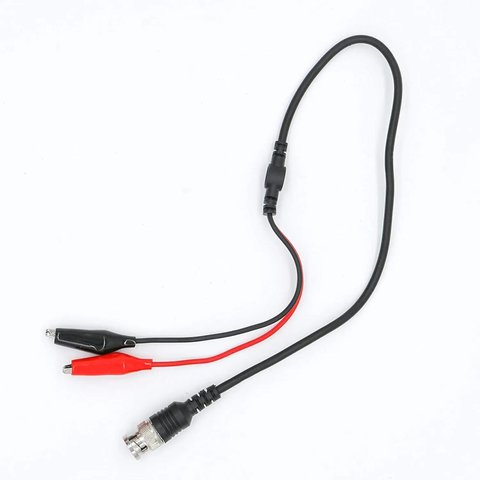

- Measuring Probe — 1 pc.
