Overview
5.7 kg 220 V Warranty: 6 months

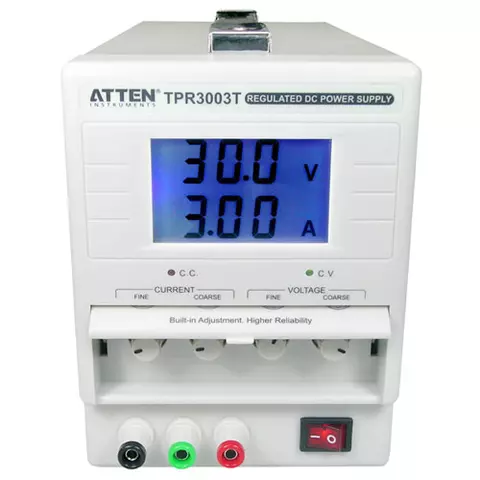

ATTEN TPR3003T is a single DC power supply with continiously adjustable voltage and current.
USD 130.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 130.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

ATTEN TPR3003T is a single DC power supply with continiously adjustable voltage and current. ATTEN power supply has large-screen LCD display and is useful for laboratories, teaching, electronics production lines and communications industry.

ATTEN TPR3003T Power Supply Unit Features

  • Constant current and constant voltage regulated power supply
  • Multi-defensive function (current limiting voltage reduction, short circuit and overheating protection)
  • Low ripple and noise
  • Overload and reverse polarity protection

ATTEN TPR3003T Power Supply Unit Comparative Specifications

Model TPR3003T TPR3005T
Rated Output Voltage 0-30V (adjustable)
Rated Output Current 0-3 A (adjustable) 0-5 A (adjustable)
Rated Output Power 90W 150W
AC Input Voltage AC 110V/220V ±10% 60Hz/50Hz
Ripple and Noise ≤3mV (rms)
Load Stability 0.1% ± 2mV
Voltage Display Accuracy 0.1V ±2 digit
Current Display Accuracy 0.01A ±2 digit
Power Stability 0.1% ± 2mV
Insulation Resistance ≥ 7MΩ
Cooling Method Wind Cooling
Work Method Constant-Current Constant-Voltage
Working Environment 0-40 °C Relative Humidity
Dimensions, mm 275 × 125 × 170
Weight, kg 14
Read more
Description

ATTEN TPR3003T is a single DC power supply with continiously adjustable voltage and current. ATTEN power supply has large-screen LCD display and is useful for laboratories, teaching, electronics production lines and communications industry.

ATTEN TPR3003T Power Supply Unit Features

  • Constant current and constant voltage regulated power supply
  • Multi-defensive function (current limiting voltage reduction, short circuit and overheating protection)
  • Low ripple and noise
  • Overload and reverse polarity protection

ATTEN TPR3003T Power Supply Unit Comparative Specifications

Model TPR3003T TPR3005T
Rated Output Voltage 0-30V (adjustable)
Rated Output Current 0-3 A (adjustable) 0-5 A (adjustable)
Rated Output Power 90W 150W
AC Input Voltage AC 110V/220V ±10% 60Hz/50Hz
Ripple and Noise ≤3mV (rms)
Load Stability 0.1% ± 2mV
Voltage Display Accuracy 0.1V ±2 digit
Current Display Accuracy 0.01A ±2 digit
Power Stability 0.1% ± 2mV
Insulation Resistance ≥ 7MΩ
Cooling Method Wind Cooling
Work Method Constant-Current Constant-Voltage
Working Environment 0-40 °C Relative Humidity <80%
Dimensions, mm 275 × 125 × 170
Weight, kg 14
Specifications
Type
  • transformer
Number of channels
  • single-channel
Max. Voltage
  • up to 30 V
Max. Current
  • up to 3 A
Indicator type
  • LCD indicators
