Programmable high-precision linear DC power supply with 3 output channels and a 220 W max. output power. 4.3-inch TFT LCD.
Availability in stock:
HK
ID: 862796 10 kg 110, 220

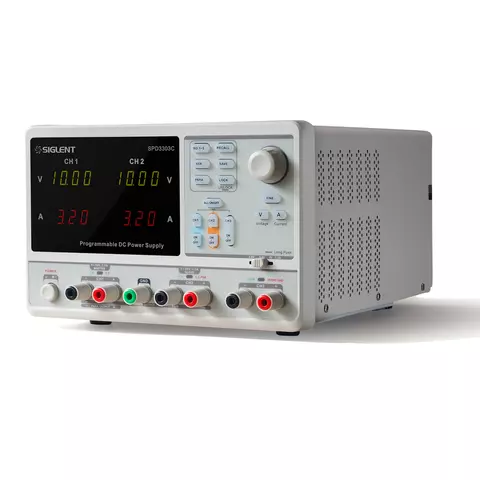

DC Power Supply SIGLENT SPD3303C
id: 855031
DC Power Supply SIGLENT SPD3303C
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 219.12
Overview
Bestseller
10 kg 110, 220 V
Availability in stock:
HK
Warranty: 36 months High-precision programmable linear DC power supply. Read more
You may also like
Programmable high-precision linear DC power supply with 3 output channels and a 220 W max. output power. 4.3-inch TFT LCD (4 digits voltage / 3 digits current).
Availability in stock:
HK
ID: 862795 9.5 kg 110, 220
Description
SIGLENT SPD3303C is a high-precision linear DC power supply.
Features
- 4 digits voltage and 3 digits current display, min resolution: 10 mV, 10 mA
- Three output modes: independent, series and parallel connect
- Smart temperature control fan, effectively reduces the noise
- Save/Recall of 5 groups of system specifications, supports data storage
Technical Specifications
| Channels | CH1: DC voltage range: 0-30 V, DC current range: 0-3 A CH2: DC voltage range: 0-30 V, DC current range: 0-3 A CH3: DC voltage range: 2.5/3.3/5.0 V, DC current range: 0-3 A |
| Max output power | 195 W |
| Min voltage/current resolution | 10 mV / 10 mA |
| Voltage/Current display digits | LED 4 digits voltage and 3 digits current display |
| Ripple noise | ≤1 mVrms（5Hz～1MHz） ≤3 mArms |
| Standard interface | USB Device |
| Dimensions | 210 mm (W) × 130 mm (H) × 265 mm (D) |
| Weight | 7 kg |
Package Contents
- DC Power Supply SIGLENT SPD3303C — 1 pc.
- 220V EU AC Power Cord — 1 pc.
- USB Cable — 1 pc.
- Alligator Clips — 2 sets.
- Quick Start — 1 pc.
- CD — 1 pc.
- Calibration Certificate — 1 pc.
Specifications
| Type |
|
| Number of channels |
|
| Max. Voltage |
|
| Max. Current |
|
| Indicator type |
|
| Maximum power |
|
