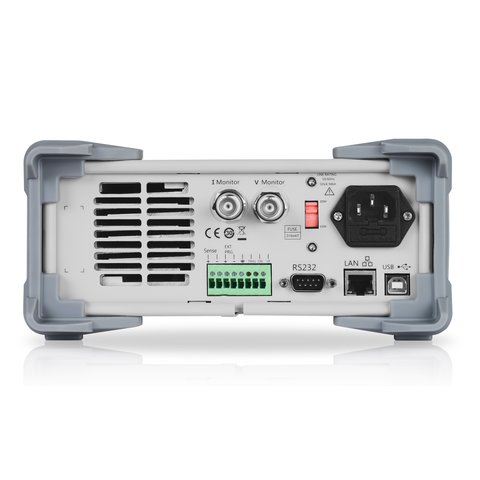

Programmable DC Electronic Load SIGLENT SDL1020X

id: 894371
7 kg Warranty: 36 month (s)
200 W DC programmable electronic load. Input voltage: 0~150 V. Input current: 0~30 A. Operating modes: CV, CC, CR, CP.
USD 689.00
Notify
when in stock
USD 689.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Delivery
Payment
Warranty
Overview

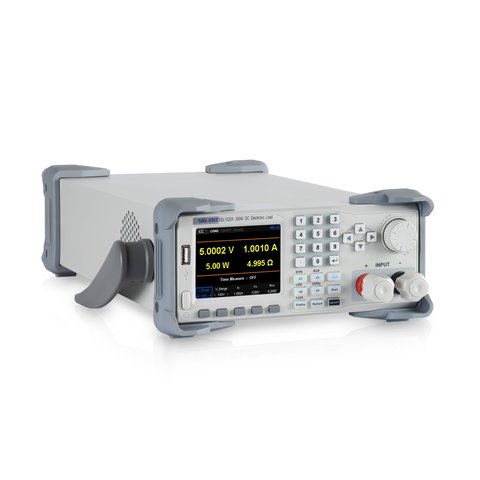

SIGLENT SDL1020X is a 200 W single-channel programmable DC electronic load, which has a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications.

Features

  • DC 150 V/30 A, total power up to 200 W.
  • 4 static modes / Dynamic mode: CC/CV/CR/CP.
  • CC Dynamic mode: Continuous, pulsed, toggled.
  • CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz, CV Dynamic mode: 0.5 Hz.
  • Measuring speed of voltage and current: up to 500 kHz.
  • Adjustable current rise time range: 0.001 A/us~2.5 A/us.
  • Min. readback resolution: 0.1 mV, 0.1 mA.
  • Short-circuit, Battery test, CR-LED mode, and factory test functions.
  • 4-wire SENSE compensation mode function.
  • List function supports editing as many as 100 steps.
  • Program function supports 50 groups of steps.
  • OCP, OVP, OPP, OTP and LRV protection.
  • External analog control.
  • Voltage, Current monitoring via 0-10 V.
  • 3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously.
  • Built-in RS232/USB/LAN communication interface, USB-GPIB module (optional).
  • Waveform trend chart and easy-to-use file storage and call functions.
  • Includes PC software: Supports SCPI, LabView driver.

Technical Specifications

Input Rating
(0~40 °C)
Input voltage
0~150 V
Input current 0~5 A 0~30 A
Input power 200 V
Minimum Operating
Voltage
0.15 V at 5 A 0.9 V at 30 A
CV Mode Range 0~36 V 0~150 V
Resolution 1 mV
Accuracy ± (0.05%+0.025%FS) 50 ppm / °C
CC Mode Range 0~5 A 0~30 A
Resolution 1 mA
Accuracy ± (0.05%+0.05%FS) 100 ppm / °C
CR Mode Range 0,03 Ω ~ 10 Ω
Resolution 1 mA / Vsense
Accuracy 0.01%+0.0008 s
CP Mode Range 200 W
Resolution 10 mW
Accuracy 0.1%+0.1% FS
Measuring Range
Readback Voltage Range 0~36 V 0~150 V
Resolution 0.1 mV 1 mV
Accuracy ± (0.025%+0.025% FS) 20 ppm / °C
Readback Current Range 0~5 A 0~30 A
Resolution 0,1 mA
Accuracy ± (0.05%+0.05% FS) 50 ppm / °C
Readback Power Range 200 W
Resolution 10 mW
Accuracy ± (0.1%+0.1% FS)
Readback Resistance Range 0.03 Ω ~10 KΩ
Accuracy 0.001 Ω
Over Power Protection 210 W
Over Current protection 5.1 A 31 A
Overvoltage Load Protection 41 V 155 V
Over Temperature Protection 85 °C
Battery Measurement

Battery Input: 0,5~150 V
Max. Capacity: 999 AH
Resolution: 0.1 mA; Time Range: 1 s ~ 24 h

Input Resistance >200 kΩ
Dimension 256 × 115 × 410 mm (W × H × D)
Weight 5.8 kg

User Manual

PDF  Download SIGLENT SDL1020X user manual.

Programming Guide

PDF  Download SIGLENT SDL1020X programming guide.

Data Sheet

PDF  Download SIGLENT SDL1020X data sheet.

Package Contents

  • Programmable DC Electronic Load SIGLENT SDL1020X — 1 pc.
  • Power Cord — 1 pc.
  • USB Cable — 1 pc.
  • User Manual — 1 pc.
  • Calibration Certificate — 1 pc.
