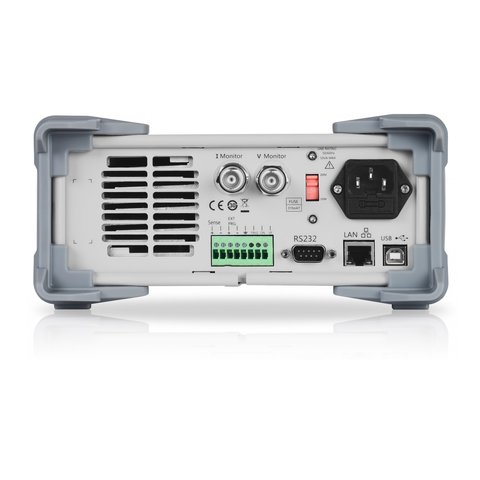

Programmable DC Electronic Load SIGLENT SDL1030X-E

id: 894372
8 kg Warranty: 36 month (s)
300 W DC programmable electronic load. Input voltage: 0~150 V. Input current: 0~30 A. Operating modes: CC/CV/CR/CP.
USD 871.00
Notify
when in stock
USD 871.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Delivery
Payment
Warranty
Overview

SIGLENT SDL1030X-E is a 300 W programmable DC electronic load. It's equipped with a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications.

SIGLENT SDL1030X-E model provides a resolution of 1 mV/1 mA and adjustable current rise time from 0.001 A/μs~2.5 A/μs. For remote communication and control, the SDL series includes RS232/USB/LAN interface types.

Programmable DC electronic load SDL1030X-E may be used in power, battery/handheld device design, industry, LED lighting, automotive electronics, and aerospace.

Features

  • SDL1030X-E (Single channel): DC 150 V/30 A, total power up to 300 W.
  • 4 static modes / Dynamic mode: CC/CV/CR/CP.
  • CC Dynamic mode: continuous, pulsed, toggled.
  • CC Dynamic mode: 25 kHz, CP Dynamic mode: 12.5 kHz.
  • CV Dynamic mode: 0.5 Hz.
  • Measuring speed of voltage and current: up to 500 kHz.
  • Adjustable current rise time range: 0.001 A/us~2.5 A/us.
  • Min. readback resolution: 1 mV, 1 mA.
  • Short-circuit, Battery test, CR-LED mode, and factory test functions.
  • 4-wire SENSE compensation mode function.
  • List function supports editing as many as 100 steps.
  • Program function supports 50 groups of steps.
  • OCP, OVP, OPP, OTP and LRV protection.
  • External analog control.
  • Voltage, Current monitoring via 0-10 V.
  • 3.5-inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously.
  • Built-in RS232/USB/LAN communication interface, USB GPIB module (optional).
  • Waveform trend chart and ease-to-use file storage and call functions.
  • Includes PC software: supports SCPI, LabView driver.

Technical Specifications

Model SDL1030X SDL1030X-E
Input Rating
(0~40 °C)
Input voltage 0~150 V
Input current 0~5 A 0~30 A 0~5 A 0~30 A
Input power 300 W
Minimum Operating
Voltage (DC)
0.15 V at 5 A 0.9 V at 30 A 0.15 V at 5 A 0.9 V at 30 A
CV Mode Range 0~36 V 0~150 V 0~36 V 0~150 V
Resolution 1 mV 1 mV
Accuracy ± (0.05%+0.025%FS) 50 ppm/℃ ± (0.05%+0.025%FS) 50 ppm/℃
CC Mode Range 0~5 A 0~30 A 0~5 A 0~30 A
Resolution 1 mA 1 mA
Accuracy*2 ± (0.05%+0.05%FS) 100 ppm/℃ ± (0.1%+0.1%FS) 100 ppm/℃
CR Mode *1 Range 0.03 Ω~10 kΩ
Resolution 1 mA/Vsense
Accuracy 0.01%+0.0008 s
CP Mode *3 Range 300 W
Resolution 10 mW
Accuracy 0.1%+0.1% FS
Dynamic Mode
CC Mode
T1&T2 20 us~999 S/Res: 1 uS 20 us~999 S/Res: 1 uS
Accuracy 20 us~200 ms/Acc: 5 us, 200 ms ~999 s/Acc: 5 ms 20 us~200 ms/Acc: 5 us, 200 ms ~999 s/Acc: 5 ms
Current Slew Rate *4 0.001~0.5 A/us 0.001~2.5 A/us 0.001~0.5 A/us 0.001~2.5 A/us
Minimum Rise Time ≈10 uS ≈12 uS ≈10 uS ≈12 uS
Measuring Range
Readback Voltage Range  0~36 V 0~150 V 0~36 V 0~150 V
Resolution 0.1 mV 1 mV 1 mV
Accuracy ± (0.025%+0.025% FS) 20 ppm/℃ ± (0.05%+0.02% FS) 20 ppm/℃
Readback Current Range 0~5 A 0~30 A 0~5 A 0~30 A
Resolution 0.1 mA 1 mA
Accuracy ± (0.05%+0.05% FS) 50 ppm/℃ ± (0.05%+0.05% FS) 50 ppm/℃
Readback Power Range 300 W
Resolution 10 mW
Accuracy ± (0.1%+0.1% FS)
Readback Resistance Range 0.03 Ω ~10 KΩ
Resolution 0.001 Ω
Protection Range
OPP 310 W
OCP 5.1 A 31 A 5.1 A 31 A
OVP 41 V 155 V 41 V 155 V
OTP 95 ℃
Battery Measurement Battery Input: 0.5~150 V;
Max Measurement: Capacity=999 AH
Resolution=0.1 mA;Time Range=1 s~24 H
Input Resistance >200 kΩ
Dimensions 256 × 115 × 410 mm (W × H × D)
Weight 5.8 kg

*2 Current Slew rate >0.2 A/us.
*3 The input voltage/current value should not be smaller than 10% of the full scale.
*4 Current slew rate: rising slew rate for 10%~90% of the current (0-maximum current).

Quick Start

PDF  Download SIGLENT SDL1030X-E quick start.

Programming Guide

PDF  Download SIGLENT SDL1030X-E programming guide.

Data Sheet

PDF  Download SIGLENT SDL1030X-E data sheet.

Package Contents

  • Programmable DC Electronic Load SIGLENT SDL1030X-E — 1 pc.
  • Power Cord — 1 pc.
  • USB Cable — 1 pc.
  • Quick Start — 1 pc.
  • Calibration Certificate — 1 pc.
