Programmable high-precision linear DC power supply with 3 output channels and a 220 W max. output power. 4.3-inch TFT LCD.
Availability in stock:
HK
ID: 862796 10 kg 110, 220

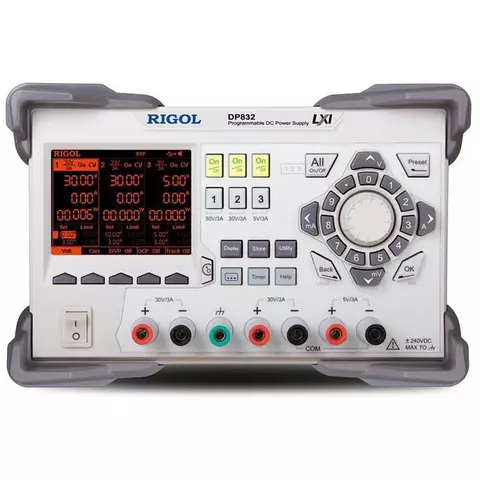

Programmable DC Power Supply RIGOL DP832
id: 841692
Programmable DC Power Supply RIGOL DP832
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 472.00
Overview
14.5 kg 110, 220 V Warranty: 36 months
3-channel PSU for DC voltage power supply in a range from 0 to 30 V and current in a range from 0 to 3 A. Read more
USD 472.00
Buy wholesale and save
You may also like
Description
Rigol DP832 is a 3-channel programmable DC power supply with high accuracy of setting and maintaining voltage and current parameters, as well as low ripple and noise level. Rigol DP832A Power Supply may be used for output parameters control with the possibility of data storage for further analysis. User can program the output parameters, delay and synchronization conditions. The parameters are displayed in real time on the 3.5-inch screen in digital, analogue and graphical forms. The power supply unit meets the safety requirements and has current, voltage and temperature protection. The device will be useful in a repair workshop, in industry, in a laboratory etc.
Features
- 3 channels.
- Fast transient responce time: < 50 μs.
- 3.5 inch TFT display.
- Fan cooling method.
- Connectivity including USB Host & Device, LAN, and Digital IO (optional).
- Standards: CE, cTUVus, ISO9001:2008, ISO14001:2004.
Manuals
Download Rigol DP832 User's Guide.
Download Rigol DP832 Quick Guide.
Download Rigol DP832 Programming Guide.
Software
Download UltraSigma communication software.
Technical Specifications
| Channels | 3 | |||
| DC Output (0℃ to 40℃) | Voltage/current | CH1: 0 to 30V / 0 to 3A CH2: 0 to 30V / 0 to 3A CH3: 0 to 5V / 0 to 3A |
||
| OVP/OCP | CH1: 10 mV to 33 V / 1 mA to 3.3 A CH2: 10 mV to 33 V / 1 mA to 3.3 A CH3: 10 mV to 5.5 V / 1 mA to 3.3 A |
|||
| Load Regulation Rate ±(Output Percentage + Offset) |
Voltage | <0.01%+2 mV | ||
| Current | <0.01%+250 μA | |||
| Linear Regulation Rate ±(Output Percentage + Offset) |
Voltage | <0.01%+2 mV | ||
| Current | <0.01%+250 μA | |||
| Ripples and Noise (20 Hz to 20 MHz) | Normal Mode Voltage | <350 μVrms/2 mVpp | ||
| Normal Mode Current | <2 mArms | |||
| Common Mode Current | <1.5 μArms | |||
| Annual Accuracy (25℃±5℃) ±(Output Percentage + Offset) |
Programming | Voltage | 0.05% + 10 mV | |
| Current | 0.2% + 10 mA | |||
| Readback | Voltage | 0.05% + 5 mV | ||
| Current | 0.15%+ 5 mA | |||
| Resolution |
Programming | Voltage | 10 mV with high-resolution option: 1 mV |
|
| Current | 1 mA | |||
| Readback | Voltage | 10 mV with high-resolution option: 1 mV |
||
| Current | 1 mA with high-resolution option: 0.1 mA |
|||
| Display | Voltage | 10 mV with high-resolution option: 1 mV |
||
| Current | 10 mA with high-resolution option: 1 mA |
|||
| Command Processing Time | <100 ms | |||
| Temperature Coefficient per℃ (Output Percentage + Offset) |
Voltage | CH1/CH2: 0.01%+5 mV CH3: 0.01%+2 mV |
||
| Current | 0.01%+2 mA | |||
| Stability ±(Output Percentage + Offset) | Voltage | CH1/CH2: 0.02%+2 mV CH3: 0.01%+1 mV |
||
| Current | 0.05%+2 mA | |||
| Voltage Programming Control Speed (1% within the total variation range) |
Rise | Full Load | CH1/CH2: <50 ms CH3: <11 ms |
|
| No Load | CH1/CH2: <25 ms CH3: <10 ms |
|||
| Fall | Full Load | CH1/CH2: <30 ms CH3: <13 ms |
||
| No Load | CH1/CH2: <400 ms CH3: <200 ms |
|||
| OVP/OCP | Accuracy ±(Output Percentage + Offset) |
0.5%+0.5 V/0.5%+0.5 A | ||
| Activation Time | 1.5 ms (OVP≥3 V) <10 ms (OVP<3 V and OCP) |
|||
| Interfaces | USB Device, USB Host, LAN (option), RS232 (option), Digital IO (option) | |||
| Power |
AC Input (50 Hz to 60 Hz) 100 V AC+10%, 115 V AC+10% 230 V AC+10% (maximum 250 V AC) |
|||
| Dimensions | 239 × 157 × 418 mm | |||
| Weight | 9.0 kg | |||
Package Contents
- Rigol DP832 Programmable DC Power Supply – 1 pc.
- Power cord – 1 pc.
- USB data cable – 1 pc.
- Spare fuse (5*25 250 V 6.3 A) – 2 pcs.
- Spare fuse (5*25 250 V 3.15 A) – 1 pc.
- Digital I/O interface connector – 1 pc.
Specifications
| Type |
|
| Number of channels |
|
| Max. Voltage |
|
| Max. Current |
|
| Indicator type |
|
| Maximum power |
|
