DC Power Supply SIGLENT SPD3303X

id: 862796
Bestseller
9 kg 110, 220 V
Availability in stock: HK
Warranty: 36 month (s)
Programmable high-precision linear DC power supply with 3 output channels and a 220 W max. output power. 4.3-inch TFT LCD.
USD 539.00
USD 475.00
You save USD 64.00
Add to cart
USD 539.00
USD 475.00
You save USD 64.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

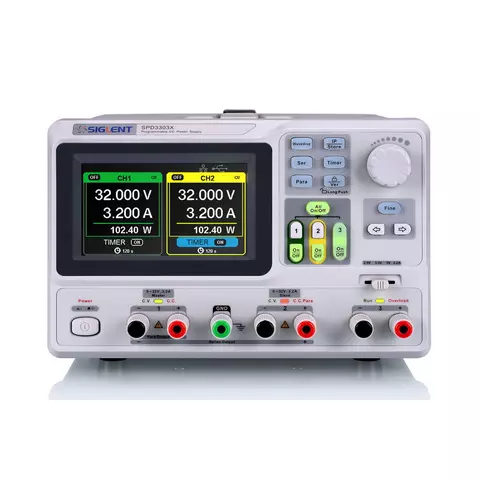

Siglent SPD3303X is a programmable high-precision linear DC power supply with 3 output channels and a 220 W max. output power.

Features

  • 3 independent controlled and isolated outputs
    • 32 V / 3.2 A × 2
    • 2.5 V / 3.3 V / 5 V / 3.2 A × 1
  • 5 digits voltage, 4 digits current display, minimum resolution: 1 mV / 1 mA
  • 3 output modes: independent, series and parallel connect
  • 4.3-inch TFT-LCD display with 480×272 resolution
  • 100 V / 120 V / 220 V / 230 V compatible design
  • Intelligent temperature-controlled fan
  • Clear graphical interface, with the waveform display function
  • Save/recall 5 group system specifications, supports data storage expansion

Technical Specifications

Channels CH1: 0 ~ 32 V, 0 ~ 3.2 A
CH2: 0 ~ 32 V, 0 ~ 3.2 A
CH3: 2.5/3.3/5.0 V, 3.2 A
Max output power 220 W
Resolution 1 mV / 1 mA
Voltage/Current display digits 4.3-inch TFT-LCD 480×272
5 digits voltage and 4 digits current display
Ripple noise ≤1 mVrms (5 Hz - 1 MHz)
Standard interfaces LAN, USB
Dimensions 225 × 143 × 278 mm
Weight 8 kg

Package Contents

  • Siglent SPD3303X power supply - 1 pc.
  • Test/supply leads - 1 pc.
  • USB cable - 1 pc.
  • Power cable - 1 pc.
Specifications
Type
  • transformer
  • programmable
Number of channels
  • three-channel
Max. Current
  • up to 3 A
Max. Voltage
  • up to 32 V
Indicator type
  • 4.3" color LCD display
