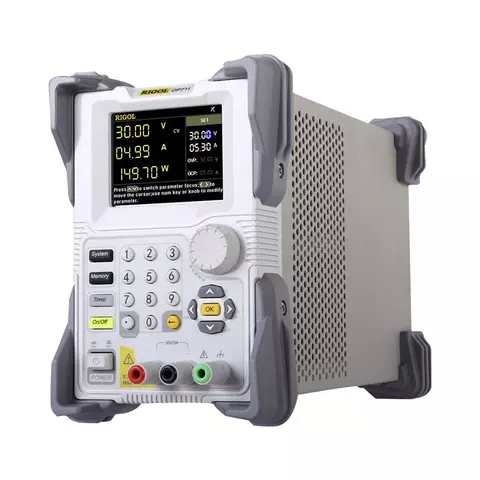

Programmable Power Supply RIGOL DP711

id: 862737
7.9 kg 110, 220 V Warranty: 36 month (s)
Single channel power supply designed for supplying up to 30 V and 5 A DC. Low ripple and noise, 3.5" color LCD, power: 150 W.
USD 299.00
Notify
when in stock
USD 299.00
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

RIGOL DP711 is a single-channel programmable power supply with low ripple & noise levels. RIGOL DP711 ensures power supply of electronic devices and circuits with DC voltage in a range from 0 to 30 V and with current in a range from 0 to 5 A. The device supports multi unit output synchronization by external trigger as well as series/parallel connection. The parameters are displayed in real time on the 3.5-inch TFT color LCD. Parameters adjustment is carried out using the buttons and a rotary regulator on the front panel. RIGOL DP711 Programmable Power Supply can be connected to a PC using RS232 interface. The device will be useful in a repair workshop, in industry, in a laboratory etc.

Features

  • 3.5 inch TFT color LCD
  • Series/parallel connection support
  • Multi unit output synchronization by Ext trigger
  • Resolution: 1 mV/1 mA (opt.)
  • Low Ripple & Noise: <500 μVrms / 3 mVpp
  • OVP, OCP and OTP
  • Timer output (opt.)
  • RS232 output

Application

  • Education in universities and technical colleges
  • Manufacturing and production tests
  • Off-line repair
  • Electronic engineering

Technical Specifications

Channels 1
Output Voltage / Current  0 V to 30 V/0 A to 5 A
Load Regulation Voltage <0.01% + 2 mV
Current <0.01% + 2 mA
Line Regulation Voltage <0.01% + 2 mV
Current <0.01% + 2 mA
Ripple and Noise (20 Hz to 20 MHz) Voltage <500 μVrms / 3 mVpp
Current <2 mArms
Annual Accuracy (25° ±5°C ) Programming  Voltage 0.05% + 20 mV
Current  0.2% + 10 mA
Readback Voltage 0.05% + 20 mV
Current 0.2% + 20 mA
Resolution  Programming Voltage Standard: 10 mV (HIRES-DP700 high resolution option installed: 1 mV)
Current  Standard: 10 mA (HIRES-DP700 high resolution option installed: 1 mA)
Readback Voltage Standard: 10 mV (HIRES-DP700 high resolution option installed: 1 mV)
Current  Standard: 10 mA (HIRES-DP700 high resolution option installed: 1 mA)
Display Voltage Standard: 10 mV (HIRES-DP700 high resolution option installed: 1 mV)
Current  Standard: 10 mA (HIRES-DP700 high resolution option installed: 1 mA)
Transient Response Time Less than 50 μs
Command Processing Time <100 ms
Temperature Coefficient Voltage 0.01% + 2 mV
Current 0.02% + 3 mA
Stability Voltage 0.02% + 2 mV
Current 0.1% + 3 mA
OVP/OCP Range 0.01 V to 33 V/0.01 A to 5.5 A
Accuracy  0.5% + 0.5 V/0.5% + 0.5 A
Interface RS232
Dimensions (W × H × D) 140 × 202 × 332 mm
Weight 6.9 kg

Package Contents

  • RIGOL DP711 Programmable Power Supply — 1 pc.
  • Power cable — 1 pc.
Specifications
Type
  • transformer
  • programmable
Number of channels
  • single-channel
Max. Voltage
  • up to 30 V
Max. Current
  • up to 5 A
Indicator type
  • 3.5" color LCD
