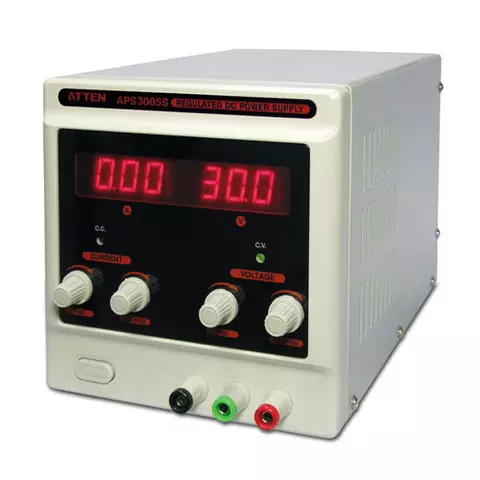

Regulated Power Supply Unit ATTEN APS3005S
id: 818794
Regulated Power Supply Unit ATTEN APS3005S
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
5 kg 220 V Warranty: 6 months
Constant current (0-5A) and voltage (0-30V) supply unit with one adjustable channel. Read more
Discontinued
Description
ATTEN APS3005S supplies DC current (0-5A) and voltage (0-30V) and is ideal for educational institutions and research labs. ATTEN APS3005S has 1 adjustable channel.
Features
- 1 adjustable channel
- Low ripple and noise level
- Overload and reverse polarity protection
ATTEN APS3003S and APS3005S Regulated Power Supply Unit Comparative Specifications
| Model | APS3003S | APS3005S |
|---|---|---|
| Rated output voltage | 0-30V (Adjustable) | |
| Rated output current | 0-3 A (Adjustable) | 0-5 A (Adjustable) |
| AC input voltage | AC 110V/220V, 60Hz/50Hz | |
| Display precision | ±0.5%rdg + 2d | |
| Ripple and noise | ≤3mV (rms) | |
| Load stability | ≤0.3% | |
| Display resolution | voltage 0.1V and current 0.01A | |
| Protection | current limited lower voltage, short circuit protection and over-temperature protection. |
|
| Insulation Resistance | ≥ 7MΩ | |
| Cooling method | Strong wind cooling |
|
| Dimensions, mm | 260 × 150 × 160 | |
Specifications
| Type |
|
| Number of channels |
|
| Max. Voltage |
|
| Max. Current |
|
| Indicator type |
|
