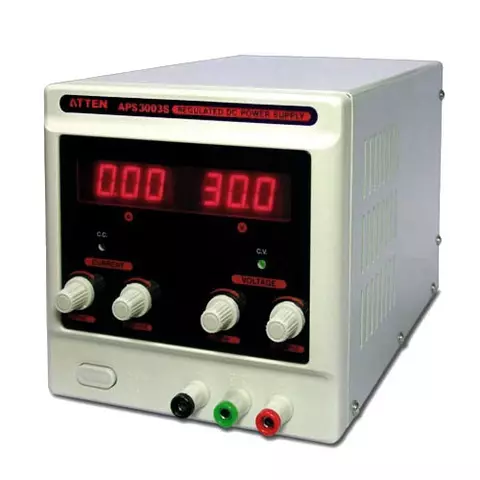

Regulated Power Supply Unit ATTEN APS3003S

id: 818793
Regulated Power Supply Unit ATTEN APS3003S
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 58.00
Notify
when in stock
Overview
6 kg 220 V Warranty: 6 months
Constant current (0-3A) and voltage (0-30V) supply unit with one adjustable channel.
USD 58.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 58.00
Notify
when in stock
Impossible to estimate the shipping cost

You may also like

DC Power Supply SIGLENT SPD3303C
Bestseller
Add to wishlist
DC Power Supply SIGLENT SPD3303C
USD 249.00
USD 224.10
Add to wishlist
Add to cart
High-precision programmable linear DC power supply.
Bestseller
Availability in stock: HK
Shipping cost
ID: 855031 10 kg 110, 220
Description

ATTEN APS3003S supplies DC current (0-3A) and voltage (0-30V) and is ideal for educational institutions and research labs. ATTEN APS3003S has 1 adjustable channel.

ATTEN APS3003S Regulated Power Supply Unit Features

  • 1 adjustable channel
  • Low ripple and noise level
  • Overload and reverse polarity protection

ATTEN APS3003S and APS3005S Regulated Power Supply Unit Comparative Specifications

Model APS3003S APS3005S
Rated output voltage 0-30V (Adjustable)
Rated output current 0-3 A (Adjustable) 0-5 A (Adjustable)
AC input voltage AC 110V/220V, 60Hz/50Hz
Display precision ±0.5%rdg + 2d
Ripple and noise ≤3mV (rms)
Load stability ≤0.3%
Display resolution voltage 0.1V and current 0.01A
Protection current limited lower voltage,
short circuit protection and
over-temperature protection.
Insulation Resistance ≥ 7MΩ
Cooling method Strong wind cooling
Dimensions, mm 260 × 150 × 160
Read more
Description

ATTEN APS3003S supplies DC current (0-3A) and voltage (0-30V) and is ideal for educational institutions and research labs. ATTEN APS3003S has 1 adjustable channel.

ATTEN APS3003S Regulated Power Supply Unit Features

  • 1 adjustable channel
  • Low ripple and noise level
  • Overload and reverse polarity protection

ATTEN APS3003S and APS3005S Regulated Power Supply Unit Comparative Specifications

Model APS3003S APS3005S
Rated output voltage 0-30V (Adjustable)
Rated output current 0-3 A (Adjustable) 0-5 A (Adjustable)
AC input voltage AC 110V/220V, 60Hz/50Hz
Display precision ±0.5%rdg + 2d
Ripple and noise ≤3mV (rms)
Load stability ≤0.3%
Display resolution voltage 0.1V and current 0.01A
Protection current limited lower voltage,
short circuit protection and
over-temperature protection.
Insulation Resistance ≥ 7MΩ
Cooling method Strong wind cooling
Dimensions, mm 260 × 150 × 160
Specifications
Type
  • transformer
Number of channels
  • single-channel
Max. Voltage
  • up to 30 V
Max. Current
  • up to 3 A
Indicator type
  • LED indicators
