Hybrid BGA Rework System Scotle IR360 PRO V3
id: 858879
Hybrid BGA Rework System Scotle IR360 PRO V3
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview

28 kg 220 V Warranty: 6 months
Multipurpose 3-in1 soldering station, a combination of a hot air rework station, an infrared rework station and a soldering iron. Capable of reworking of SMD, BGA, CBGA, CCGA, CSP, QFN, MLF, PGA and other components.
You may also like
Description

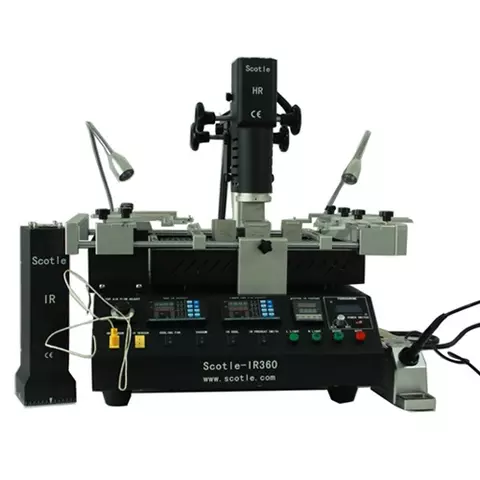

Scotle IR360 PRO V3 Hybrid BGA Rework System is a powerful rework station based on hybrid heating technology which combines infrared and hot air heating technologies, as well as contact soldering for reworking of SMD, BGA, CBGA, CCGA, CSP, QFN, MLF, PGA and other components.
Applications
- Repairing PS3 and Xbox 360 game consoles
- Repairing computers, cell phones, industrial computers, switches, graphics cards, shielding enclosures, CPU's seats, components slots and other large circuit boards with large chips up to 65x65 mm
- Repairing CBGA, CCGA, CSP, QFN, MLF, PGA and μBGAs
- Repairing small resistors, capacitors and so on
Features
Read more
Description
Scotle IR360 PRO V3 Hybrid BGA Rework System is a powerful rework station based on hybrid heating technology which combines infrared and hot air heating technologies, as well as contact soldering for reworking of SMD, BGA, CBGA, CCGA, CSP, QFN, MLF, PGA and other components.
Applications
- Repairing PS3 and Xbox 360 game consoles
- Repairing computers, cell phones, industrial computers, switches, graphics cards, shielding enclosures, CPU's seats, components slots and other large circuit boards with large chips up to 65x65 mm
- Repairing CBGA, CCGA, CSP, QFN, MLF, PGA and μBGAs
- Repairing small resistors, capacitors and so on
Features
- 3 independent temperature zones, top is dark infrared (you can change it into hot air head easily as you like ), lower is hot air heater and bottom is large infrared pre-heater.
- Infrared ceramic preheating system.
- High-power cross-flow cooling system to accelerate the preheating zone cooling.
- Using high-tech temperature control program.
- Can be easily used in leaded and lead free rework.
- Dual LED light design, more convenient to observe the reworking process.
Technical Specifications
IR Unit | |
---|---|
Total Power | 3530 W |
Voltage | AC 220 V |
Top heater size | 80×80 mm |
Bottom heater size | 340×240 mm |
Top IR heater consumption | 450 W |
Lower hot air consumption | 800 W |
Soldering iron | 80 W |
Bottom IR consumption | 2200 W |
Hot Air Unit | |
Total power | 3880 W |
Voltage | AC 220 V |
Top heater size | Decided by air nozzle |
Bottom heater size | 340×240 mm |
Top hot heater consumption | 800 W |
Lower hot air consumption | 800 W |
Bottom IR consumption | 2200 W |
Soldering iron | 80 W |
Soldering Iron | |
Input voltage | AC 220 V ±10% |
Output voltage | 24 V AC |
Power | 80 W |
Temperature range | 150℃~450℃ |
Package Contents
- Scotle IR360 PRO V3 BGA Rework System main unit — 1 pc.
- Soldering iron stand — 1 pc.
- Hot air nozzles (55×55 mm, 41×41 mm, 38×38 mm, 34×34 mm, 31×31 mm) — 5 pcs.
- K-type thermcouple — 1 pc.
- Red brush — 1 pc.
- Vacuum suction pen with 2 suction pads — 1 pc.
- User manual — 1 pc.
