SIGLENT SHA851A Spectrum and Network Analyzer
Overview
Description

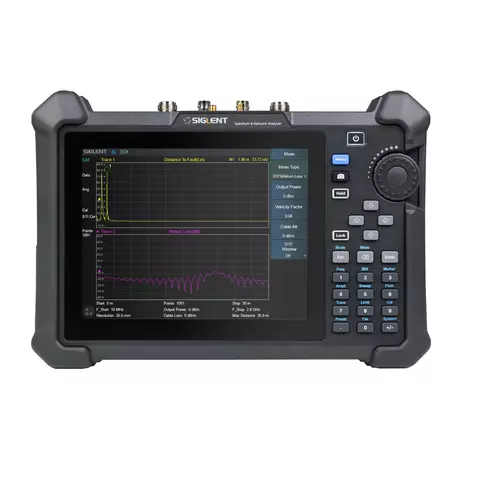

SIGLENT SHA851A is a versatile handheld spectrum analyzer and cable-and-antenna tester with a frequency range of 9 kHz to 3.6 GHz. Designed with field engineers in mind, the SHA851A comes equipped with an 8.4-inch (21.3 cm) 800×600 pixels large touchscreen display and a convenient knob-and-key operation.
SIGLENT SHA851A provides automatic measurements and has various operation modes, making it highly suitable for tasks such as broadcast monitoring, channel power scanning, wireless interference detection, power monitoring, and electromagnetic compatibility testing. It also includes a built-in amplifier and independent signal source for added flexibility.
The cable-and-antenna tester functionality of the SIGLENT SHA851A is equipped with features like built-in DC voltage bias and a 1-path-2-port vector network analysis capability. This allows it to perform tasks such as TDR measurements, VSWR analysis, port matching debugging, insertion loss measurement, tower amplifier debugging, cable fault location, and Smith chart analysis.
SIGLENT SHA851A comes with a standard bag and hand strap to either carry it over the shoulder or hold it securely by hand and has a working time of up to 4 hours on a single battery. For enhanced functionality, it can also be equipped with GPS and directional antenna options, making it a dependable tool for outdoor applications.
Features
- Spectrum analyzer frequency range: 9 kHz - 3.6 GHz;
- 3 modes: standard SA and CAT modes and an optional VNA mode;
- Cable and antenna test frequency range: 100 kHz - 3.6 GHz;
- Channel power, ACPR, harmonics, and TOI measurement option;
- Standard preamplifier;
- 8.4-inch touch screen;
- 4-hour battery working time;
- Options:
- Full bandwidth source;
- Analog and digital signal modulation analysis mode;
- Advanced measurement kit with waterfall chart;
- GPS receiver and GPS logging
Technical Specifications
| Model | SHA851A | SHA852A |
|---|---|---|
| Spectrum Analyzer | ||
| Frequency range | 9 kHz - 3.6 GHz | 9 kHz - 7.5 GHz |
| Displayed average noise level | -165 dBm/Hz | |
| Phase noise (1 GHz, typical) | -104 dBc/Hz @ 10 kHz offset | |
| Preamplifier | Standard | |
| Cable and Antenna Analyzer | ||
| Frequency range | 100 kHz - 3.6 GHz | 100 kHz - 7.5 GHz |
| Vector Network Analyzer (Optional) | ||
| Frequency range | 100 kHz - 3.6 GHz | 100 kHz - 7.5 GHz |
| Dynamic range | 100 kHz - 1 MHz: 102 dB, 108 dB (typ.) | 100 kHz - 1 MHz: 102 dB, 108 dB (typ.) |
| 1 MHz - 1.5 GHz: 109 dB, 114 dB (typ.) | 1 MHz - 1.5 GHz: 109 dB, 114 dB (typ.) | |
| 1.5 GHz - 3.6 GHz: 107 dB, 112 dB (typ.) | 1.5 GHz - 3.6 GHz: 107 dB, 112 dB (typ.) | |
| 3.6 GHz - 6.5 GHz: 105 dB, 109 dB (typ.) | ||
| 6.5 GHz - 7.5 GHz: 102 dB, 107 dB (typ.) | ||
| Additional functions | Advanced measurement kit, analog modulation analysis, digital modulation analysis, GPS location, independent source, DC bias out | |
| Modulation types (optional) | AM, FM, PM, ASK, FSK, MSK, PSK, DPSK, QAM | |
| Communication interface | LAN, USB Device, USB Host (USB-GPIB) | |
| Display | TFT LCD, 800 × 600 pixels, 8.4-inch multi-touch screen | |
| Battery life | 4 hrs | |
| Dimensions | 33 × 23 × 10 cm | |
| Weight | 3.175 kg | |
User Manual
Download SIGLENT SHA850A Series Quick Guide.
Data Sheet
Download SIGLENT SHA850A Data Sheet.
