Signal Generator FNIRSI SG-003A

id: 902550
Signal Generator FNIRSI SG-003A
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 47.00
Add to cart
Overview
Bestseller
0.5 kg
Availability in stock: HK
Warranty: 6 months
Compact 1-channel digital signal generator in a protective silicone case. Generates square waveforms with a frequency range of 0.001 Hz - 180 kHz.
USD 47.00
Add to cart
Add to wishlist
Compare
Compare
USD 47.00
Add to cart
Impossible to estimate the shipping cost
Description

FNIRSI SG-003A is a pocket-sized single-channel digital signal generator that is supplied in a protective silicone case. The device generates voltage and current signals, simulating signals from sensors, control systems, and PWM signals. This signal generator is mainly used for debugging of industrial field PLC, process instrumentation, electric valve, etc.

Features

  • An easy-to-use device with a user-friendly interface.
  • Pocket-sized and weight is only 123 g.
  • Auto power off function.
  • Low battery indicator.
  • Overcurrent protection.
  • Backlight buttons and display.
  • Built-in 3000 mAh battery; charged by USB-C.

Technical Specifications

Read more
Description

FNIRSI SG-003A is a pocket-sized single-channel digital signal generator that is supplied in a protective silicone case. The device generates voltage and current signals, simulating signals from sensors, control systems, and PWM signals. This signal generator is mainly used for debugging of industrial field PLC, process instrumentation, electric valve, etc.

Features

  • An easy-to-use device with a user-friendly interface.
  • Pocket-sized and weight is only 123 g.
  • Auto power off function.
  • Low battery indicator.
  • Overcurrent protection.
  • Backlight buttons and display.
  • Built-in 3000 mAh battery; charged by USB-C.

Technical Specifications

Channels 1
Frequency range 0.001 Hz-180 kHz
Waveform square
Active current output 0-24 mA, accuracy ± (0,1%+0,005), resolution 0.01 mA, maximum load: 750 Ω
Passive current output 0-24 mA, accuracy ± (0,1%+0,005), resolution 0.01 mA, external power supply: 0-30 V
Voltage output 0-15 V, accuracy ± (0,1%+0,005), resolution 0.01 V
PWM output (frequency) 0-20 kHz, 45 kHz, 90 kHz, 180 kHz, accuracy ± 2%, resolution 1 Hz
PWM output (operational cycle) 0-100%, accuracy ± 2%, resolution 1%
Current input measurement 0-24 mA, accuracy ± (0,1%+0,05), resolution 0.01 mA
Voltage input measurement 0-30 V, accuracy ± (0,1%+0,05), resolution 0.01 V
General Specifications
Display 2-inch LCD, 320×240
Interface USB Type-C (5 V)
Power built-in 3.7V lithium battery with 3000 mAh capacity
Continuous battery life around 8 hours
Working temperature -0℃ ~ 50℃
Dimensions 92 mm × 72 mm × 30 mm
Net weight 123 g
Gross weight 160 g

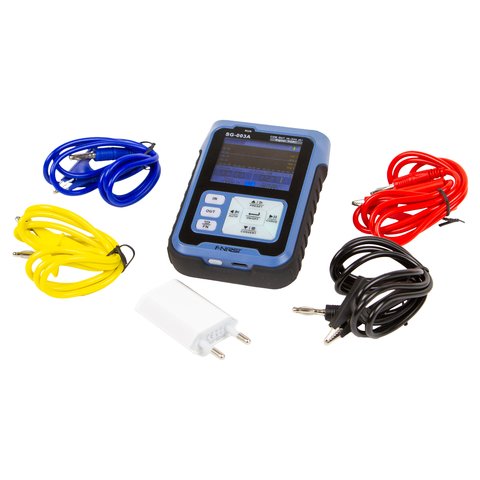

Package Contents

  • Signal Generator FNIRSI SG-003A — 1 pc.
  • Storage Bag — 1 pc.
  • Power Cable — 1 pc.
  • USB Cable — 1 pc.
  • Alligator Clips — 1 set
Specifications
Channels
  • single channel
Max. signal frequency
  • 180 kHz
