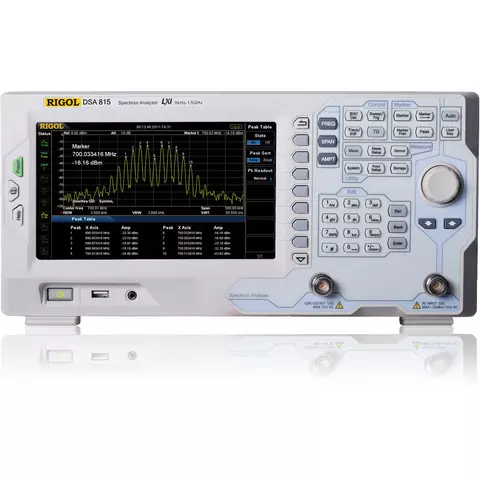

Spectrum Analyzer RIGOL DSA815

id: 834366
Spectrum Analyzer RIGOL DSA815
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 1419.00

Overview

8 kg 110, 220 V Warranty: 36 months
Compact size, lightweight and economic spectrum analyzer with 9 kHz to 1.5 GHz frequency range. Read more
USD 1419.00
USD 1419.00
Impossible to estimate the shipping cost

Description

RIGOL DSA815 digital spectrum analyzer is the part of DSA800 series of spectrum analyzers which are small, lightweight and cost-effective. RIGOL DSA815 is equipped with easy-to-operate numeric keypad, high-resolution color LCD display and various remote communication interfaces. RIGOL DSA800 series of spectrum analyzers, and DSA815 model in particular can be widely used in various fields, such as education, company research and development as well as industrial manufacture.

RIGOL DSA815 Spectrum Analyzer Features

  • 9 kHz to 1.5 GHz frequency range
  • Typical -135 dBm displayed average noise level (DANL)
  • Total amplitude uncertainty &lt 1.5 dB
  • 100 Hz minimum resolution bandwidth (RBW)
  • EMI filter & Quasi-Peak detector kit (optional)
  • Preamplifier and AM/FM demodulation function
  • 8 inch high-definition (800×480 pixels) LCD
  • Interfaces: LAN, USB host, USB device and GPIB (optional)
  • Compact size, lightweight

RIGOL DSA815 Spectrum Analyzer Technical Specifications

Frequency

Frequency Range 9 kHz to 1.5 GHz
Internal Frequency Reference
Reference Frequency 10 MHz
Aging Rate &lt2 ppm/year
Temperature Stability 20 ºC to 30 ºC &lt2 ppm
Frequency Readout Accuracy
Marker Resolution span / (sweep points-1)
Marker Uncertainty ± (frequency indication × frequency reference uncertainty +1%
× span +10% × resolution bandwidth + marker resolution)
Marker Frequency Counter
Resolution 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz
Uncertainty ± (frequency indication × frequency reference uncertainty + counter resolution)
Frequency Span
Range 0 Hz, 100 Hz to 1.5 GHz
Uncertainty ± span / (sweep points-1)
SSB Phase Noise
Carrier Offset 10 kHz <-88 dBc / Hz typ.
Bandwidths
Resolution Bandwidth (-3 dB) 100 Hz to 1 MHz, in 1-3-10 sequence
Resolution Bandwidth (-6 dB) 200 Hz, 9 kHz, 120 kHz
RBW Uncertainty <5%, nominal
Resolution Filter Shape Factor (60 dB: 3 dB) <5, nominal
Video Bandwidth (-3 dB) 1 Hz to 3 MHz, in 1-3-10 sequence

Amplitude

Measurement Range
Range DANL to +20 dBm
Maximum Rated Input Level
DC Voltage 50 V
CW RF Power RF attenuation ≥ 30 dB 20 dBm (100 mW)
Max. Damage Level 30 dBm (1W)
Displayed Average Noise Level (DANL)
0 dB RF attenuation, RBW=VBW=100Hz, sample detector, trace average ≥ 50, normalize to 1 Hz
DANL (Preamplifier Off) 100 kHz to 1 MHz <-90 dBm - 110 dBm
1 MHz to 1.5 GHz <-110 dBm +6 × (f/MHz)dB, typ. -115 dBm
DANL (Preamplifier Off) 100 kHz to 1 MHz
1 MHz to 1.5 GHz <-130 dBm + 6 × (f/MHz)dB, typ. -135 dBm
Level Display
Logarithmic Level Axis 1 dB to 200 dB
Linear Level Axis 0 to Reference Level
Number of Display Points Normal 601
Number of Traces 3 + math trace
Trace Detectors Normal, Positive-peak, Negative-peak, Sample, RMS, Voltage Average, Quasi-peak
Trace Functions Clear Write, Max Hold, Min Hold, Average, View, Blank
Units of Level Axis dBm, dBmV, dBµV, nV, µV, mV, V, nW, µW, mW, W
Frequency Response
10 dB RF attenuation, relative to 50 MHz, 20 ºC to 30 ºC
Frequency Response
(Preamplifier Off)
100 kHz to 1.5 GHz <0.7 dB
Frequency Response
(Preamplifier On)
1 MHz to 1.5 GHz <1.0 dB
Input Attenuation Switching Uncertainty
Setting Range 0 to 30 dB, in 1 dB step
Switching Uncertainty fc=50 MHz, relative to 10 dB, 20 ºC to 30 ºC < 0.5 dB
Absolute Amplitude Uncertainty
Uncertainty fc=50 MHz, peak detector, preamplifier off,
10 dB RF attenuation, input signal = -10 dBm, 20 ºC to 30 ºC
± 0.4 dB
Reference Level
Range - 100 dBm to + 20 dBm, in 1 dB step
Resolution Log Scale 0.01 dB
Linear Scale 4 digits
Level Measurement Uncertainty
Level Measurement Uncertainty 95% confidence level, S/N > 20 dB, RBW=VBW=1 kHz,
preamplifier off, 10 MHz <fc Glt3 GHz, 20 ºC to 30 ºC
<1.5 dB, nominal
RF Input VSWR
10 dB RF attenuation
VSWR 1 MHz to 1.5 GHz <1.5
Intermodulation
Second Harmonic Intercept (SHI) +40 dBm
Third-order Intermodulation (TOI) fc > 30 MHz +10 dBm
Spurious Responses
Image Frequency <-60 dBc
Intermediate Frequency <-60 dBc
Spurious Responses, Inherent <-88 dBm, typ.
Spurious Responses, Others referenced to local oscillators,
referenced to A/D conversion,
referenced to subharmonic of first LO
referenced to harmonic of first LO
<-60 dBc

Sweep

Sweep Time Range 100 Hz ≤ Span ≤1.5 GHz 10 ms to 1500 s
Span = 0 20 µs to 1500 s
Sweep Time Uncertainty 100 Hz ≤ Span ≤1.5 GHz 5%, nominal
Span = 0 0.5%, nominal
Sweep Mode continuous, single

Trigger Function

Trigger Source Free run, Video, External
External Trigger Level 5 V TTL level

Tracking Generator (optional for DSA815)

TG Output
Frequency Range 9 kHz to 1.5 GHz
Output Level - 20 dBm to 0 dBm, in 1 dB step
Output Flatness 1 MHz to 1.5 GHz, referenced to 50 MHz ± 3 dB

Inputs and Outputs

RF Input
Impedance 50Ω
Connector N female
TG Out
Impedance 50Ω
Connector N female
10 MHz REF In / 10 MHz REF Out / External Trigger In
Connector BNC female
10 MHz REF In Amplitude 0 dBm to +10 dBm
10 MHz REF Out Amplitude +3 dBm to +10 dBm
Trigger Voltage 5 V TTL level
USB
USB Host Connector B plug
Protocol Version 2.0
USB device Connector A plug
Protocol Version 2.0

General Specifications

Display
Type TFT LCD
Resolution 800 × 480
Size 8"
Colors 64 k
Printer Supported
Protocol PictBridge
Remote Control
USB USB TMC
LAN Interface 10/100 Base-T, RJ-45
IEC/IEEE bus (GIB) with opt. USB-GPIB IEEE488.2
Mass Memory
Mass Memory Flash disc (internal)
USB Disc (not supplied)
Power Supply
Input Voltage Range, AC 100 V to 240 V, nominal
AC Supply Frequency 45 Hz to 440 Hz
Power Consumption typ. 35 W, max 50 W with all options
Temperature
Storage Temperature Range -20 ºC to 70 ºC
Dimensions
W × H × D 361 × 178 × 128 mm
14.2 × 7.0 × 5.0 inches

Additional information

Download RIGOL DSA815 User Manual.


Download RIGOL DSA815 Data Sheet.

RIGOL DSA815 Spectrum Analyzer Package Contents

  • RIGOL DSA815 spectrum analyzer (1 pc.)
  • Power cable (1 pc.)

RIGOL DSA815 Spectrum Analyzer Optional Accessories

  • EMI filter and Quasi-peak detector kit
  • VSWR measurement kit
  • VSWR bridge
  • Advanced measurement kit
  • 1.5 GHz tracking generator
  • RF demo kit (transmitter)
  • USB to GPIB interface converter
  • DSA accessories package

Specifications

Max. frequency
  • 1.5 GHz
Additional features
  • with LF preamplifier
