VSWR Bridge RIGOL VB1080

id: 866439
VSWR Bridge RIGOL VB1080
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 734.00
Contact
sales team
Overview
1.7 kg Warranty: 36 months
VSWR Bridge option to be installed in RIGOL DSA series spectrum analysers. Frequency range: 2 GHz to 8 GHz.
USD 734.00
Contact
sales team
Add to wishlist
Compare
Compare
USD 734.00
Contact
sales team
Impossible to estimate the shipping cost
Description

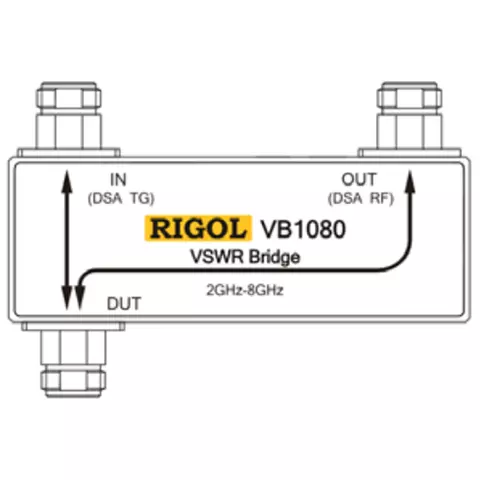

RIGOL VB1080 is a VSWR Bridge option to be installed in RIGOL DSA series spectrum analysers. It may be connected directly to the front of RIGOL spectrum analysers, without the need for cables, for convenience and improved accuracy.

Applications

  • Measuring S11 (input VSWR, input return loss).
  • Measuring S22 (output VSWR, output return loss).
  • Resonant frequency and VSWR tests of the antenna.

Technical Specifications

Frequency range 2 GHz to 8 GHz
Connector type N (Female) Type
Adaptor Dual N (Male) Type
Impedance 50 Ω
Maximum Input Power +27 dBm (0.5 W)
Operation Temperature -20 ℃ to 80 ℃
Storage Temperature -40 ℃ to 100 ℃
Dimensions 130 mm × 75 mm × 30 mm
Weight 0.5 kg

Compatibility

RIGOL VB1080 VSWR bridge includes RIGOL VSWR-DSA800 measurement software. This software is compatible with RIGOL DSA800 series spectrum analysers.

Read more
Description

RIGOL VB1080 is a VSWR Bridge option to be installed in RIGOL DSA series spectrum analysers. It may be connected directly to the front of RIGOL spectrum analysers, without the need for cables, for convenience and improved accuracy.

Applications

  • Measuring S11 (input VSWR, input return loss).
  • Measuring S22 (output VSWR, output return loss).
  • Resonant frequency and VSWR tests of the antenna.

Technical Specifications

Frequency range 2 GHz to 8 GHz
Connector type N (Female) Type
Adaptor Dual N (Male) Type
Impedance 50 Ω
Maximum Input Power +27 dBm (0.5 W)
Operation Temperature -20 ℃ to 80 ℃
Storage Temperature -40 ℃ to 100 ℃
Dimensions 130 mm × 75 mm × 30 mm
Weight 0.5 kg

Compatibility

RIGOL VB1080 VSWR bridge includes RIGOL VSWR-DSA800 measurement software. This software is compatible with RIGOL DSA800 series spectrum analysers.

Specifications
VSWR Bridge is compatible with the following models of Spectrum Analyzers
  • RIGOL DSA815-TG
  • RIGOL DSA1020
  • RIGOL DSA815 with TG & VSWR & DSA80
  • RIGOL DSA875
  • RIGOL DSA1030
  • RIGOL DSA815-TG-VSWR
  • RIGOL DSA1020
  • RIGOL DSA815
  • RIGOL DSA875-TG
  • RIGOL DSA1030A
  • RIGOL DSA832-TG
  • RIGOL DSA1030A-TG3
  • RIGOL DSA1030-TG3
  • RIGOL DSA832
  • RIGOL DSA705
  • RIGOL DSA710
