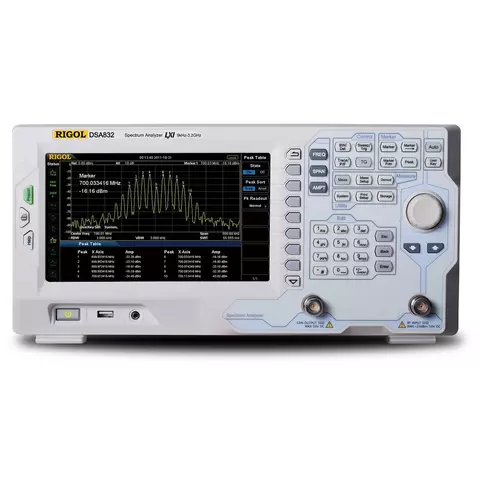

Spectrum Analyzer RIGOL DSA832

id: 857894
Spectrum Analyzer RIGOL DSA832
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 4409.00
Contact
sales team
Overview
7.5 kg 110, 220 V Warranty: 36 months
Compact size, lightweight and economic spectrum analyzer with 9 kHz to 3.2 GHz frequency range.
USD 4409.00
Contact
sales team
Add to wishlist
Compare
Compare
USD 4409.00
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Spectrum Analyzer SIGLENT SSA3032X
Add to wishlist
Spectrum Analyzer SIGLENT SSA3032X
USD 2595.00
Add to wishlist
Add to cart
SSA3000X series spectrum analyzer with a frequency range from 9 kHz up to 3.2 GHz. 10.1-inch WVGA Display.
Availability in stock: HK
Shipping cost
ID: 869154 6.44 kg 110, 220
Description

RIGOL DSA832 digital spectrum analyzer is the part of DSA800 series of spectrum analyzers which are small, lightweight and cost-effective. RIGOL DSA832 is equipped with easy-to-operate numeric keypad, high-resolution color LCD display and various remote communication interfaces. RIGOL DSA800 series of spectrum analyzers, and DSA832 model in particular can be widely used in various fields, such as education, company research and development as well as industrial manufacture.

Features

  • 9 kHz to 3.2 GHz frequency range
  • Typical -135 dBm displayed average noise level (DANL)
  • Total amplitude uncertainty &lt 1.5 dB
  • 100 Hz minimum resolution bandwidth (RBW)
  • EMI filter & Quasi-Peak detector kit (optional)
  • Preamplifier and AM/FM demodulation function
  • 8 inch high-definition (800×480 pixels) LCD
  • Interfaces: LAN, USB host, USB device and GPIB (optional)
  • Compact size, lightweight

Technical Specifications

Frequency

Frequency Range 9 kHz to 3.2 GHz
Internal Frequency Reference
Reference Frequency 10 MHz
Aging Rate &lt2 ppm/year
Temperature Stability 20 ºC to 30 ºC &lt0.5 ppm
Frequency Readout Accuracy
Marker Resolution span / (sweep points-1)
Marker Uncertainty ± (frequency indication × frequency reference uncertainty +1%
× span +10% × resolution bandwidth + marker resolution)
Marker Frequency Counter
Resolution 1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz
Uncertainty ± (frequency indication × frequency reference uncertainty + counter resolution)
Frequency Span
Range 0 Hz, 100 Hz to 3.2 GHz
Uncertainty ± span / (sweep points-1)
SSB Phase Noise
Carrier Offset 10 kHz &lt-98 dBc/Hz
Bandwidths
Resolution Bandwidth (-3 dB) 10 Hz to 1 MHz, in 1-3-10 sequence
Resolution Bandwidth (-6 dB) 200 Hz, 9 kHz, 120 kHz
RBW Uncertainty &lt5%, nominal
Resolution Filter Shape Factor (60 dB: 3 dB) &lt5, nominal
Video Bandwidth (-3 dB) 1 Hz to 3 MHz, in 1-3-10 sequence

Tracking Generator

TG Output
Frequency Range 100 kHz to 3.2 GHz
Output Level -40 dBm to 0 dBm, in 1 dB step
Output Flatness relative to 50 MHz ± 3 dB

Inputs and Outputs

RF Input
Impedance 50Ω
Connector N female
TG Out
Impedance 50Ω
Connector N female
10 MHz REF In / 10 MHz REF Out / External Trigger In
Connector BNC female
10 MHz REF In Amplitude 0 dBm to +10 dBm
10 MHz REF Out Amplitude +3 dBm to +10 dBm
Trigger Voltage 5 V TTL level
USB
USB Host Connector B plug
Protocol Version 2.0
USB device Connector A plug
Protocol Version 2.0

General Specifications

Display
Type TFT LCD
Resolution 800 × 480
Size 8"
Colors 64 k
Printer Supported
Protocol PictBridge
Remote Control
USB USB TMC
LAN Interface 10/100 Base-T, RJ-45
IEC/IEEE bus (GIB) with opt. USB-GPIB IEEE488.2
Mass Memory
Mass Memory Flash disc (internal)
USB Disc (not supplied)
Power Supply
Input Voltage Range, AC 100 V to 240 V, nominal
AC Supply Frequency 45 Hz to 440 Hz
Power Consumption typ. 35 W, max 50 W with all options
Temperature
Storage Temperature Range -20 ºC to 70 ºC
Dimensions
W × H × D 361 × 178 × 128 mm
14.2 × 7.0 × 5.0 inches

Additional information

Download RIGOL DSA832 User Manual.

Download RIGOL DSA832 Data Sheet.

Package Contents

  • RIGOL DSA832 spectrum analyzer (1 pc.)
  • Power cable (1 pc.)
Read more
