Spectrum Analyzer RIGOL DSA832E-TG
id: 885558
Spectrum Analyzer RIGOL DSA832E-TG
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 2599.00
Overview
Video
8 kg Warranty: 36 months
This item is delivered upon order. The current price and delivery time require clarification.
Compact and lightweight spectrum analyzer for portable applications. Digital IF technology, tracking generator option. Frequency range: 9 kHz to 3.2 GHz. Read more
USD 2599.00
Buy wholesale and save
You may also like
ID: 869154
Spectrum Analyzer SIGLENT SSA3032X
USD 2064.58
SSA3000X series spectrum analyzer with a frequency range from 9 kHz up to 3.2 GHz. 10.1-inch WVGA Display.
ID: 869154 6.44 kg 110, 220
Description
RIGOL DSA832E-TG digital spectrum analyzer is the part of DSA800 series of spectrum analyzers which are small, lightweight and cost-effective. RIGOL DSA832E-TG is equipped with easy-to-operate numeric keypad, high-resolution color LCD display and various remote communication interfaces. RIGOL DSA800 series of spectrum analyzers, and DSA832E-TG model in particular can be widely used in various fields, such as education, company research and development as well as industrial manufacture.
Features
- Tracking generator option.
- All-digital IF technology ensures reliability and premium performance in most demanding RF applications.
- Frequency range from 9 kHz tp 3.2 GHz.
- Displayed average noise level: -158 dBm/Hz.
- Offset phase noise: -90 dBc/Hz.
- Total amplitude accuracy: < 0,3 dB.
- Minimum resolution bandwidth (RBW): 10 Hz.
- Standard preamplifier up to 3.2 GHz.
- 8-inch TFT LCD display (800×480).
Technical Specifications
| Frequency Range | from 9 kHz to 3,2 GHz |
| Resolution Bandwidth (RBW) | 10 Hz |
| Displayed Average Noise Level | -158 dBm/Hz |
| Phase Noise | -100 dBc/Hz (typ.) |
| Amplitude Precision | < 0.3 dB |
| Max. Input Voltage | from 100 V to 240 V |
| Input Impedance | 50 Ω nominal |
| Display | 8-inch, TFT LCD (800×480) |
| Interfaces | USB, USB-Host, LAN, IEC/IEEE (GPIB) |

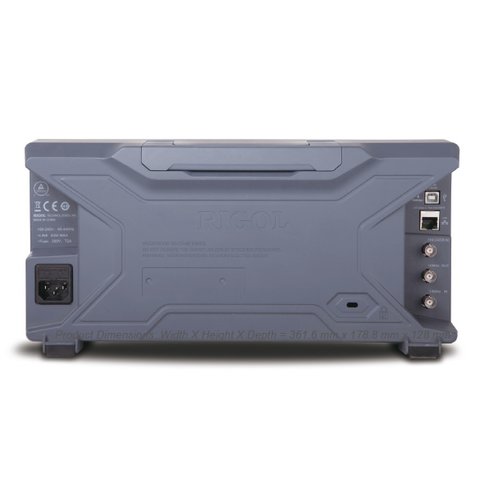

| Dimensions | 361.6 × 178.8 × 128 mm |
| Weight | 5.15 kg |
User Manual
Download RIGOL DSA832E-TG Manual.
Package Contents
- Spectrum Analyzer RIGOL DSA832E-TG — 1 pc.
- Power Cord — 1 pc.
- Standard preamplifier up to 3.2 GHz — 1 pc.
- User Manual — 1 pc.
