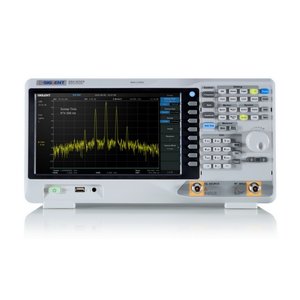

Spectrum Vector Analyzer SIGLENT SVA1032X
sales team
You may also like
SIGLENT SVA1032X is a SVA1000X series spectrum analyzer with a frequency range from 9 kHz up to 3.2 GHz, equipped with a tracking generator and preamplifier. This device is powerful and reliable, with a user-friendly interface and concise style of data display. SIGLENT SVA1032X provides precise automatic RF features measurement. Applicable to research and development, education, production, maintenance and other related fields, meets a wider range of application requirements.
Features
- Frequency range from 9 kHz up to 3.2 GHz.
- -161 dBm/Hz displayed average noise level (typ.)
- -98 dBc/Hz offset phase noise (1 GHz, typ.)
- Total amplitude accuracy < 0.7 dB (typ.)
- 1 Hz minimum resolution bandwidth (RBW).
- Preamplifier standard
- Tracking generator standard
- Distance to fault (opt.)
- Analog and digital signal modulation analysis mode (opt.)
- EMI filter and quasi-peak detector kit (opt.)
- Advanced measurement kit (opt.)
- Vector network analysis.
- 10.1-inch multi-touch screen, mouse and keyboard supported.
- Web Browser remote control.
Technical Specifications
SIGLENT SVA1032X is a SVA1000X series spectrum analyzer with a frequency range from 9 kHz up to 3.2 GHz, equipped with a tracking generator and preamplifier. This device is powerful and reliable, with a user-friendly interface and concise style of data display. SIGLENT SVA1032X provides precise automatic RF features measurement. Applicable to research and development, education, production, maintenance and other related fields, meets a wider range of application requirements.
Features
- Frequency range from 9 kHz up to 3.2 GHz.
- -161 dBm/Hz displayed average noise level (typ.)
- -98 dBc/Hz offset phase noise (1 GHz, typ.)
- Total amplitude accuracy < 0.7 dB (typ.)
- 1 Hz minimum resolution bandwidth (RBW).
- Preamplifier standard
- Tracking generator standard
- Distance to fault (opt.)
- Analog and digital signal modulation analysis mode (opt.)
- EMI filter and quasi-peak detector kit (opt.)
- Advanced measurement kit (opt.)
- Vector network analysis.
- 10.1-inch multi-touch screen, mouse and keyboard supported.
- Web Browser remote control.
Technical Specifications
| Model | SVA1015X | SVA1032X | SVA1075X |
|---|---|---|---|
| Frequency Range | 9 kHz~1.5 GHz | 9 kHz~3.2 GHz | 9 kHz~7.5 GHz |
| Resolution Bandwidth | 1 Hz~1 MHz | 1 Hz~1 MHz | 1 Hz~3 MHz |
| Displayed Average Noise Level | -156 dBm/Hz | -161 dBm/Hz | -165 dBm/Hz |
| SSB Phase Noise | <-99 dBc/Hz | <-98 dBc/Hz | <-98 dBc/Hz |
| Total Amplitude Accuracy | < 1.2 dB | < 0.7 dB | < 0.7 dB |
| Tracking Generator | 5 MHz~1.5 GHz | 100 kHz~3.2 GHz | 100 kHz~7.5 GHz |
| Communication Interface | LAN, USB Device, USB Host (USB-GPIB) | ||
| Display | multi-touch TFT color 1024×600, 10.1" / 26.5 cm | ||
| Storage | Internal (Flash) 256 MB, external (USB storage 32 GB | ||
| Dimensions | 393 × 207 × 116.5 mm (W × H × D) | ||
| Weight | net: 4.3 kg gross: 5.1 kg |
net: 4.4 kg gross: 5.2 kg |
net: 4.7 kg gross: 5.5 kg |
Video
User Manual
Download SIGLENT SVA1032X User Manual.
Data Sheet
Download SIGLENT SVA1032X Data Sheet.
Programming Guide
Download SIGLENT SVA1032X Programming Guide.
Service Manual
Download SIGLENT SVA1032X Service Manual.
Package Contents
- Spectrum Vector Analyzer SIGLENT SVA1032X — 1 pc.
- Power Cord — 1 pc.
- USB Cable — 1 pc.
- Guarantee Card — 1 pc.
- Quick Start Guide — 1 pc.
