Tablet Digital Oscilloscope Micsig TO1072

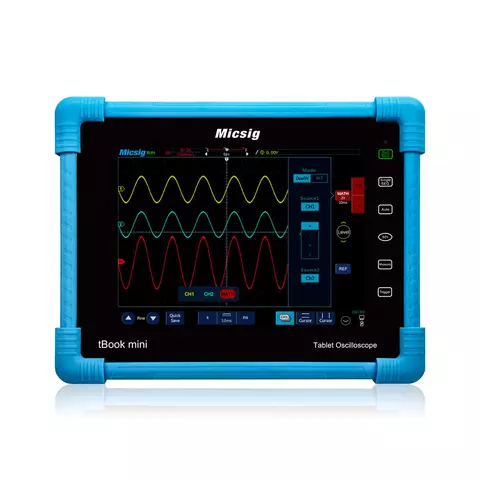

Micsig TO1072 tBook Mini Tablet Oscilloscope is a 2-channel digital oscilloscope with 8-inch touchscreen, 70 MHz bandwidth and 1 GSa/s real-time sample rate.

Features

• Up to 80,000 wfm/s waveform capture rate
• 8" TFT LCD & 800×600 pixel high-resolution multi-touch capacity screen
• Gradient waveform display with 256 intensity levels
• 7 types of trigger functions: Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge, and Video
• Built-in 8 GB storage capacity, waveforms and screenshots can be viewed and edited in scope
• 31 type of auto measurements
• Various I/O ports: LAN, Wifi, USB2.0, USB Device, HDMI, Trigger out, Pass/Fail
• Up to 5 hours operation with optional Li-ion battery

Technical Specifications

14 Mpts memory depth

Maximum capture rate up to 80,000 waveforms per second

Gradient waveform display with 256 intensity levels

Lower noise floor

31 types of auto measurements

Various trigger functions

Waveform save and recall options

Fast and easy adjustment

Waveform storage

Zoom function

Math operations

Keyboard for file naming

Data Sheet

Download Micsig tBook mini TO1000 Data Sheet.

Package Contents

• Micsig TO1072 Tablet Digital Oscilloscope — 1 pc.
• USB data cable — 1 pc.
• Power adapter — 1 pc.
• CD — 1 pc.
• Probes — 2 pcs.
• User manual — 1 pc.
