Tablet Digital Oscilloscope Micsig TO1102
id: 866340
Tablet Digital Oscilloscope Micsig TO1102
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 479.00
Overview

5 kg 110, 220 V Warranty: 12 months
Micsig tBook mini series 2-channel handheld digital oscilloscope with 8-inch touchscreen, 100 MHz bandwidth, 1 GSa/s real time sampling rate, 28 M memory depth. Read more
USD 479.00
Buy wholesale and save
Description

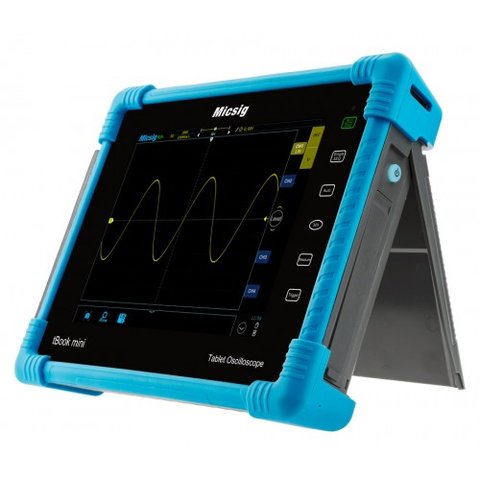

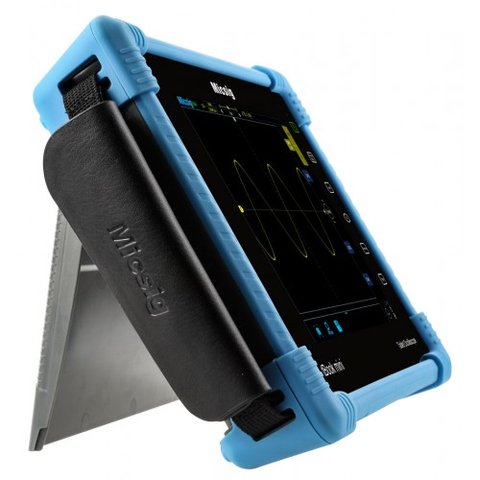

Micsig TO1102 tBook Mini Tablet Oscilloscope is a 2-channel digital oscilloscope with 8-inch touchscreen, 100 MHz bandwidth and 1 GSa/s real-time sample rate.
Features
- Up to 80,000 wfm/s waveform capture rate
- 8" TFT LCD & 800×600 pixel high-resolution multi-touch capacity screen
- Gradient waveform display with 256 intensity levels

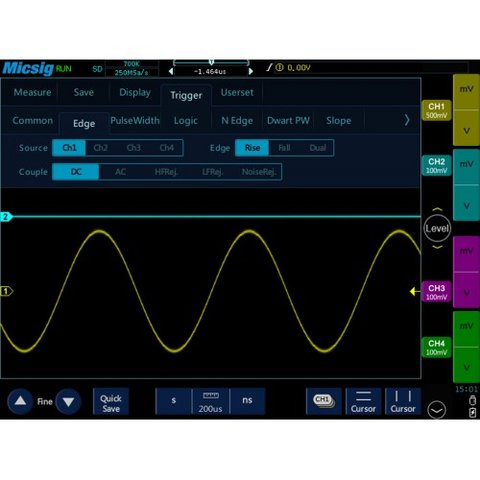

- 7 types of trigger functions: Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge, and Video
- Built-in 8 GB storage capacity, waveforms and screenshots can be viewed and edited in scope
- 31 type of auto measurements

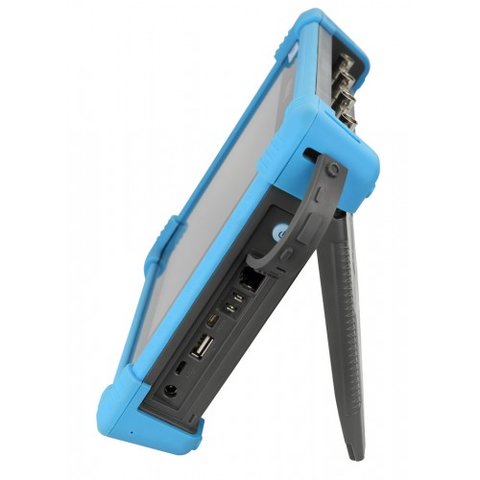

- Various I/O ports: LAN, Wifi, USB2.0, USB Device, HDMI, Trigger out, Pass/Fail
- Up to 5 hours operation with optional Li-ion battery
Technical Specifications
TO1072 | TO1074 | TO1102 | TO1104 | |
---|---|---|---|---|
Bandwidth | 70 MHz | 70 MHz | 100 MHz | 100 MHz |
Input channels | 2 | 4 | 2 | 4 |
Sample rate | 1 GSa/s | 1 GSa/s | 1 GSa/s | 1 GSa/s |
Memory depth | 14 Mpts | 14 Mpts | 28 Mpts | 28 Mpts |
Max. capture rate | 80,000 wfm/s | 80,000 wfm/s | 80,000 wfm/s | 80,000 wfm/s |
Interfaces | LAN, Wifi, USB2.0, USB Device, HDMI, Trigger out, Pass/Fail | |||
Screen | 8" TFT LCD (800*600) | |||
Dimensions | 250 × 210 × 55 mm |
14 Mpts memory depth

Maximum capture rate up to 80,000 waveforms per second

Gradient waveform display with 256 intensity levels

Lower noise floor

31 types of auto measurements

Various trigger functions

Waveform save and recall options

Fast and easy adjustment

Waveform storage

Zoom function

Math operations

Keyboard for file naming

Data Sheet
Download Micsig tBook mini TO1000 Data Sheet.

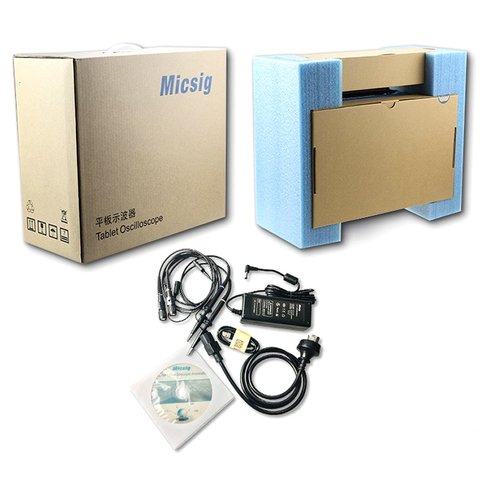

Package Contents
- Micsig TO1102 Tablet Digital Oscilloscope — 1 pc.
- USB data cable — 1 pc.
- Power adapter — 1 pc.
- CD — 1 pc.
- Probes — 2 pcs.
- User manual — 1 pc.
Specifications
Number of channels |
|
Bandwidth |
|
Type |
|
Sample Rate |
|
Screen Size |
|
Storage Capacity |
|
