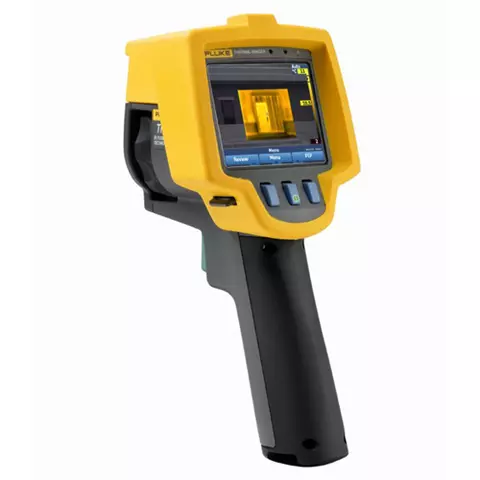

Thermal Imaging Camera Fluke Ti25

Name: Thermal Imaging Camera Fluke Ti25
Brand: Fluke
SKU: 824324
Price: 6200.00 USD
Availability: OutOfStock

id: 824324

Overview

Description

Specifications

Delivery

Payment

Warranty

Discontinued

Overview

USA brand

Brand:

110, 220 V Warranty: 12 months

Thermal sensitivity of 0.1°C, temperature measurement from -20°C to +350°C, selectable temperature scale (°C/°F), IR-Fusion® technology, voice annotations. Read more

Discontinued

Impossible to estimate the shipping cost

Description

Fluke Ti25 thermal imaging camera is a diagnostical tool for detecting hidden problems using temperature rise. Built for tough work environments, this fully radiometric thermal imaging camera is a good solution for troubleshooting electrical installations, electro-mechanical equipment, process equipment, HVAC/R equipment and others. Fluke Ti25 thermal imaging camera greatly increases the speed of inspecting, repairing and verifying electrical and mechanical equipment.

Fluke Ti25 Thermal Imaging Camera User Manuals

Download Fluke Ti25 thermal imaging camera user manual

Download additional information about Fluke Ti25 thermal imaging camera

Download brochure about Fluke Ti25 thermal imaging camera

Fluke Ti25 Thermal Imaging Camera Features

Designed for field use in harsh work environments
Tested to withstand a 2 meter drop, as well as dust and water
Emissivity selection and on-screen correction
Clear, crisp images needed to find problems fast
Excellent thermal sensitivity of 0.1°C
User selectable temperature scale (°C/°F)
Enhanced analysis capabilities with IR-Fusion® technology
Voice comments for images
Adjust palette on captured image before stored
More than 3000 .bmp or 1200 IR-Fusion images storage (2 GB memory card included)
SmartView® full analysis and reporting software included
Light weight, pocket size and intuitive user-friendly menu
Sleep mode activated after 5 minutes of inactivity
Automatic power off after 30 minutes of inactivity
Widescreen color LCD with high resolution
Time/Date set
16 languages selection

Fluke Ti25 Thermal Imaging Camera Comparative Specifications

Model	Ti9	Ti25	Ti32			TiRx
Optical data and imaging
Lens type	standard infrared lens		standard infrared lens	optional telephoto infrared lens (not included in package)	optional wide-angle infrared lens (not included in package)	standard infrared lens
Minimum focus distance	0.15 m for thermal lens 0.46 m for visible light lens		0.15 m	0.45 m	0.75 m	0.15 m for thermal lens 0.46 m for visible light lens
Field of view	23° × 17°		23° × 17°	11.5° × 8.7°	46° × 34°	23° × 17°
Spatial resolution	2.5 mrad		1.25 mrad	0.63 mrad	2.5 mrad	2.5 mrad
Thermal sensitivity	< 0.2°C	< 0.1°C	< 0.05°C			< 0.1°C
Focus	manual
Image frequency	9 Hz
Detector data
Spectral range	7.5 - 14 μm		8 - 14 μm			7.5 - 14 μm
Detector type	focal plane array (FPA), uncooled microbolometer
Measurement
Object temperature range	-20°C to +250°C	-20°C to +350°C	-20°C to +600°C			-20°C to +100°C
Measurement	±5°C or ±5% of reading	±2°C or ±2% of reading				±5°C or ±5% of reading
Measurement modes	auto / manual
Emissivity correction	–	yes				–
Color palettes	ironbow, blue-red, high contrast, grey	ironbow, blue-red, high contrast, grey, amber, hot metal	ironbow, blue-red, high contrast, grey, amber, hot metal, amber inverted, grayscale, grayscale inverted			ironbow, blue-red, high contrast, grey
IR-Fusion® information	–	visual and IR blending	IR blending			–
Voice annotation	–	60 seconds maximum recording time per image				–
Image storage and data communication interfaces
File formats	.bmp, .is2		.bmp, .jpg, .is2			.bmp, .jpg, .is2
Storage medium	SD memory card
Export file formats with SmartView®	.jpeg, .jpg, .jpe, .jfif, .bmp, .gif, .dip, .png, .tif, .tiff
General information
Operating temperature	-10°C to 50°C
Battery	rechargeable battery operation time approx. 3 to 4 hours AC adapter		two rechargeable batteries operation time more than 4 hours AC adapter			rechargeable battery operation time approx. 3 to 4 hours AC adapter
Display	color LCD, 640 × 480, 3.7"
Dimentions, mm	254 × 127 × 152		277 × 122 × 170			254 × 127 × 152
Weight	1.1 kg (battery included)		1.05 kg (battery included)			1.1 kg (battery included)
