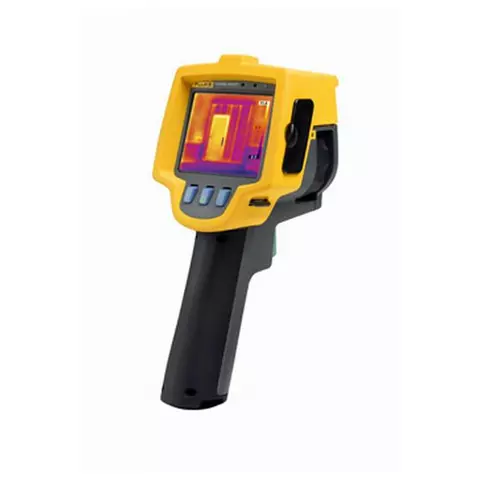

Thermal Imaging Camera Fluke TiRx
id: 824327
Thermal Imaging Camera Fluke TiRx
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 5400.00
Contact
sales team
sales team
Overview
110, 220 V Warranty: 12 months
Thermal sensitivity of 0.1°C, temperature measurement from -20°C to +100°C, selectable temperature scale (°C/°F),4 color palettes, SD memory card included.
Buy wholesale and save
Description
Fluke TiRx thermal imaging camera is a diagnostical tool for detecting hidden problems using temperature rise. Built for tough work environments, this fully radiometric thermal imaging camera is a good solution for troubleshooting electrical installations, electro-mechanical equipment, process equipment, HVAC/R equipment and others. Fluke TiRx thermal imaging camera is a simple and affordable device.
Fluke TiRx Thermal Imaging Camera User Manuals
Download Fluke TiRx thermal imaging camera user manual
Download additional information (Data Sheet) about Fluke TiRx thermal imaging camera
Fluke TiRx Thermal Imaging Camera Features
- Designed for field use in harsh work environments
- Tested to withstand a 2 meter drop, as well as dust and water
- Clear, crisp images needed to find problems fast
- Excellent thermal sensitivity of 0.1°C
- User selectable temperature scale (°C/°F)
- More than 3000 .bmp or images storage (2 GB memory card included)
- SmartView® full analysis and reporting software included
- Light weight, pocket size and intuitive user-friendly menu
- Sleep mode activated after 5 minutes of inactivity
- Automatic power off after 30 minutes of inactivity
- Widescreen color LCD with high resolution
- Time/Date set
- 16 languages selection
Fluke TiRx Thermal Imaging Camera Comparative Specifications
| Model | Ti9 | Ti25 | Ti32 | TiRx | ||
|---|---|---|---|---|---|---|
| Optical data and imaging | ||||||
| Lens type | standard infrared lens | standard infrared lens | optional telephoto infrared lens (not included in package) | optional wide-angle infrared lens (not included in package) | standard infrared lens | |
| Minimum focus distance | 0.15 m for thermal lens 0.46 m for visible light lens | 0.15 m | 0.45 m | 0.75 m | 0.15 m for thermal lens 0.46 m for visible light lens | |
| Field of view | 23° × 17° | 23° × 17° | 11.5° × 8.7° | 46° × 34° | 23° × 17° | |
| Spatial resolution | 2.5 mrad | 1.25 mrad | 0.63 mrad | 2.5 mrad | 2.5 mrad | |
| Thermal sensitivity | < 0.2°C | < 0.1°C | < 0.05°C | < 0.1°C | ||
| Focus | manual | |||||
| Image frequency | 9 Hz | |||||
| Detector data | ||||||
| Spectral range | 7.5 - 14 μm | 8 - 14 μm | 7.5 - 14 μm | |||
| Detector type | focal plane array (FPA), uncooled microbolometer | |||||
| Measurement | ||||||
| Object temperature range | -20°C to +250°C | -20°C to +350°C | -20°C to +600°C | -20°C to +100°C | ||
| Measurement | ±5°C or ±5% of reading | ±2°C or ±2% of reading | ±5°C or ±5% of reading | |||
| Measurement modes | auto / manual | |||||
| Emissivity correction | – | yes | – | |||
| Color palettes | ironbow, blue-red, high contrast, grey | ironbow, blue-red, high contrast, grey, amber, hot metal | ironbow, blue-red, high contrast, grey, amber, hot metal, amber inverted, grayscale, grayscale inverted | ironbow, blue-red, high contrast, grey | ||
| IR-Fusion® information | – | visual and IR blending | IR blending | – | ||
| Voice annotation | – | 60 seconds maximum recording time per image | – | |||
| Image storage and data communication interfaces | ||||||
| File formats | .bmp, .is2 | .bmp, .jpg, .is2 | .bmp, .jpg, .is2 | |||
| Storage medium | SD memory card | |||||
| Export file formats with SmartView® | .jpeg, .jpg, .jpe, .jfif, .bmp, .gif, .dip, .png, .tif, .tiff | |||||
| General information | ||||||
| Operating temperature | -10°C to 50°C | |||||
| Battery | rechargeable battery operation time approx. 3 to 4 hours AC adapter | two rechargeable batteries operation time more than 4 hours AC adapter | rechargeable battery operation time approx. 3 to 4 hours AC adapter | |||
| Display | color LCD, 640 × 480, 3.7" | |||||
| Dimentions, mm | 254 × 127 × 152 | 277 × 122 × 170 | 254 × 127 × 152 | |||
| Weight | 1.1 kg (battery included) | 1.05 kg (battery included) | 1.1 kg (battery included) | |||
Fluke TiRx Thermal Imaging Camera Package
- Thermal imaging camera Fluke TiRx
- SD memory card
- USB memory card reader
- AC power supply/battery charger
- User manual
- SmartView software
- Training DVD
- Warranty registration card
- Hand strap
- Soft carrying case
- Rugged hard carrying case
Read more
Description
Fluke TiRx thermal imaging camera is a diagnostical tool for detecting hidden problems using temperature rise. Built for tough work environments, this fully radiometric thermal imaging camera is a good solution for troubleshooting electrical installations, electro-mechanical equipment, process equipment, HVAC/R equipment and others. Fluke TiRx thermal imaging camera is a simple and affordable device.
Fluke TiRx Thermal Imaging Camera User Manuals
Download Fluke TiRx thermal imaging camera user manual
Download additional information (Data Sheet) about Fluke TiRx thermal imaging camera
Fluke TiRx Thermal Imaging Camera Features
- Designed for field use in harsh work environments
- Tested to withstand a 2 meter drop, as well as dust and water
- Clear, crisp images needed to find problems fast
- Excellent thermal sensitivity of 0.1°C
- User selectable temperature scale (°C/°F)
- More than 3000 .bmp or images storage (2 GB memory card included)
- SmartView® full analysis and reporting software included
- Light weight, pocket size and intuitive user-friendly menu
- Sleep mode activated after 5 minutes of inactivity
- Automatic power off after 30 minutes of inactivity
- Widescreen color LCD with high resolution
- Time/Date set
- 16 languages selection
Fluke TiRx Thermal Imaging Camera Comparative Specifications
| Model | Ti9 | Ti25 | Ti32 | TiRx | ||
|---|---|---|---|---|---|---|
| Optical data and imaging | ||||||
| Lens type | standard infrared lens | standard infrared lens | optional telephoto infrared lens (not included in package) |
optional wide-angle infrared lens
(not included in package) |
standard infrared lens | |
| Minimum focus distance | 0.15 m for thermal lens 0.46 m for visible light lens |
0.15 m | 0.45 m | 0.75 m | 0.15 m for thermal lens 0.46 m for visible light lens |
|
| Field of view | 23° × 17° | 23° × 17° | 11.5° × 8.7° | 46° × 34° | 23° × 17° | |
| Spatial resolution | 2.5 mrad | 1.25 mrad | 0.63 mrad | 2.5 mrad | 2.5 mrad | |
| Thermal sensitivity | < 0.2°C | < 0.1°C | < 0.05°C | < 0.1°C | ||
| Focus | manual | |||||
| Image frequency | 9 Hz | |||||
| Detector data | ||||||
| Spectral range | 7.5 - 14 μm | 8 - 14 μm | 7.5 - 14 μm | |||
| Detector type | focal plane array (FPA), uncooled microbolometer | |||||
| Measurement | ||||||
| Object temperature range | -20°C to +250°C | -20°C to +350°C | -20°C to +600°C | -20°C to +100°C | ||
| Measurement | ±5°C or ±5% of reading | ±2°C or ±2% of reading | ±5°C or ±5% of reading | |||
| Measurement modes | auto / manual | |||||
| Emissivity correction | – | yes | – | |||
| Color palettes | ironbow, blue-red, high contrast, grey | ironbow, blue-red, high contrast, grey, amber, hot metal | ironbow, blue-red, high contrast, grey, amber, hot metal, amber inverted, grayscale, grayscale inverted | ironbow, blue-red, high contrast, grey | ||
| IR-Fusion® information | – | visual and IR blending | IR blending | – | ||
| Voice annotation | – | 60 seconds maximum recording time per image | – | |||
| Image storage and data communication interfaces | ||||||
| File formats | .bmp, .is2 | .bmp, .jpg, .is2 | .bmp, .jpg, .is2 | |||
| Storage medium | SD memory card | |||||
| Export file formats with SmartView® | .jpeg, .jpg, .jpe, .jfif, .bmp, .gif, .dip, .png, .tif, .tiff | |||||
| General information | ||||||
| Operating temperature | -10°C to 50°C | |||||
| Battery | rechargeable battery operation time approx. 3 to 4 hours AC adapter |
two rechargeable batteries operation time more than 4 hours AC adapter |
rechargeable battery operation time approx. 3 to 4 hours AC adapter |
|||
| Display | color LCD, 640 × 480, 3.7" | |||||
| Dimentions, mm | 254 × 127 × 152 | 277 × 122 × 170 | 254 × 127 × 152 | |||
| Weight | 1.1 kg (battery included) | 1.05 kg (battery included) | 1.1 kg (battery included) | |||
Fluke TiRx Thermal Imaging Camera Package
- Thermal imaging camera Fluke TiRx
- SD memory card
- USB memory card reader
- AC power supply/battery charger
- User manual
- SmartView software
- Training DVD
- Warranty registration card
- Hand strap
- Soft carrying case
- Rugged hard carrying case
