USB Tester FNIRSI FNB28

id: 895995
0.2 kg Warranty: 6 month (s)
Compact and functional USB tester with manual and automatic charging protocol trigger support (QC2.0 / QC3.0 / FCP / SCP / AFC). Measurement range: 4-24 V/0-5 A.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Delivery
Payment
Warranty
Overview

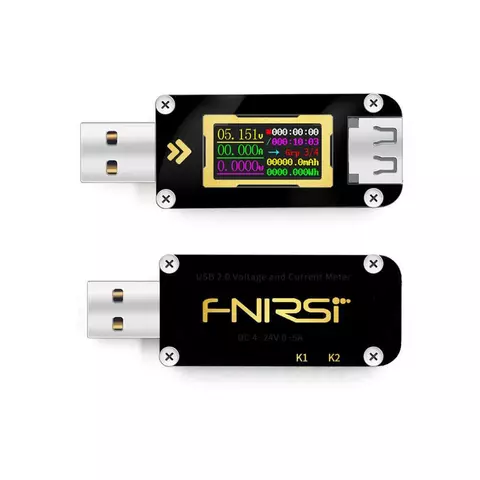

FNIRSI FNB28 is a compact and functional USB tester with manual and automatic charging protocol trigger support (QC2.0 / QC3.0 / FCP / SCP / AFC). This device designed for the measurement of rechargers, U disks, data cables, power banks, mobile phones, etc.

Features

  • Software update support.
  • 0.96" TFT color swivel display.
  • Interface: USB-A (male), USB-A (female).
  • Built-in thermal sensor.
  • Can be used for the measurement of rechargers, U disks, data cables, power banks, mobile phones, etc.

Technical Specifications

Voltage measuring range 4 V-24 V
resolution 0.001 V
accuracy ± (0,4‰ + 3LSB) @ 25°C
Current measuring range 0-5 A
resolution 0.001 A
accuracy ± (0,8‰ + 3LSB) @ 25°C
Power measuring range 0-150.00 W
resolution 0.0001 W
D+/D- data line voltage up to 3,3 V
Load impedance resolution 0.0001 Ω
Working temperature range -10°C-65°C
Capacity up to 99999.9 mAh or 9999.99 W/h, memory 4 groups
Timer 0-999 h: 59 min: 59 s
Interface USB-A (male), USB-A (female)
Trigger manual/auto: Qualcomm QC2.0/QC3.0/Huawei FCP/SCP/Samsung AFC
Dimensions 65 mm × 23 mm × 12 mm
Net weight 30 g

Package Contents

  • USB Tester FNIRSI FNB28 — 1 pc.
