Overview
0.2 kg Warranty: 6 months
Multifunctional Type-C USB tester. Measurement range: 0-24 V / 0-5 A. Interface: USB-C in, USB-C out, MicroUSB HID. Color LCD (0.96"). Read more
You may also like
Add to wishlist
ID: 875821
USB tester UNI-T UT658
USD 8.64
Add to wishlist
Add to cart
Tests USB connection quality, tracks voltage, current, and energy, with memory and alarm.
Availability in stock:
HK
ID: 875821 0.2 kg
Bestseller
Add to wishlist
ID: 895993
USB Tester FNIRSI FNB38
USD 20.62
Add to wishlist
Add to cart
Device designed for testing rechargers, U disks, data cables, power banks, mobile phones, etc.
Availability in stock:
HK
ID: 895993 0.2 kg
Description

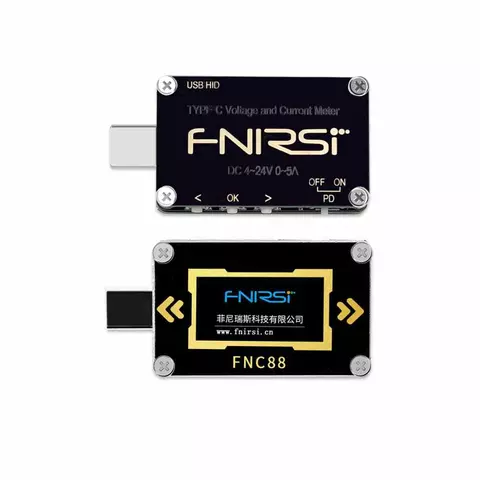

FNIRSI FNC88 is a USB tester designed for testing rechargers, U disks, data cables, power banks, mobile phones, etc.
Features
- Controller: STM32
- Built-in thermal sensor.
- Software update support.
- Fast charging autotest.
- Bilateral current detection.
Technical Specifications
| Measured voltage | 0-24 V |
| Measured current | 0-5 A |
| Current measurement accuracy | ± (1‰ + 2LSB) at 25°C |
| Measured power | 0-120 W |
| Resolution | 0.0001 V / 0.0001 A / 0.01 W |
| Measured capacitance | 0-99999,9 mAh (5 sets) |
| Measured energy | 0-9999,99 Wh (5 sets) |
| Interface | USB-C in, USB-C out, MicroUSB HID |
| Trigger | Qualcomm QC2.0/QC3.0/Huawei FCP/SCP/Samsung AFC/PD3.0/2.0 |
| Memory | 5 sets |
| Timer | 0-999 h: 59 min: 59 s |
| D+/D- data line voltage | up to 3,3 V |
| CC1/CC2 line voltage | up to 3,3 V |
| Temperature measuring range | 0-65 °C |
| Display | color LCD, 0.96 inches |
Package Contents
- USB Tester FNIRSI FNC88 — 1 pc.
