Description

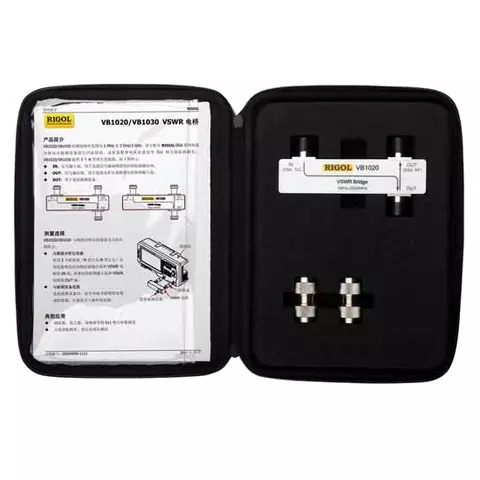

Rigol VB1020 is a VSWR Bridge option to be installed in Rigol DSA815/DSA815-TG Spectrum Analysers.

Applications

  • Measurement of the S11-related parameters of the filter, amplifier, mixer, etc.
  • Resonant frequency and VSWR tests of the antenna.

Technical Specifications

Frequency range 1 MHz to 2 GHz
Connector type N (Female) Type
Adaptor Dual N (Male) Type
Impedance 50 Ω
Maximum Input Power +27 dBm (0.5 W)
Operation Temperature -20 ℃ to 80 ℃
Storage Temperature -40 ℃ to 100 ℃
Dimensions 130 mm × 75 mm × 30 mm
Weight 0.5 kg

Compatibility

Read more
Description

Rigol VB1020 is a VSWR Bridge option to be installed in Rigol DSA815/DSA815-TG Spectrum Analysers.

Applications

  • Measurement of the S11-related parameters of the filter, amplifier, mixer, etc.
  • Resonant frequency and VSWR tests of the antenna.

Technical Specifications

Frequency range 1 MHz to 2 GHz
Connector type N (Female) Type
Adaptor Dual N (Male) Type
Impedance 50 Ω
Maximum Input Power +27 dBm (0.5 W)
Operation Temperature -20 ℃ to 80 ℃
Storage Temperature -40 ℃ to 100 ℃
Dimensions 130 mm × 75 mm × 30 mm
Weight 0.5 kg

Compatibility

Specifications
VSWR Bridge is compatible with the following models of Spectrum Analyzers
  • RIGOL DSA815-TG
  • RIGOL DSA1020
  • RIGOL DSA815 with TG & VSWR & DSA80
  • RIGOL DSA875
  • RIGOL DSA1030
  • RIGOL DSA815-TG-VSWR
  • RIGOL DSA1020
  • RIGOL DSA815
  • RIGOL DSA875-TG
  • RIGOL DSA1030A
  • RIGOL DSA832-TG
  • RIGOL DSA1030A-TG3
  • RIGOL DSA1030-TG3
  • RIGOL DSA832
  • RIGOL DSA705
  • RIGOL DSA710
Frequency range
  • 1 MHz ~ 2 GHz
