Xbox 360 Repair Kit Jovy Systems JV-RKX Limited Edition
id: 815444
Xbox 360 Repair Kit Jovy Systems JV-RKX Limited Edition
Overview
Description
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
Video
Brand:
Jovy Systems
Jovy Systems JV-RKX reballing kit for XBox 360 repair. Kit includes X02047-012, GPU, CPU, HYB18HS12321AF-13 BGA stencils and Jovy Systems JV-JIG BGA reballing stand.
You may also like
Add to wishlist
BGA Reballing Kit ACHI LP-56
USD 59.00
Add to wishlist
Add to cart
Multi-functional BGA reballing kit with a convenient station for holding stencils with with height adjustment and a set of 56 BGA stencils.
Availability in stock:
HK
ID: 840086 1.95 kg
Description
Download additional information about Jovy Systems JV-RKX XBox 360 Repair Kit.
Jovy Systems JV-RKX reballing kit for XBox 360 repair.
Warning! Do not use a solder paste for reballing purposes!
Features of Jovy Systems JV-RKX XBox 360 Repair Kit
- Stencils are made of stainless steel. Reballing Stand is made of aluminum.

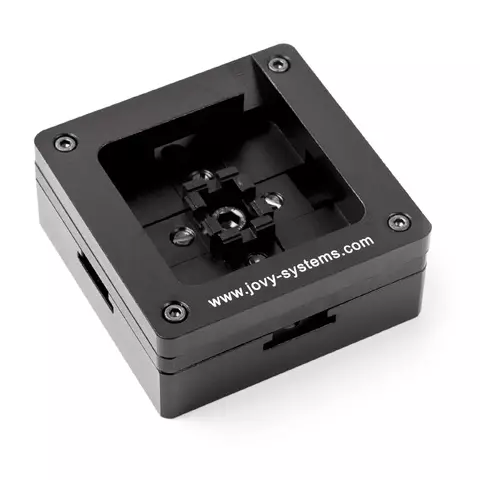

- Jovy Systems JV-JIG BGA reballing stand has 4 IC holders, an adjustable hold-down screw for chips of various thickness and a slot for unused balls. Compatible with Jovy Systems JV-RMS, JV-RMP and JV-RKC reballing sets.
- Compatible with the upper preheater of Jovy Systems RE-7500 infrared BGA rework station and other soldering stations.
Technical Specifications of Jovy Systems JV-RKX XBox 360 Repair Kit
| Stencil | Diameter | Thickness | Pitch |
|---|---|---|---|
| X02047-012 | 0.6 | 0.25 | 1.00 |
| GPU | 0.6 | 0.25 | 1.00 |
| CPU | 0.6 | 0.25 | 1.00 |
| HYB18HS12321AF-13 | 0.45 | 0.25 | 0.8 |
Jovy Systems JV-RKX XBox 360 Repair Kit – Video
Reballing XBOX 360 GPU using Jovy Systems RE-7500 infrared soldering station.
Jovy Systems JV-RKX XBox 360 Repair Kit – Package Content
- Jovy Systems JV-JIG BGA reballing stand
-
Jovy Systems JV-RMX BGA reballing stencils for XBox 360:
- X02047-012
- GPU
- CPU
- HYB18HS12321AF-13
