Arbitrary Waveform / Function Generator SIGLENT SDG5122
id: 841835
Arbitrary Waveform / Function Generator SIGLENT SDG5122
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Overview
Video
Video
6 kg 110, 220 V Warranty: 36 months
Dual-channel function/arbitary waveform generator, with 120 MHz max. output frequency, 500 MS/s sample rate, 14 bits vertical resolution, 16 K waveform length. Read more
Description
SDG5000 series arbitrary waveform / function generator is a new family member of SIGLENT with friendly design: 4.3 inch LCD display, USB and internal storage support, file management.

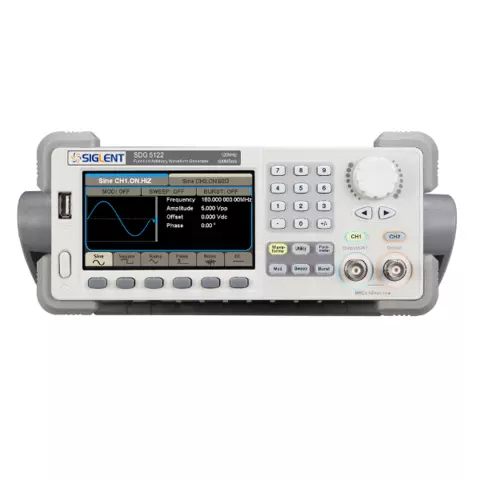

SIGLENT SDG5122 is a dual-channel arbitrary waveform / function generator which is designed for providing of the stable, precise, pure and low distortion signal. The user-friendly interface design and panel layout of the SIGLENT SDG5122 gives users exceptional experience. The remote control of the generator can be easily done through different standard configuration interfaces, which provides more solutions for users.
Features
- Standard waveforms:
- Sine
- Square
- Ramp
- Pulse
- Gaussian Noise
- DC
- Built-in arbitrary waveforms
- DDS technology, dual-channel output
- 500 MSa/s sample rate, 14-bit vertical resolution
- Unique channel coupling and duplication function
- Built-in accurate frequency counter enables to measure ranges 100 mHz - 200 MHz (single channel)
- Supplied with powerful arbitrary editable software
- Remote control support
Technical Specifications
| Standard waveforms | ||||
|---|---|---|---|---|
| Waveforms | Sine, Square, Ramp, Pulse, Gaussian Noise, DC, Built-in arbitrary waveforms | |||
| Sine | 1 μHz ~ 120 MHz | |||
| Square | 1 μHz ~ 40 MHz | |||
| Pulse | 1 μHz ~ 30 MHz | |||
| Ramp/Triangular | 1 μHz ~ 3 MHz | |||
| Gaussian noise | 100 MHz （-3 dB） | |||
| Arbitrary waveform | 1 μHz ~ 30 MHz | |||
| Max. output frequency | 120 MHz | |||
| Sample rate | 500 MSa/s | |||
| Modulation | A, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst | |||
| General specification | ||||
| Display | 4.3-inch TFT LCD, 480×272 | |||
| Interfaces | USB Host, USB Device, GPIB (optional), LAN (optional) | |||
| Power | 100 V ～ 240 V, CATII | |||
| Dimentions | 261 × 105 × 344 mm | |||
Additional Information
Download SIGLENT SDG5122 Data Sheet.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- SIGLENT SDG5122 arbitrary waveform / function generator (1 pc.)
- Power cord (1 pc.)
- USB cable (1 pc.)
Optional Accessories
- BNC cable
- GPIB-USB adapter
