Crimper Pro'sKit 6PK-301R

id: 847275
Crimper Pro'sKit 6PK-301R
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
Overview
Rate product
Crimping tool for non-insulated ring and fork terminals. Wire cross section: 0.5-1.0 / 1.5-2.5 / 4.0-6.0 mm². Read more
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Price coming soon
Contact
sales team
Impossible to estimate the shipping cost
Description

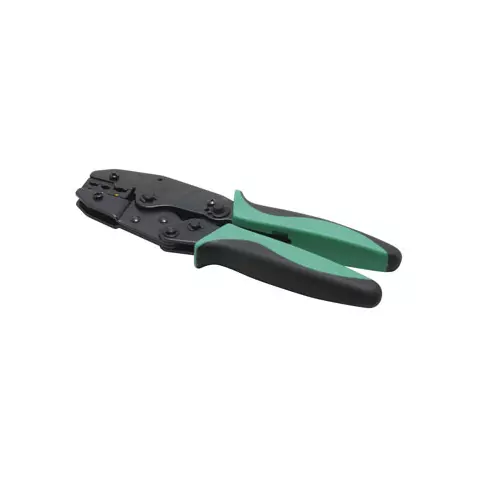

Pro'sKit 6PK-301R is a crimping tool for non-insulated ring and fork terminals.

Application

  • Crimping connectors:
    • ring non-insulated terminals;
    • fork non-insulated terminals.
  • Wire cross section: 0.5-1.0 / 1.5-2.5 / 4.0-6.0 mm².

Features

  • The comfort is achieved by ergonomically shaped non-slip handle.

Technical Specifications

Die Material AISI 4140 steel
Body Material S45C steel
Handle Material PP / TPR
Overall Length 220 mm

Connectors

Ring and fork non-insulated terminals Connectors

Compatible Replacement Crimper Dies

Model Outline Application Connectors
Pro'sKit 1PK-3003D1 1PK-3003D1 Connectors: ring and fork insulated.
Wire cross section: 0.325-5.261 mm²
insulated
Pro'sKit 1PK-3003D2 1PK-3003D2 Connectors: non-insulated open barrel connectors (male, female).
Wire cross section: 0.325-3.31 mm²
4
Pro'sKit 1PK-3003D4 1PK-3003D4 Connectors: SMA & SFR.
Wire cross section: optical fiber .095"
SMA-SFR
Pro'sKit 1PK-3003D10 1PK-3003D10"" Connectors: BNC-F. Cable type: RG 59,6.
Wire cross section: .255", .320", .350"
BNC-F
Pro'sKit 1PK-3003D11 1PK-3003D11 Connectors: 8P8C/RJ45. 8P8C-RJ45.png
Pro'sKit 1PK-3003D12 1PK-3003D12 Connectors: 6P2C/RJ11-RJ12. 4P4C-RJ22
Pro'sKit 1PK-3003D13 1PK-3003D13 Connectors: DEC MMJ 6P2C/RJ11. DEC_MMJ
Pro'sKit 1PK-3003D14 1PK-3003D14 Connectors: 8P8C/RJ45. 8P8C-RJ45
Pro'sKit 1PK-3003D16 1PK-3003D16 Connectors: 4P4C/RJ22. 4P4C-RJ22
Pro'sKit 1PK-3003D17 1PK-3003D17 Connectors: 10P10C/RJ50. 10P10C-RJ50
Pro'sKit 1PK-3003D17-MA 1PK-3003D17-MA Connectors: shielded 8P8C/RJ48 Hirose-type. Hirose
Pro'sKit 1PK-3003D21 1PK-3003D21 Connectors: mini insulated ring and fork terminals.
Wire cross section: 0.28-1.21 mm²
insulated
Pro'sKit 1PK-3003D36 1PK-3003D36 Connectors: BLS, HU, PHU, MF contacts.
Wire cross section: 0.05-0.25/0.35-0.9 mm²
D-Sub_4
Pro'sKit CP-236DC CP-236DC Connectors: non-insulated open barrel connectors (male, female).
Wire cross section: 0.5-1.0 / 1.5-2.5 / 4.0-6.0 mm²
4
Pro'sKit CP-236DE CP-236DE. Connectors: pin terminals (insulated, insulated double, non-insulated).
Wire cross section: 0.5, 0.75, 1.0, 1.5, 2.5, 4.0 mm²
connectors
Pro'sKit CP-236DM5 CP-236DM5 Connectors: Molex.
Wire cross section: round cable up to Ø5.2 mm
Molex
Pro'sKit CP-236DM6 CP-236DM5 Connectors: Molex 8P8C/RJ45.
Wire cross section: round cable up to Ø5.8 mm
Molex
Pro'sKit CP-236DN CP-236DN Connectors: ring and fork non-insulated.
Wire cross section: 1.5 / 2.5 / 6 / 10 mm²
non-insulated
Pro'sKit CP-236DQ CP-236DQ Connectors: short shielded 8P8C/RJ45 Hirose-type. Hirose
Pro'sKit CP-236DQ1 CP-236DQ1 Connectors: shielded 8P8C/RJ45 Hirose-type. Hirose
Pro'sKit CP-236DR CP-236DR Connectors: ring and fork insulated.
Wire cross section: 0.5-1.0 / 1.5-2.5 / 4.0-6.0 mm²
insulated
Pro'sKit CP-336DG CP-336DG Connectors: BNC. Cable type:: RG 58, 59, 62, 174, optical fiber.
Wire cross section: 043", .068", .100", .137", .213", .255"
BNC
Pro'sKit CP-336DH1 CP-336DH1 Connectors: BNC-F. Cable type: RG 59, 6.
Wire cross section: .255", .320", .350"
BNC-F
Pro'sKit CP-336DI CP-336DI Connectors: BNC. Cable type: RG 58, 59, 6, 174.
Wire cross section: .255", .213", .093", .068", 0.315"
BNC
Pro'sKit CP-336DK4 CP-336DK4 Connectors: BNC. Cable type: RG 58, 59, 6, 174.
Wire cross section: .100", .128", .190", .213"
BNC
Pro'sKit CP-336DV CP-336DV Connectors: SMA, SMB, SMC & MCX.
Wire cross section: .043", .069", .100", .128", .151", .213"
SMA-SMB-SMC-MCX
Specifications
Wire section
  • 0.5 - 1.0 sq, mm
  • 1.5 - 2.5 sq, mm
  • 4.0 - 6.0 sq, mm
