Crimping Tool Pro'sKit 6PK-301E
id: 847123
Crimping Tool Pro'sKit 6PK-301E
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Overview
Pin terminal crimping tool. OAL: 220 mm. AWG: 22, 20, 18, 16, 14, 12; DIN: 0.5, 0.75, 1.0, 1.5, 2.5, 4.0 mm². Read more
Price coming soon
Description

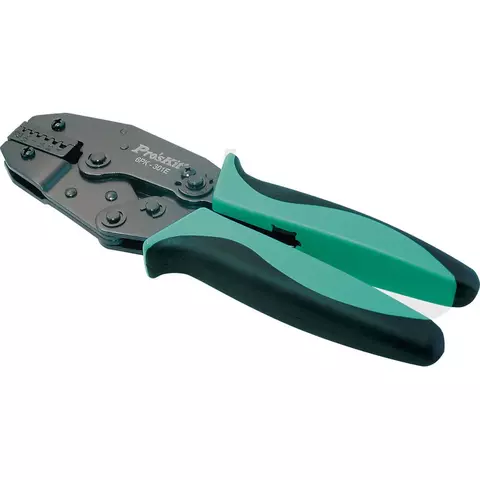

Pro'sKit 6PK-301E is a pin terminal crimping tool.
Application
- Pin terminals:
- insulated pin terminals;
- insulated pin terminals (double);
- non-insulated pin terminals.
- AWG: 22, 20, 18, 16, 14, 12; DIN: 0.5, 0.75, 1.0, 1.5, 2.5, 4.0 mm².
| Insulated pin terminals |  |
| Insulated pin terminals (double) |  |
| Non-insulated pin terminals |  |
Features
- Pressure adjustment for actuation force.
- Non-slip handle.
- Material: S45C medium carbon steel (HRC 45) and AISI 4140 alloy steel.
- Elastomeric resin exactly fitting doublestructure (green: PP, black: T.P.R.).
- OAL: 220 mm.
Technical Specifications
| Length | 220 mm |
| Frame material | S45C steel |
| Die material | AISI 4140 steel |
| Handle material | Green: PP / Black: TPR |
| HRC | 45±3° |
| Weight | 530±5 g |
Compatible Replacement Crimper Dies
| Model | Outline | Application | Connectors |
|---|---|---|---|
| Pro'sKit 1PK-3003D1 |  |
Connectors: ring and fork insulated.
Wire cross section: 0.325-5.261 mm² |
 |
| Pro'sKit 1PK-3003D2 |  |
Connectors: non-insulated open barrel connectors (male, female).
Wire cross section: 0.325-3.31 mm² |
 |
| Pro'sKit 1PK-3003D4 |  |
Connectors: SMA & SFR.
Wire cross section: optical fiber .095" |
 |
| Pro'sKit 1PK-3003D10 |  |
Connectors: BNC-F. Cable type: RG 59,6.
Wire cross section: .255", .320", .350" |
 |
| Pro'sKit 1PK-3003D11 |  |
Connectors: 8P8C/RJ45. |  |
| Pro'sKit 1PK-3003D12 |  |
Connectors: 6P2C/RJ11-RJ12. |  |
| Pro'sKit 1PK-3003D13 |  |
Connectors: DEC MMJ 6P2C/RJ11. |  |
| Pro'sKit 1PK-3003D14 |  |
Connectors: 8P8C/RJ45. | |
| Pro'sKit 1PK-3003D16 |  |
Connectors: 4P4C/RJ22. | |
| Pro'sKit 1PK-3003D17 |  |
Connectors: 10P10C/RJ50. |  |
| Pro'sKit 1PK-3003D17-MA |  |
Connectors: shielded 8P8C/RJ48 Hirose-type. |  |
| Pro'sKit 1PK-3003D21 |  |
Connectors: mini insulated ring and fork terminals.
Wire cross section: 0.28-1.21 mm² |
|
| Pro'sKit 1PK-3003D36 |  |
Connectors: BLS, HU, PHU, MF contacts.
Wire cross section: 0.05-0.25/0.35-0.9 mm² |
 |
| Pro'sKit CP-236DC |  |
Connectors: non-insulated open barrel connectors (male, female).
Wire cross section: 0.5-1.0 / 1.5-2.5 / 4.0-6.0 mm² |
|
| Pro'sKit CP-236DE |  |
Connectors: pin terminals (insulated, insulated double, non-insulated).
Wire cross section: 0.5, 0.75, 1.0, 1.5, 2.5, 4.0 mm² |
 |
| Pro'sKit CP-236DM5 |  |
Connectors: Molex.
Wire cross section: round cable up to Ø5.2 mm |
 |
| Pro'sKit CP-236DM6 | |
Connectors: Molex 8P8C/RJ45.
Wire cross section: round cable up to Ø5.8 mm |
|
| Pro'sKit CP-236DN |  |
Connectors: ring and fork non-insulated.
Wire cross section: 1.5 / 2.5 / 6 / 10 mm² |
 |
| Pro'sKit CP-236DQ |  |
Connectors: short shielded 8P8C/RJ45 Hirose-type. | |
| Pro'sKit CP-236DQ1 |  |
Connectors: shielded 8P8C/RJ45 Hirose-type. | |
| Pro'sKit CP-236DR |  |
Connectors: ring and fork insulated.
Wire cross section: 0.5-1.0 / 1.5-2.5 / 4.0-6.0 mm² |
|
| Pro'sKit CP-336DG |  |
Connectors: BNC. Cable type:: RG 58, 59, 62, 174, optical fiber.
Wire cross section: 043", .068", .100", .137", .213", .255" |
 |
| Pro'sKit CP-336DH1 |  |
Connectors: BNC-F. Cable type: RG 59, 6.
Wire cross section: .255", .320", .350" |
|
| Pro'sKit CP-336DI |  |
Connectors: BNC. Cable type: RG 58, 59, 6, 174.
Wire cross section: .255", .213", .093", .068", 0.315" |
|
| Pro'sKit CP-336DK4 |  |
Connectors: BNC. Cable type: RG 58, 59, 6, 174.
Wire cross section: .100", .128", .190", .213" |
|
| Pro'sKit CP-336DV |  |
Connectors: SMA, SMB, SMC & MCX.
Wire cross section: .043", .069", .100", .128", .151", .213" |
 |
Specifications
| Wire section |
|
