Overview
4 kg Warranty: 12 months
Single-channel DC power supply with a 150 W output power, designed for the regulation and output of a constant voltage in the range of 0-30 V with a current of 0-5 A
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Price coming soon
Contact
sales team
Impossible to estimate the shipping cost

You may also like

DC Power Supply SIGLENT SPD3303X
Bestseller
Add to wishlist
DC Power Supply SIGLENT SPD3303X
USD 539.00
USD 475.00
Add to wishlist
Add to cart
Programmable high-precision linear DC power supply with 3 output channels and a 220 W max. output power. 4.3-inch TFT LCD.
Bestseller
Availability in stock: HK
Shipping cost
ID: 862796 9 kg 110, 220
DC Power Supply SIGLENT SPD3303C
Bestseller
Add to wishlist
DC Power Supply SIGLENT SPD3303C
USD 249.00
USD 224.10
Add to wishlist
Add to cart
High-precision programmable linear DC power supply.
Bestseller
Availability in stock: HK
Shipping cost
ID: 855031 10 kg 110, 220
Programmable Power Supply RIGOL DP711
Bestseller
Add to wishlist
Programmable Power Supply RIGOL DP711
USD 299.00
Add to wishlist
Add to cart
Single channel power supply designed for supplying up to 30 V and 5 A DC. Low ripple and noise, 3.5" color LCD, power: 150 W.
Bestseller
Availability in stock: HK
Shipping cost
ID: 862737 7.9 kg 110, 220
Description

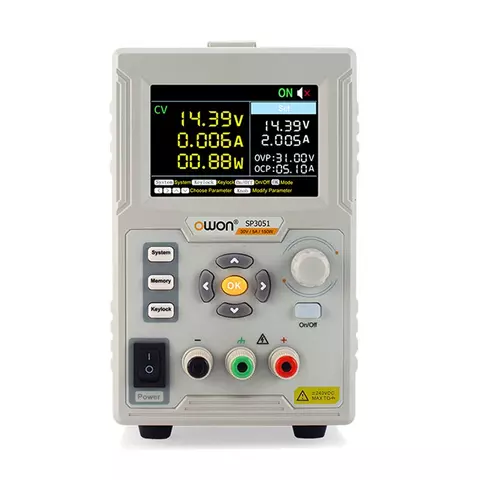

OWON SP3051 is a single-channel programmable DC power supply with a 150 W total output power. The device is designed to regulate and output a stabilized DC voltage in the range of 0-30 V with a 0-5 A current on one output channel. It features high resolution in current and voltage (10 mV, 1 mA) and low ripple and noise. Equipped with a digital display of load, output current, and voltage.

This DC power supply is used for cell phone and laptop repair, PCB aging tests, and battery charging. Besides, it can be connected to a computer using the RS232 interface (cable included).

Features

  • Small body for easy carry;
  • 150 W maximum output power;
  • High resolution: 10 mV / 1 mA;
  • Low ripple / noise;
  • Over voltage / over current protection;
  • Intelligent temperature control fan cooling;
  • 3.7-inch TFT LCD;
  • Support RS232 digital communication;
  • Support SCPI
Read more
Description

OWON SP3051 is a single-channel programmable DC power supply with a 150 W total output power. The device is designed to regulate and output a stabilized DC voltage in the range of 0-30 V with a 0-5 A current on one output channel. It features high resolution in current and voltage (10 mV, 1 mA) and low ripple and noise. Equipped with a digital display of load, output current, and voltage.

This DC power supply is used for cell phone and laptop repair, PCB aging tests, and battery charging. Besides, it can be connected to a computer using the RS232 interface (cable included).

Features

  • Small body for easy carry;
  • 150 W maximum output power;
  • High resolution: 10 mV / 1 mA;
  • Low ripple / noise;
  • Over voltage / over current protection;
  • Intelligent temperature control fan cooling;
  • 3.7-inch TFT LCD;
  • Support RS232 digital communication;
  • Support SCPI

Technical Specifications

Total Output Power (0°C-40°C) 150 W
Channel Output Voltage / Current (0°C-40°C) 0 to 30 V (adjustable), current 0 A to 5 A
Load Regulation Voltage / Current: ≤30 mV / ≤30 mA
Power Regulation Voltage / Current: ≤20 mV / ≤20 mA
Setting Resolution Voltage / Current: 10 mV / 1 mA
Readback Resolution Voltage / Current: 10 mV / 1 mA
Value Resolution (within 12 months)
(25°C ± 5°C)
Voltage / Current: ≤0.1% ± 20 mV / ≤0.05% ± 10 mA
Readback Value Resolution
(25°C ± 5°C)
Voltage / Current: ≤0.1% ± 20 mV / ≤0.1% ± 10 mA
Ripple / Noise (20 Hz-20 MHz) Voltage (Vp-p): ≤30 mVp-p
Voltage (rms): ≤3 mVrms
Current (rms): ≤30 mAp-p
Output Temperature Coefficient (0°C-40°C) Voltage / Current: ≤0.3% ± 10 mV / ≤0.3% ± 10 mA
Readback Temperature Coefficient Voltage / Current: ≤0.3% ± 10 mV / ≤0.3% ± 10 mA
General Specifications
Channel Single Channel Output
Response Time ≤1.0 ms
Storage 5 groups of data
Working Temperature 0°C-40°C
Display 3.7 inch color LCD
Dimensions 117 mm (L) × 194 mm (H) × 295 mm (D)
Weight approx. 3.0 kg
Interface RS232

User Manual

PDF  Download OWON SP3051 user manual.

Package Contents

  • DC Power Supply OWON SP3051 — 1 pc.
  • Power Cord — 1 pc.
  • User Manual — 1 pc.
  • Fuse — 1 pc.
  • RS232 Cable — 1 pc.
Specifications
Type
  • pulse
  • programmable
Number of channels
  • single-channel
Max. Voltage
  • up to 30 V
Max. Current
  • up to 5 A
Indicator type
  • 3.7" color LCD
