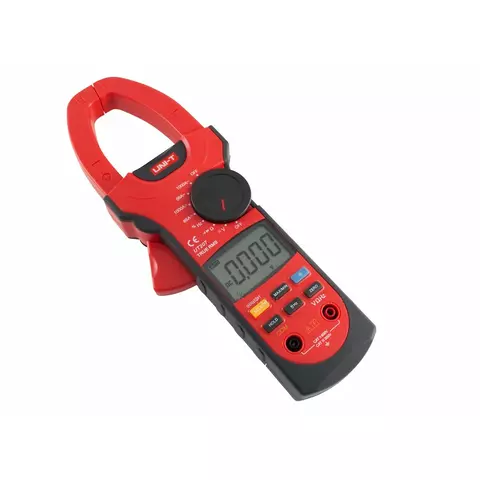

Digital Clamp Meter UNI-T UT207

id: 847051
Digital Clamp Meter UNI-T UT207
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
2 kg Warranty: 24 months
Digital clamp meter for measuring AC/DC voltage and current, in-rush starting current, resistance, frequency, duty cycle and temperature, and performing diode check and continuity test.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Clamp Meter Accta AT 1000E
Bestseller
Add to wishlist
Digital Clamp Meter Accta AT-1000E
USD 41.77
Add to wishlist
Add to cart
True RMS clamp meter designed to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing.
Bestseller
Availability in stock: HK
Shipping cost
ID: 891581 0.9 kg
Description

Digital clamp meter UNI-T UT207 is a reliable and low consumption clamp multimeter. Digital clamp meter UNI-T UT207 measures AC/DC voltage and current, in-rush starting currents, resistance, frequency, duty cycle and temperature, also performing diode check and continuity test. This digital clamp meter has overload protection.

Features

  • Measuring functions:
    • AC/DC voltage
    • AC/DC current
    • In-rush starting current
    • Resistance
    • Temperature
    • Diode check
    • Continuity test
    • Duty cycle
    • Frequency
    • Temperature
  • Auto ranging
  • True RMS
  • Data hold function
  • Sleep mode
  • Low battery display
  • Full icon display
  • Display backlight
  • 55 mm maximum jaw diameter
  • Measurement update speed 3 times/second
  • Compact and comfortable design
  • Compliance with safety requirements IEC61010-1; IEC61010-2-032 CAT II 600 V, CAT III 300 V

Comparative Specifications

Read more
Description

Digital clamp meter UNI-T UT207 is a reliable and low consumption clamp multimeter. Digital clamp meter UNI-T UT207 measures AC/DC voltage and current, in-rush starting currents, resistance, frequency, duty cycle and temperature, also performing diode check and continuity test. This digital clamp meter has overload protection.

Features

  • Measuring functions:
    • AC/DC voltage
    • AC/DC current
    • In-rush starting current
    • Resistance
    • Temperature
    • Diode check
    • Continuity test
    • Duty cycle
    • Frequency
    • Temperature
  • Auto ranging
  • True RMS
  • Data hold function
  • Sleep mode
  • Low battery display
  • Full icon display
  • Display backlight
  • 55 mm maximum jaw diameter
  • Measurement update speed 3 times/second
  • Compact and comfortable design
  • Compliance with safety requirements IEC61010-1; IEC61010-2-032 CAT II 600 V, CAT III 300 V

Comparative Specifications

Model UT207 UT208 UT209A
Display LED, max. 6666 digits
47 × 30 mm
LED, max. 4000 digits
47 × 30 mm
DC voltage Range 6.6 V / 66 V / 600 V 400 mV / 4 V / 40 V / 400 V / 1000 V
Accuracy ±(0.8%+1) ±(1.2%+3)
Input impedance 10 MΩ
Overload protection 600 V rms DC 1000 V / AC 750 V rms
AC voltage Range 6.6 V / 66 V / 600 V 400 mV / 4 V / 40 V / 400 V / 750 V
Accuracy ±(1.2%+5) ±(1.5%+5)
Input impedance 10 MΩ
Overload protection 600 V rms DC 1000 V / AC 750 V rms
DC current Range 66 A / 1000 A 40 A / 400 A / 1000 A
Accuracy ±(1.5%+8) ±(1.5%+5)
Overload protection 1000 A DC/AC
AC current Range 66 A / 1000 A 40 A / 400 A / 1000 A
Accuracy ±(2%+8) ±(2%+2)
Overload protection 1000 A DC/AC
Resistance Range 660 Ω / 6,6 kΩ / 66 kΩ / 660 kΩ / 6,6 MΩ / 66 MΩ 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Accuracy ±(1%+2)
Duty cycle 0.1%~99.9%
Temperature, ºC -40ºC ~ 1000ºC
Frequency Range 660 Hz / 6,6 kHz / 66 kHz / 660 kHz / 6,6 MHz / 66 MHz 10 Hz / 100 Hz / 1 kHz / 10 kHz / 1 MHz / 10 MHz
Accuracy ±(0.1%+3)
Power supply alakline battery 1604A or 6LF22 (9 V)
Dimensions, mm 285.3 × 105 × 44.5
Weight 533

User Manuals

Download user manual for digital clamp meter UNI-T UT207

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Package Contents

  • Clamp meter UNI-T UT207 — 1 pc.
  • Test lead — 1 pc.
  • Tool box — 1 pc.
  • Battery — 1 pc.
  • User manual — 1 pc.
Specifications
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • frequency
  • temperature
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • max / min
  • RMS measurement
  • diode test
Range Selection
  • auto range
  • manual range
Type
  • for AC/DC
  • for in-rush current measuring
Jaw diameter
  • diameter 55 mm
Digit Capacity
  • 6666
DC Voltage
  • up to 750 V
AC Voltage
  • up to 750 V
Resistance
  • up to 60 MOhm
Frequency
  • up to 60 MHz
Capacitance
  • does not measure the capacitance
Temperature
  • no
Power
  • no
Duty cycle
  • yes
True RMS
  • yes
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • no
Continuity test
  • yes
DC
  • up to 1000 A
AC
  • up to 1000 A
Three-phase voltage measurement
  • no
Three-phase current measurement
  • no
NCV
  • no
