Digital Oscilloscope RIGOL DS1102Z-E

id: 897139
Digital Oscilloscope RIGOL DS1102Z-E
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 329.00
Contact
sales team
Overview
5 (1)
Rate product
7.5 kg Warranty: 36 months
Dual-channel digital oscilloscope with 100 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate. Read more
USD 329.00
Contact
sales team
Add to wishlist
Compare
Compare
USD 329.00
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Oscilloscope SIGLENT SDS1104X U
Bestseller
Add to wishlist
ID: 898512
Digital Oscilloscope SIGLENT SDS1104X-U
5 (2)
USD 419.00
Add to wishlist
Add to cart
4-channel digital oscilloscope with 100 MHz bandwidth, up to 1 GSa/s real-time sampling rate, and up to 14 Mpts record length.
Availability in stock: HK
Shipping cost
ID: 898512 6.5 kg
Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Availability in stock: HK
Shipping cost
ID: 870200 6 kg 110, 220
Digital Oscilloscope RIGOL DS1202Z E
Bestseller
Add to wishlist
ID: 894828
Digital Oscilloscope RIGOL DS1202Z-E
5 (1)
USD 426.66
USD 358.39
Add to wishlist
Add to cart
Dual-channel digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate.
Availability in stock: HK
Shipping cost
ID: 894828 7.5 kg 110, 220
Description

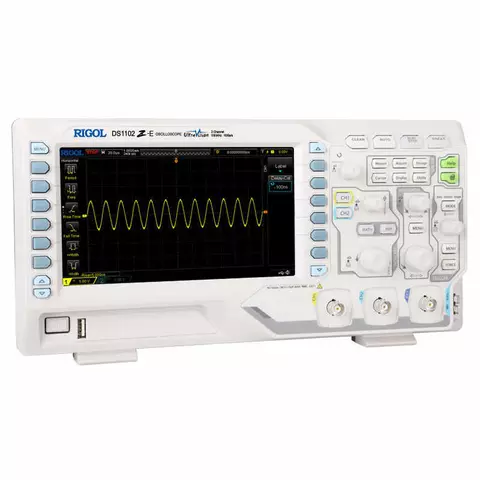

RIGOL DS1102Z-E is a high quality dual-channel digital storage oscilloscope. It features a real-time sample rate of up to 1 GSa/s and a bandwidth of 100 MHz. The device provides up to 30 000 wfms/s waveform acquisition rate, and 7-inch color oscilloscope's LCD provides a bright and clear waveforms display.

RIGOL DS1102Z-E digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

Features

  • Analog channel bandwidth: 100 MHz.
  • 2 analog channels.
  • Real-time sample rate up to 1 GSa/s.
  • Memory depth up to 24 Mpts.
  • Up to 30,000 wfms/s waveform capture rate.
  • Up to 60,000 frames hardware real-time waveform recording and playback functions.
  • Innovative "UltraVision" technology.
  • Various trigger and bus decoding functions.
  • Low noise floor, vertical scale range: 1 mV/div to 10 V/div.
  • Various interfaces: USB Host&Device, LAN (LXI), AUX.
  • Compact size, light weight, easy to use.
  • 7 inch WVGA (800x480) TFT LCD, intensity graded color display.

Technical Specifications

Bandwidth 100 MHz
Channels 2
Real-time Sample Rate 1 GSa/s (single-channel), 500 MSa/s (dual-channel)
Memory Depth standard 24 Mpts (single-channel), 12 Mpts (dual-channel)
Waveform Capture Rate 30 000 wfms/s
Vertical Sensitivity Range 1 mV/div - 10 V/div
Offset Range 1 mV/div to 499 mV/div: ±2 V; 500 mV/div to 10 V/div: ±100 V
Vertical Resolution 8 bit
Math A+B, A-B, A×B, A/B, FFT, A&&B, A||B, A^B, !A, Intg, Diff, Sqrt, Lg, Ln, Exp, Abs, Filter
Output Voltage ~ 3 V, peak-peak
Frequency 1 kHz
Power 50 W (max.)
Power Voltage 100 V-240 V, 45 Hz-440 Hz
Cooling Method Fan
Temperature Range Operation: 0°C to +50°C
Non-operation: -40°C to +60°C
Display 7" color LCD (800×480)
Weight Without Package 2.9 kg ± 0.2 kg; With Package 3.5 kg ± 0.5 kg
Dimensions 313.1 mm × 160.8 mm × 122.4 mm

Package Contents

  • Digital Oscilloscope RIGOL DS1102Z-E — 1 pc.
  • Power Cord — 1 pc.
  • USB Cable — 1 pc.
  • Passive Probes — 2 pcs.
  • User Manual — 1 pc.
Specifications
Screen Size
  • 7.0" TFT display
Number of channels
  • dual-channel
Bandwidth
  • 100 MHz
Type
  • desktop
Sample Rate
  • 1 GS/s
Storage Capacity
  • 24 MB
