Digital Oscilloscope RIGOL DS4022
id: 834372
Digital Oscilloscope RIGOL DS4022
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Overview
Video
Video
Video
Video
110, 220 V Warranty: 36 months
Dual channel digital oscilloscope with 200 MHz bandwidth, 4 GSa/s real-time sample rate, 9" display and 110,000 waveforms/sec acquisition. Read more
Discontinued
You may also like
Desktop 4-channel phosphor digital oscilloscope with 500 MHz bandwidth, 5 GSa/s real-time sample rate, 250 Mpts memory, 10.1" display and up to 110,000 waveforms/sec capture rate.
ID: 885455 14 kg
Desktop 4-channel phosphor digital oscilloscope with 1 GHz bandwidth, 5 GSa/s real-time sample rate, 250 Mpts memory, 10.1" display and up to 110,000 waveforms/sec capture rate.
ID: 887335 14 kg
Description

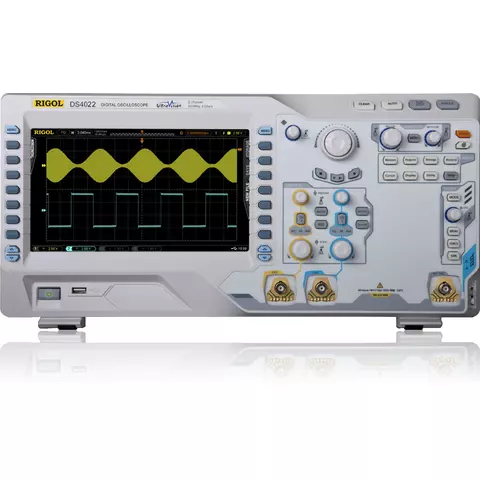

RIGOL DS4022 digital oscilloscope is a new generation high-quality dual-channel oscilloscope. This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS4022 is ideal for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.
Features
- Bandwidth: 200 MHz.
- 2 analog channels.
- Real-time sample rate: 4 GSa/s .
- Memory depth: 140 million points.
- Auto measurements of 22 waveform parameters.
- Vertical sensitivity: 1 mV/div – 10V/div.
- Versatile trigger modes: Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay.
- Math functions: Add, Subtract, Multiply, FFT.
- 9-inch color LCD.
- Standard interface: USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out, to support USB flash memory and USB printer.
- Supported platforms: Windows XP (32Bit + 64Bit), Windows Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit).
- The recommended calibration interval period is one year.
- Able to identify probe type automatically.
- Real-time waveform recording, waveform playback, and waveform analysis.
- Multi-language user interface.
- Built-in help system.
- Compact design, small dimensions, light weight.
Technical Specifications
| Bandwidth | 200 MHz |
| Real time sample rate | 4.0 GSa/s (single-channel), 2.0 Gsa/s (dual-channel) |
| Vertical sensitivity | 1 mV/div – 10 V/div |
| Memory depth | 140 million points |
| Waveform acquisition rate | 110,000 waveforms per second |
| Vertical resolution | 8 bits |
| Math | Add, Subtract, Multiply, FFt, customizable user defined |
| Output voltage | ~ 3 V, peak-peak |
| Frequency | 1 kHz |
| Trigger modes | Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay |
| Power | Maximum 120W |
| Power voltage | 100-120 V/50 Hz/60 Hz/400 Hz 100-240 V/50 Hz/60 Hz |
| Temperature range | Operation: 0°C to +50°C Non-operation: -20°C to +70°C |
| Cooling method | Fan |
| Humidity range | Under +35°C: ≤90% relative humidity +35°C to +50°C: ≤60% relative humidity |
| Altitude | Operation: under 3,000 meters Non-operation: under 15,000 meters |
| Display | 9" WVGA color LCD (800×480) |
| Weight | 4.8 kg (± 0.2 kg) |
| Dimensions | 440.0 × 218.0 × 130.0 mm |
Supported Probes
- Oscilloscope Probe RIGOL RP2200
- Oscilloscope Probe RIGOL RP3300
- Oscilloscope Probe RIGOL RP3500
- Oscilloscope Probe RIGOL RP5600
- Oscilloscope Probe RIGOL RP6150
- Oscilloscope Probe RIGOL RP1300H
- Oscilloscope Probe RIGOL RP1050H
- Oscilloscope Probe RIGOL RP7150
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- RIGOL DS4022 digital oscilloscope (1 pc.)
- Power cable (1 pc.)
- Front panel cover (1 pc.)
- Passive probes (2 pcs.)
- USB data cable (1 pc.)
Package weight: 7.1 kg (± 1.0 kg)
