Desktop 4-channel phosphor digital oscilloscope with 500 MHz bandwidth, 5 GSa/s real-time sample rate, 250 Mpts memory, 10.1" display and up to 110,000 waveforms/sec capture rate.
ID: 885455 14 kg

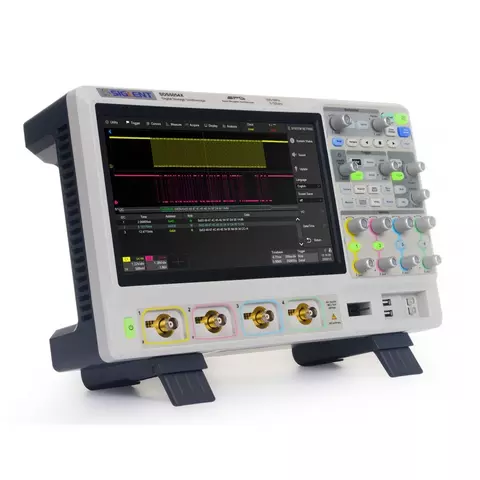

Super Phosphor Oscilloscope SIGLENT SDS5104X
id: 887335
Super Phosphor Oscilloscope SIGLENT SDS5104X
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 6129.03
Overview
Video
Video
Video
Video
Video
14 kg Warranty: 36 months
This item is delivered upon order. The current price and delivery time require clarification.
Desktop 4-channel phosphor digital oscilloscope with 1 GHz bandwidth, 5 GSa/s real-time sample rate, 250 Mpts memory, 10.1" display and up to 110,000 waveforms/sec capture rate. Read more
USD 6129.03
Buy wholesale and save
You may also like
ID: 876448
Digital Oscilloscope RIGOL MSO7054
USD 6999.00
Mixed signal oscilloscope with 4 analog channels, 16 digital channels, 500 MHz bandwidth, 10 GSa/s real-time sample rate, up to 600,000 waveforms/sec capture rate and 10.1" display.
ID: 876448 7 kg
ID: 907498
Digital Oscilloscope SIGLENT SDS6054A
USD 6365.81
4 channel Super Phosphor Oscilloscop with a 500 MHz bandwidth, a sample rate of 5 GSa/s, a maximum memory depth of 500 MB and a 12.1" display.
ID: 907498 9 kg
ID: 907500
Digital Oscilloscope SIGLENT SDS6104A
Price coming soon
4 channel Super Phosphor Oscilloscop with 1 GHz bandwidth, a sample rate of 5 GSa/s, a maximum memory depth of 500 MB and a 12.1" display.
ID: 907500 9 kg
Frequently bought together
ID: 894918
Signal Generator SIGLENT SSG5060X-V
USD 10407.10
Single-channel signal generator with a frequency range of 9 kHz~6 GHz (CW mode) and 10 MHz~6 GHz (IQ mode). Frequency resolution: 0.001 Hz.
ID: 894918 9 kg
2 channel waveform generator with a frequency range of 1 µHz to 200 MHz with 2.4 GSa/s sampling rate (16 bit) and 20 Mpts memory. Bandwidth: 200 MHz.
ID: 873661 6 kg 110, 220
Dual-channel function/arbitary waveform generator with 40 MHz max. output frequency, 1.2 GSa/s sample rate, 16 bits vertical resolution.
ID: 862791 7.5 kg 110, 220
Dual-channel function/arbitary waveform generator with 80 MHz max. output frequency, 1.2 GSa/s sample rate, 16 bits vertical resolution.
ID: 862792 6 kg 110, 220
Dual-channel waveform generator with 60 MHz max. frequency, 200 MSa/s sample rate, and 8 Mpts (standard) of arbitrary waveform memory.
ID: 844215 8.5 kg 110, 220
Dual-channel function/arbitary waveform generator with 120 MHz max. output frequency, 1.2 GSa/s sample rate, 16 bits vertical resolution.
Availability in stock:
HK
ID: 862793 6 kg 110, 220
ID: 868138
Function/Arbitrary Waveform Generator SIGLENT SDG1032X
USD 299.03
USD 299.00
Dual-channel function/arbitrary waveform generator with 30 MHz max. output frequency, 150 MSa/s sample rate, 14 bits vertical resolution.
ID: 868138 6 kg 110, 220
ID: 896648
Arbitrary Waveform / Function Generator RIGOL DG1022Z
USD 542.73
USD 493.39
2-channel waveform generator with 25 MHz max. frequency, 200 MSa/s sample rate, and 2 Mpts (standard) of arbitrary waveform memory. Unique SiFiII technology.
ID: 896648 7 kg
I2S trigger and decode license for SIGLENT oscilloscopes of the SDS5000X series.
ID: 887339 0.001 kg
MSO function software option for SIGLENT SDS5000X series oscilloscopes. Adds 16-channel, 1.25 GSa/s, 62.5 Mpts Logic Analyzer.
ID: 887302 0.001 kg
FlexRay trigger and decode license for SIGLENT oscilloscopes of the SDS5000X series.
ID: 887336 0.001 kg
MIL-STD-1553B trigger and decode license for SIGLENT oscilloscopes of the SDS5000X series.
ID: 887337 0.001 kg
CAN FD trigger and decode license for SIGLENT oscilloscopes of the SDS5000X series.
ID: 887338 0.001 kg
ID: 917430
Active Probe SIGLENT SAP2500
Price coming soon
2.5 GHz, 10x attenuation, 1 MΩ active probe for use with SIGLENT SAPBus enabled oscilloscopes
ID: 917430 0.5 kg
Description
SIGLENT SDS5104X is a four-channel Super Phosphor Oscilloscope with a bandwidth of 1 GHz, a sample rate of 5 GSa/s, and a standard record length of 250 Mpts. The tool is equipped with a digital voltmeter.
Features
- New generation of SPO (Super Phosphor Oscilloscope) technology.
- 4 analog + 16 digital channels.
- 256-level intensity grading and color temperature display modes.
- Trigger types: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Video (HDTV supported).
- Supports serial bus trigger and decoding; protocols: I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD-1553B.
- Low background noise, supports 0.5 mV/div to 10 V/div voltage scales.
- Segmented acquisition (sequence) mode, dividing the maximum record length into multiple segments (up to 100,000). Its replay and analysis.
- Search and navigation.
- 39 automatic measurement function.
- Supports statistics with histogram, gating measurement, math measurement, history measurement and ref measurement.
- Math measurement: FFT, addition, subtraction, multiplication, division, integration, differential, square root.
- High-Speed hardware-based Average, Eres (Enhanced Resolution).
- Mask Test function.
- Large 10,1 inch TTFT-LCD display with 1024 × 600 resolution.
- Touch screen supports multi-touch gestures.
- Supports external mouse and keyboard.
- 10 types of one-button shortcuts.
- Interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11, Telnet, Socket, Web), Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA output.
- Built-in web server supports remote control by the LAN port using a web browser.
- Supports SCPI remote control commands.
Technical Specifications
| Model | SDS5032X | SDS5034X | SDS5052X | SDS5054X | SDS5102X | SDS5104X | |||
|---|---|---|---|---|---|---|---|---|---|
| Channels | 2 | 4 | 2 | 4 | 2 | 4 | |||
| Bandwidth | 350 MHz | 350 MHz | 500 MHz | 500 MHz | 1 GHz | 1 GHz | |||
| Sample Rate (Max.) | 5 GSa/s | ||||||||
| Memory Depth | 250 Mpts | ||||||||
| Math Functions | +, -, *, /, FFT, d/dt ,∫dt,√ | ||||||||
| FFT Windows | Rectangular, Blackman, Hanning, Hamming, Flattop | ||||||||
| Display | 10,1 inch TFT LCD (1024 × 600) | ||||||||
| Interface | USB Host, USB Device (USBTMC), LAN (VXI-11, Telnet, Socket, Web), Pass/Fail, Trigger Out, 10 MHz In, 10 MHz Out, VGA output | ||||||||
| Dimensions | 370 × 231 × 144 mm | ||||||||
| Weight | 3.9 kg | ||||||||
Video
You'll find even more video reviews in the Video tab. Go and check it out!
User Manual
Download SIGLENT SDS5104X User Manual.
Package Contents
- SIGLENT SDS5104X Super Phosphor Oscilloscope — 1 pc.
- USB cable — 1 pc.
- Passive probe — 4 pcs.
- Power cord — 1 pc.
- Certificate of calibration — 1 pc.
- User manual — 1 pc.
