Description

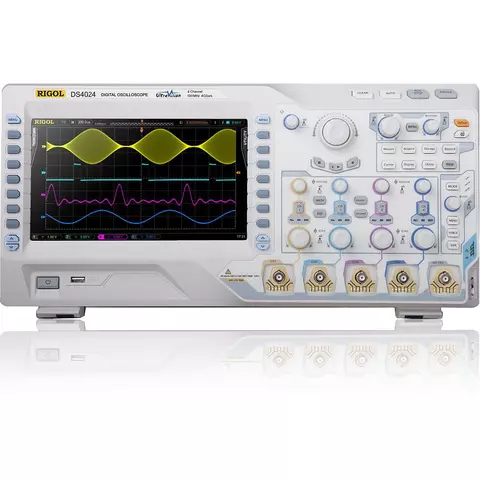

RIGOL DS4024 digital oscilloscope is a new generation high-quality four-channel oscilloscope. This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS4024 is ideal for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.
RIGOL DS4024 Digital Oscilloscope Features
- Bandwidth: 200 MHz.
- 4 analog channels.
- Real-time sample rate: 4 GSa/s .
- Memory depth: 140 million points.
- Auto measurements of 22 waveform parameters.
- Vertical sensitivity: 2 mV/div – 5 V/div.
- Versatile trigger modes: Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay.
- Math functions: Add, Subtract, Multiply, FFT.
- 9-inch color LCD.
- Standard interface: USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out, to support USB flash memory and USB printer.
- Supported platforms: Windows XP (32Bit + 64Bit), Windows Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit).
- The recommended calibration interval period is one year.
- Able to identify probe type automatically.
- Real-time waveform recording, waveform playback, and waveform analysis.
- Multi-language user interface.
- Built-in help system.
- Compact design, small dimensions, light weight.
RIGOL DS4024 Digital Oscilloscope User Manual
Download RIGOL DS4024 digital oscilloscope user manual
RIGOL DS4024 Digital Oscilloscope Software
Download RIGOL DS4024 Digital Oscilloscope Software.
RIGOL DS4024 Digital Oscilloscope Technical Specifications
| Bandwidth | 200 MHz |
| Channels | 4 |
| Real time sample rate | 4.0 GSa/s |
| Memory depth | 140 million points |
| Waveform acquisition rate | 110,000 waveforms per second |
| Vertical sensitivity range | 2 mV/div – 5 V/div |
| Offset range | 2 mV/div – 5 V/div ± 40 V |
| Vertical resolution | 8 bits |
| Math | Add, Subtract, Multiply, FFt, customizable user defined |
| Output voltage | ~ 3 V, peak-peak |
| Frequency | 1 kHz |
| Trigger modes | Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay |
| Power | 120 W (max.) |
| Power voltage | 100-120 V/50 Hz/60 Hz/400 Hz 100-240 V/50 Hz/60 Hz |
| Temperature range | Operation: 0°C to +50°C Non-operation: -20°C to +70°C |
| Cooling method | Fan |
| Humidity range | Under +35°C: ≤90% relative humidity +35°C to +50°C: ≤60% relative humidity |
| Altitude | Operation: under 3,000 meters Non-operation: under 15,000 meters |
| Display | 9" WVGA color LCD (800×480) |
| Weight | 4.8 kg (± 0.2 kg) |
| Dimensions | 440.0 × 218.0 × 130.0 mm |
RIGOL DS4024 Digital Oscilloscope Supported Probes
- Oscilloscope Probe RIGOL RP2200
- Oscilloscope Probe RIGOL RP3300
- Oscilloscope Probe RIGOL RP3500
- Oscilloscope Probe RIGOL RP5600
- Oscilloscope Probe RIGOL RP6150
- Oscilloscope Probe RIGOL RP1300H
- Oscilloscope Probe RIGOL RP1050H
- Oscilloscope Probe RIGOL RP7150
Video
You'll find even more video reviews in the Video tab. Go and check it out!
RIGOL DS4024 Digital Oscilloscope Package Contents
- RIGOL DS4024 digital oscilloscope (1 pc.)
- Power cable (1 pc.)
- Front panel cover (1 pc.)
- Passive probes (4 pcs.)
- USB data cable (1 pc.)
Package weight: 7.1 kg (± 1.0 kg)
