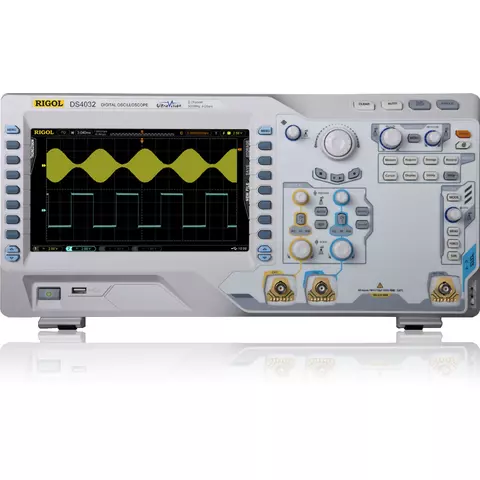

Digital Oscilloscope RIGOL DS4032

id: 834370
10 kg 110, 220 V Warranty: 36 month (s)
Dual-channel digital oscilloscope with 350 MHz bandwidth, 4 GSa/s real-time sample rate, 9" color LCD and 110,000 waveforms/sec acquisition.
USD 3800.00
Contact
sales team
USD 3800.00
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

RIGOL DS4032 digital oscilloscope is a new generation high-quality dual-channel oscilloscope (350 MHz). This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS4032 provides the waveform acquisition rate up to 110.000 waveforms per second, that ensures a more rapid capturing of instantaneous or abnormal signals for accelerating signal analysis and fault tracing. Convenient 9-inch color liquid-crystal display of the oscilloscope ensures bright and sharp waveform representation.

RIGOL DS4032 digital oscilloscope is ideal for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training.

RIGOL DS4032 Digital Oscilloscope Features

  • Bandwidth: 350 MHz.
  • 2 analog channels.
  • Real-time sample rate: 4 GSa/s.
  • Memory depth: 140 million points.
  • Auto measurements of 22 waveform parameters.
  • Real-time waveform recording, waveform playback, and waveform analysis.
  • Original UltraVision technology.
  • 9-inch color LCD.
  • Vertical sensitivity: 2 mV/div – 5 V/div.
  • Versatile trigger modes: Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay.
  • Math functions: Add, Subtract, Multiply, FFT.
  • Standard interface: USB Host & Device, VGA, LXI, Trig Out, 10 MHz In/Out, to support USB flash memory and USB printer.
  • Supported platforms: Windows XP (32Bit + 64Bit), Windows Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit).
  • The recommended calibration interval period is one year.
  • Able to identify probe type automatically.
  • Multi-language user interface.
  • Built-in help system.
  • Low noise level.
  • Compact design, small dimensions, light weight.

RIGOL DS4032 Digital Oscilloscope User Manual

Download RIGOL DS4032 Digital Oscilloscope User Guide.

RIGOL DS4032 Digital Oscilloscope Software

Download RIGOL DS4032 Digital Oscilloscope Software.

RIGOL DS4032 Digital Oscilloscope Technical Specifications

Bandwidth 350 MHz
Channels 2
Real time sample rate 4.0 GSa/s
Memory depth 140 million points
Waveform acquisition rate 110,000 wfms/s
Vertical sensitivity range 2 mV/div – 5 V/div
Offset range 2 mV/div – 5 V/div ± 40 V
Vertical resolution 8 bits
Math Add, Subtract, Multiply, FFt, customizable user defined
Output voltage ~ 3 V, peak-peak
Frequency 1 kHz
Trigger modes Edge, Pulse, Slope, Video, Pattern, RS232/UART, I²C, CAN, USB, FlexRay
Power 120 W (max.)
Power voltage 100-120 V/50 Hz/60 Hz/400 Hz
100-240 V/50 Hz/60 Hz
Temperature range Operation: 0°C to +50°C
Non-operation: -20°C to +70°C
Cooling method Fan
Humidity range Under +35°C: ≤90% relative humidity
+35°C to +50°C: ≤60% relative humidity
Altitude Operation: under 3,000 meters
Non-operation: under 15,000 meters
Electromagnetic compatibility 2004/108/EC
Display 9" WVGA color LCD (800×480)
Weight 4.8 kg (± 0.2 kg)
Dimensions 440.0 × 218.0 × 130.0 mm

RIGOL DS4032 Digital Oscilloscope Supported Probes

  • Oscilloscope Probe RIGOL RP2200
  • Oscilloscope Probe RIGOL RP3300
  • Oscilloscope Probe RIGOL RP3500
  • Oscilloscope Probe RIGOL RP5600
  • Oscilloscope Probe RIGOL RP6150
  • Oscilloscope Probe RIGOL RP1300H
  • Oscilloscope Probe RIGOL RP1050H
  • Oscilloscope Probe RIGOL RP7150

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

RIGOL DS4032 Digital Oscilloscope Package Contents

  • RIGOL DS4032 digital oscilloscope (1 pc.)
  • Power cable (1 pc.)
  • Front panel cover (1 pc.)
  • Passive probes (2 pcs.)
  • USB data cable (1 pc.)

Package weight: 7.1 kg (± 1.0 kg)

Specifications
Number of channels
  • dual-channel
Type
  • desktop
Storage Capacity
  • 140 MB
Sample Rate
  • 4 GSa/s
Bandwidth
  • 350 MHz
Screen Size
  • 9,0" TFT LCD
