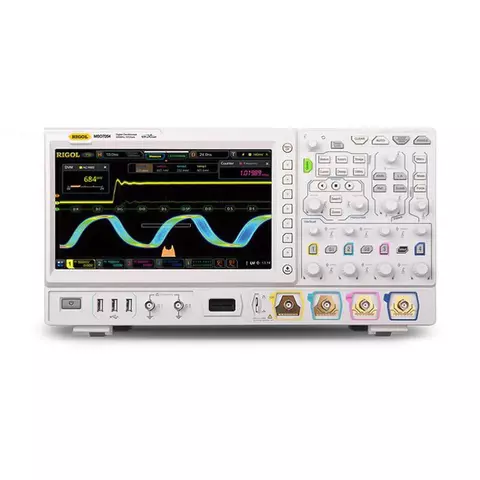

Digital Oscilloscope RIGOL DS7034

id: 876445
Digital Oscilloscope RIGOL DS7034
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 5099.00

Overview

Digital Oscilloscope RIGOL DS7034
Brand: RIGOL
7 kg Warranty: 36 months
Digital oscilloscope with 4 analog channels, 350 MHz bandwidth, 10 GSa/s real-time sample rate, up to 600 000 waveforms/sec capture rate and 10.1" display. Read more
USD 5099.00
Buy wholesale and save
USD 5099.00
Impossible to estimate the shipping cost

Description

RIGOL DS7034 is a four-channel digital oscilloscope with a bandwidth of 350 MHz and a maximum sampling rate of 10 GSa/s. It integrates the oscilloscope, the digital voltmeter, the counter and totalizer, and the protocol analyzer.

This compact lightweight digital oscilloscope provides exceptionally accurate waveform viewing and measurements. RIGOL DS7034 provides up to 600 000 wfms/s waveform acquisition rate.

RIGOL DS7034 digital oscilloscope is perfect for production tests, field service, research, design and all other applications involving analog/digital circuit tests and troubleshooting, as well as education and training

Features

  • Bandwidth: 350 MHz.
  • 4 channels.
  • Real-time sample rate: 10 GSa/s.
  • Memory depth: 100 Mpts.
  • Innovative UltraVision technology.
  • 10,1-inch color LCD.
  • Vertical sensitivity range: 1 mV/div - 10 V/div
  • Compact design, small dimensions, light weight.
  • Remote control.

Technical Specifications

Model DS7054 DS7034 DS7024 DS7014
Bandwidth 500 MHz 350 MHz 200 MHz 100 MHz
Channels 4
Real-time sample rate 10 GSa/s
Memory depth 100 Mpts (single channel)
Waveform acquisition rate 600 000 wfms/s
Vertical sensitivity range 1 mV/div - 10 V/div
Vertical resolution 8 bit
Input impedance 1 MΩ ± 1%, 50 Ω ± 1%
Maximum Input Voltage CAT I 300 Vrms, 400 Vpk
Automatic measurements Vmax, Vmin, Vpp, Vtop, Vbase, Vamp, Vupper, Vmid, Vlower, Vavg, VRMS, Per. VRMS,
Overshoot, Preshoot, Area, Period Area, Std Dev,
Period, Frequency, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Positive Pulse Count,
Negative Pulse Count, Rising Edge Count, Falling Edge Count, Tvmax, Tvmin, +Slew Rate,
-Slew Rate
Interfaces USB, LAN, GPIB (optional)
` General characteristics
Display 10,1", (1024×600)
Dimensions, mm 410 × 224 × 135
Weight, kg
 3,9

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

User Manual

PDF Download Rigol DS7034 User Manual.

Package Contents

  • Digital Oscilloscope Rigol DS7034 — 1 pc.
  • Power cord — 1 pc.
  • USB cable — 1 pc.
  • RP35000A passive probes (500 MHz) — 4 pcs.
  • Front panel cover — 1 pc.

Additional accessories and software

Specifications

Screen Size
  • 10.1" TFT display
Number of channels
  • 4-channel
Type
  • desktop
Bandwidth
  • 350 MHz
Storage Capacity
  • 100 MB
Sample Rate
  • 10 GSa/s

Video

Youtube video
Youtube video
Youtube video
Youtube video
