Digital Oscilloscope SIGLENT SDS1022DL

id: 837022
5.1 kg 110, 220 V Warranty: 36 month (s)
Dual-channel digital oscilloscope with 25 MHz bandwidth, 500 MSa/s real-time sample rate, and 10 GSa/s equivalent sample rate.
USD 209.00
Contact
sales team
USD 209.00
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Video
Delivery
Payment
Warranty
Overview

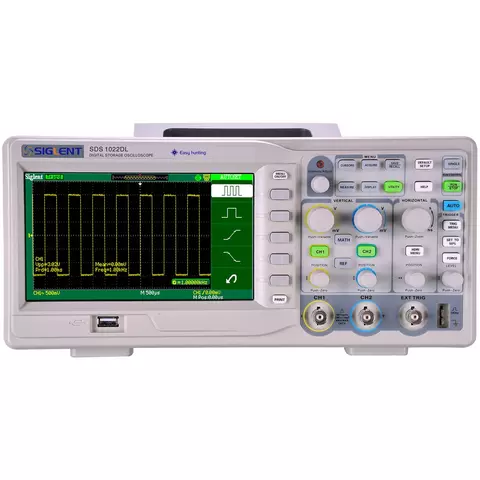

SIGLENT SDS1022DL digital oscilloscope is a desktop dual-channel digital oscilloscope with a 25 MHz bandwidth. 7-inch color LCD of the oscilloscope ensures bright and vivid waveform representation and backlit buttons ensure user comfort. SIGLENT SDS1022DL has a multi-language user interface and online help.

SIGLENT SDS1022DL digital oscilloscope is a good choice for industrial control and measurements, R&D, electronic circuit design and testing and all other applications involving testing and troubleshooting, as well as education and training.

Software

Download SIGLENT SDS1022DL digital oscilloscope software

Features

  • Bandwidth: 25 MHz
  • 2 channels + 1 external triggering channel
  • Real-time sample rate: 500 MSa/s
  • Equivalent sample rate: 10 GSa/s
  • Memory depth: 32 Kpts
  • Vertical sensitivity range: 2 mV/div – 10 V/div
  • Versatile trigger modes: Edge, Pulse, Slope, Video and Alternate
  • 7" TFT color LCD
  • Backlit buttons
  • Unique digital filter and data recorder function
  • USB host, USB device, RS-232
  • Pass/Fail Output
  • Multi-language menu (12 languages)
  • Online help
  • Compact design for saving desktop space.

Technical Specifications

Bandwidth 25 MHz
Channels 2 + 1 external triggering channel
Real time sample rate Single channel mode: 500 MSa/s
Dual channel mode: 250 MSa/s
Equivalent sample rate 10 GSa/s
Memory depth 32 Kpts
Vertical sensitivity range 2 mV/div – 10 V/div
Vertical resolution 8 bits
Rise time ≤14 ns
Time base range 2.5 ns/div – 50 s/div
Input impedance 1 MΩ || 17 pF
Cursor measurements Manual, Track, Auto measure
Math Add, Subtract, Multiply, Divide, FFT
Trigger types Edge, Pulse, Video, Slope, Alternate
Input coupling DC, AC, GND
General Characteristics
Display 7" TFT color LCD (480 × 234)
Interface USB host, USB device, RS-232, P/F output
Power source AC 100 ~ 240 V, 47 ~ 440 Hz, 50 VA Max
Max. input voltage 1 MΩ 17 pF 400 V (DC + PK-PK) CATI, CATII

Additional Information

Download SIGLENT SDS1022DL Data Sheet.

Video

We introduce the video review of SIGLENT SDS1000 series of oscilloscopes on the example of SIGLENT SDS1102CML Digital Oscilloscope.

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Package Contents

  • SDS1022DL digital oscilloscope (1 pc.)
  • Probes (1 pair)
  • Power supply (1 pc.)
  • Power cable (1 pc.)
Specifications
Screen Size
  • 7.0" TFT display
Number of channels
  • dual-channel
Storage Capacity
  • 32 kB
Bandwidth
  • 25 MHz
Type
  • desktop
Sample Rate
  • 500 MS/s
Substitution
Video
Youtube video
Youtube video
Youtube video
Youtube video
Youtube video
Delivery
Payment
Warranty
Digital Oscilloscope SIGLENT SDS1022DL - Short description
