Digital Oscilloscope SIGLENT SDS1102CML
id: 834718
Digital Oscilloscope SIGLENT SDS1102CML
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Overview
Video
Video
Video
Video
Video
5.1 kg 110, 220 V Warranty: 24 months
Desktop dual-channel digital oscilloscope with 100 MHz bandwidth, 1 GSa/s real-time sample rate, 50 GSa/s equivalent sample rate, 2 M memory. Read more
Discontinued
You may also like
Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
ID: 870200 6 kg 110, 220
2-channel digital oscilloscope with 150 MHz bandwidth, 1 GSa/s real-time sample rate, and 50 GSa/s equivalent sample rate, 2 M memory, LAN interface.
ID: 868931 6 kg 110, 220
Description

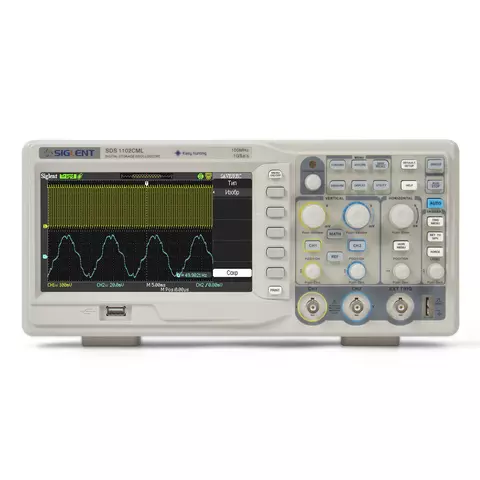

SIGLENT SDS1102CML Digital Oscilloscope is a compact desktop dual-channel digital oscilloscope with a 100 MHz bandwidth. 7-inch TFT color liquid-crystal display of the oscilloscope ensures bright and vivid waveform representation and backlit buttons ensure user comfort. 2 Mpts memory allows storing up to 20 waveforms and 10 setups. SIGLENT SDS1102CML has a multi-language user interface and online help.
SIGLENT SDS1102CML Digital Oscilloscope is a good choice for industrial control and measurements, R&D, electronic circuit design and testing and all other applications involving testing and troubleshooting, as well as education and training.
Software
Download SIGLENT SDS1102CML digital oscilloscope software
Features
- Bandwidth: 100 MHz.
- 2 channels + 1 external triggering channel.
- Real-time sample rate: 1 GSa/s.
- Equivalent sample rate: 50 GSa/s.
- Memory: 2 Mpts.
- Vertical sensitivity range: 2 mV/div – 10 V/div.
- Versatile trigger modes: Edge, Pulse, Slope, Video and Alternate.
- 7" TFT color LCD, bright and vivid waveform display.
- Backlit buttons.
- Unique digital filter and data recorder function.
- USB Host, USB Device, RS-232.
- Pass/Fail Output.
- Direct print to PictBridge compatible printers via USB Device interface.
- Multi-language display (12 languages): English, French, Spanish, Portuguese, German, Italian, Russian, Arabic, Japanese, Korean, Simplified Chinese, Traditional Chinese.
- Online help.
- Safety standards: EMC: EN61326; LVD: EN61010-1.
- Compact design for saving desktop space.
Technical Specifications
| Bandwidth | 100 MHz | |
| Channels | 2 + 1 ext. ch. | |
| Real time sample rate | Single channel mode: 1 GSa/s Dual channel mode: 500 MSa/s |
|
| Equivalent sample rate | 50 GSa/s | |
| Memory depth | 2Mpts | |
| Vertical sensitivity range | 2 mV/div – 10 V/div | Vertical resolution | 8 bits |
| Rise time | ≤3.5 ns | |
| Time base range | 2.5 ns/div – 50 s/div | |
| Input impedance | 1 MΩ || 17 pF | |
| Cursor measurements | Manual, Track, Auto measure | |
| Math | Add, Subtract, Multiply, Divide, FFT | |
| Trigger modes | Edge, Pulse, Video, Slope, Alternate | |
| Storage | Internal: 10 setups, 20 waveforms (storage/recall), 2 reference waveforms USB: BMP, CSV, waveforms and setups |
|
| Input coupling | DC, AC, GND | |
| General Characteristics | ||
|---|---|---|
| Display | 7" TFT color LCD (480 × 234) | |
| Interface | USB Host, USB Device, RS-232, P/F output | |
| Power source | AC100 ~ 240 V, 47 ~ 440 Hz, 50 VA Max | |
| Max. input voltage | 1 MΩ 17 pF 400 V (DC + PK-PK) CATI, CATII | |
| Weight | 2.5 kg | |
| Dimensions | 305 × 133 × 154 mm | |
Additional Information
Download SIGLENT SDS1102CML Data Sheet.
