Digital Oscilloscope / Signal Generator FNIRSI 1014D
id: 902549

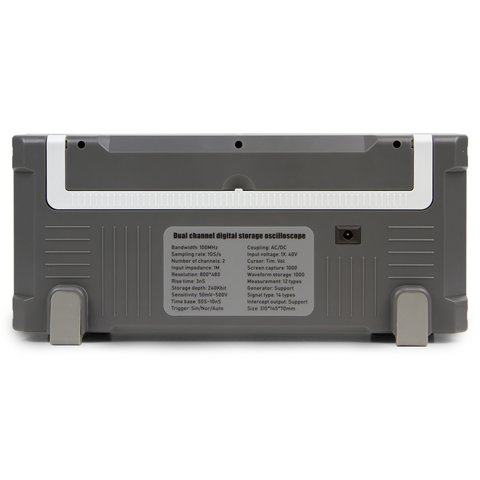

Digital Oscilloscope / Signal Generator FNIRSI 1014D
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 175.00
Overview
Video
2.5 kg Warranty: 6 months
Dual-channel oscilloscope with a built-in signal generator. Features 100 MHz bandwidth, 1 GSa/s sampling rate, 240 KB storage depth, 7'-inch 800x480 TFT screen. Read more
USD 175.00
Buy wholesale and save
You may also like
2-channel digital oscilloscope with 100 MHz bandwidth, 1 GSa/s real-time sample rate, and 50 GSa/s equivalent sample rate, 2 M memory, LAN interface.
Availability in stock:
HK
ID: 869146 6 kg 110, 220
Description
FNIRSI 1014D is a 100 MHz bandwidth dual-channel oscilloscope with a built-in waveform generator. The oscilloscope features a high real-time sampling rate of 1 GS/s, 240 kB memory, a large 7-inch display with 800 × 480 resolution, and advanced features for capturing, analyzing, and recording measurement results. Besides, the device features high voltage protection, which ensures safe operation with signals up to 400 V. Built-in generator generates 14 types of signals, voltage resolution is 8 bit, voltage 5 Vpeak-peak. FNIRSI 1014D is equipped with a USB interface to connect to the computer. This oscilloscope is designed for diagnostics and tuning of radio and electronic equipment.
Features
- Compact and functional oscilloscope.
- Large 7-inch TFT display (800 × 480 pixels).
- High voltage protection: built-in module provides protection up to 400 V.
- Built-in 1 GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.
- Automatic measurement function.
- Roll function.
- Lissajous figures graphic display function.
- Screen brightness adjustment function.
Technical Specifications
| Oscilloscope | |
|---|---|
| Channels | 2 |
| Bandwidth | 100 MHz |
| Real-time Sample Rate | 1 GS/s |
| Storage Depth | 240 kB |
| Input | |
| Input Coupling | DC, AC |
| Input Impedance | 1 MΩ |
| Probe Attenuator | 1 X, 10 X |
| Highest Test Voltage | 40 V (1 X), 400 V (10 X) |
| Horizontal System | |
| Time Base Scale | 50 s/div - 10 ns/div |
| Vertical System | |
| Time Base Scale | 50 mV/div - 500 V/div |
| Rise Time | < 3 ns |
| Vertical Resolution | 8 bit |
| Voltage Accuracy | ± 5% |
| Frequency Accuracy | ± 0,01% |
| Trigger System | |
| Trigger Mode | Auto, Normal, Single |
| Trigger Type | Rising/Falling edge |
| Measuring System | |
| Automatic Measurements | VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time-, Period |
| Cursor Measurements | XY, Y trigger |
| Math | FFT |
| Signal Generator | |
| Waveform | 14 types |
| Bandwidth | 10 MHz (sine), resolution 1 Hz |
| Vertical Resolution | 14 bit |
| General Specifications | |
| Display | color TFT display, 7 inches, 800 × 480 pixels |
| Interface | USB (5 V / 2 A) |
| Built-in Memory | 1 GB |
| Waveform Storage | 1000 pictures + 1000 waveforms |
| Dimensions | 310 mm × 145 mm × 70 mm |
| Net Weight | 1500 g |
| Gross Weight | 1632 g |
Video
Package Contents
- Digital Oscilloscope / Signal Generator FNIRSI 1014D — 1 pc.
- Oscilloscope Probe — 2 pcs.
- USB Cable — 1 pc.
- Power Cord — 1 pc.
- BNC Crocodile Clip — 1 pc.
- User Manual — 1 pc.
