EXFO FIP-425B Wireless Fiber Inspection Probe
Overview
Description

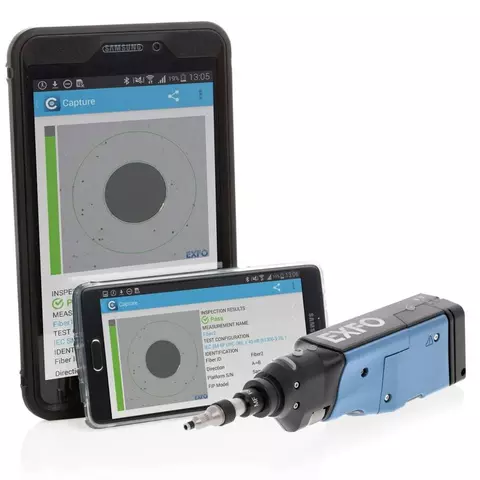

EXFO FIP-425B is an advanced wireless inspection probe designed to carry out a comprehensive check of the health status and quality of optical connectors, which directly impact the quality of fiber optical connections, in a fully automated mode. It integrates a number of core functions necessary for inspecting and testing optical patchcord connectors and optical patch panels.
The FIP-425B has an image centering feature to deliver optimized image quality, and automatically captures and analyzes obtained data in line with preprogrammed IEC, IPC or custom standards to provide accurate results in a single step.
The automatic image centering feature enables you to inspect optical connectors without manual repositioning of the probe, while wireless connectivity eliminates the need for physical connection between the probe and the display device allowing for a wire-free user experience.
The high accuracy of assessment provided by the EXFO FIP-425B eliminates false-positive optical fiber test results that may involve additional costs as tolerances for insertion loss (IL) and optical return loss (ORL) decrease with higher data transfer rates.
Thanks to three available magnification levels enabling the detection of imperceptible contaminants at the periphery of optical connectors, a convenient color indication of connector test results, small size, flexibility, rugged design, and safety for the eyes, EXFO FIP-425B is an excellent choice for fiber optical networks professionals.
Features
- One-step connector quality testing process;
- Integrated connector end-face analysis (IEC, IPC or custom standards) via ConnectorMax2 software;
- Pass/fail LED indicator for an instant screenless troubleshooting of connector health status;
- Optimized digital image quality thanks to the availability of three magnification levels;
- Automatic image centering;
- Image capture mode;
- Real time display of video images of connector end-faces;
- Connectable to PCs and laptops, MaxTester OTDRs, FTB-1, FTB-2 and FTB-4 tests platforms, EXFO MAX-FIP stand-alone displays, EXFO IQS platforms, as well as iOS and Android devices, for the display of images from the inspection probe;
- Access to the ConnectorMax2 mobile application compatible with Android and iOS devices unlocking a variety of features;
- Full reporting capabilities on mobile devices;
- Compatible with a wide selection of interchangeable caps and patch panels.
Technical Specifications
| Resolution | 0.55 μm | ||
| Camera | 5-megapixel, CMOS | ||
| Visual detection capability | < 1 μm | ||
| Field of view | 912 × 912 μm (low magnification) | ||
| 608 × 608 μm (mid magnification) | |||
| 304 × 304 μm (high magnification) | |||
| Light source | Blue LED | ||
| Lighting technique | Coaxial | ||
| Digital magnification | 3 levels | ||

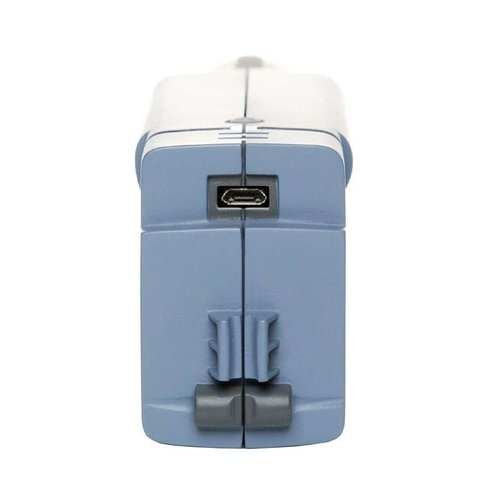

| Connector | micro USB | ||
| Connectivity | WiFi 802.11g | ||
| Frequency band | 2.4 GHz | ||
| OS compatibility | Android 4.4 and above, iOS 9 and above | ||
| Power | 1 × removable battery | ||
| Autonomy | 4 hrs | ||
| Distance range | 2.5 m | ||
| Operating temperature | -10°C – 40°C | ||
| Dimensions | 55 × 39 × 207 mm | ||
| Weight | 0.3 kg |
Specification Comparison Table for FIP-400B Series Inspection Probes
| Specification | |||||
| FIP-410B | FIP-420B | FIP-430B | FIP-425B | FIP-435B | |
|---|---|---|---|---|---|
| Triple magnification | ✓ | ✓ | ✓ | ✓ | ✓ |
| Image capture | ✓ | ✓ | ✓ | ✓ | ✓ |
| Automatic image centering | ✗ | ✓ | ✓ | ✓ | ✓ |
| Auto focus | ✗ | ✗ | ✓ | ✗ | ✓ |
| Automatic pass/fail analysis | ✗ | ✓ | ✓ | ✓ | ✓ |
| On-board pass/fail LED indicator | ✗ | ✓ | ✓ | ✓ | ✓ |
| Wi-Fi connection | ✗ | ✗ | ✗ | ✓ | ✓ |
| Manual scanning of multifiber/MPO connectors | ✓ | ✓ | ✓ | ✓ | ✓ |
| Automated testing of multifiber/MPO connectors | ✓ | ✓ | ✓ | ✓ | ✓ |
Package Contents
- EXFO FIP-425B inspection probe — 1 pc.
- FIPT-400-FC-SC 2.5 mm bulkhead adapter tip (FC, SC) with UPC type polishing (alternatively, an SC bulkhead adapter tip with APC type polishing) — 1 pc.
- FIPT-400-U25M 2.5 mm universal patchcord tip (FC, SC, ST, etc.) with UPC type polishing (alternatively, a 2.5 mm universal patchcord tip with APC type polishing) — 1 pc.
- GP-2225 micro USB cable — 1 pc.
- GP-2227 USB AC adapter — 1 pc.
- GP-2226 battery — 1 pc.
- GP-2175 protective cap — 1 pc.
- FIPT-BOX plastic tip organizer box — 1 pc.
- GP-3108 soft carrying pouch — 1 pc.
- CD with ConnectorMax2 software — 1 pc.
- Quick user guide — 1 pc.
