Function / Arbitrary Waveform Generator SIGLENT SDG6022X

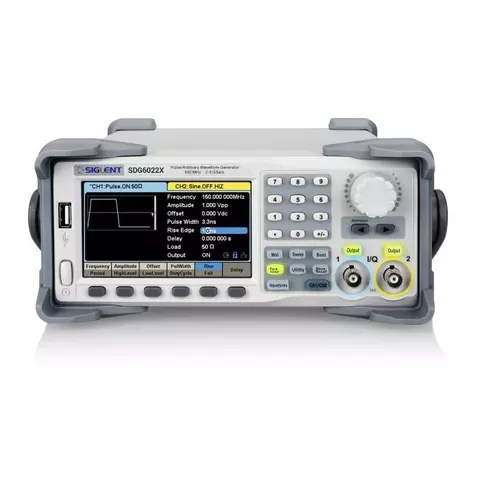

SIGLENT SDG6022X Function / Arbitrary Waveform Generator – used to create high quality signals featuring 200 MHz bandwidth, a maximum sample rate of 2.4 GSa/s and 16-bit vertical resolution. They also include proprietary TrueArb & EasyPulse technology that help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. Besides, it is a multi-function device which can generate Noise, IQ signals and PRBS patterns. These features enable the generator to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.

Features

• 20 Vpp maximum output amplitude, high fidelity output with 80dB dynamic range
• High-performance sampling system with 2.4 GSa/s sampling rate and 16-bit vertical resolution
• Multi-function signal generator, meeting requirements in wide range
• Sweep and Burst function
• Harmonics function
• Waveform Combining function
• Channel Coupling, Copy and Tracking function
• 196 built-in arbitrary waveforms
• High precision Frequency Counter
• Standard interfaces include: USB Host, USB Device (USBTMC), LAN (VXI-11, Socket, Telnet). Optional Interface: GPIB
• 4.3” touch screen display for easier operation

Technical Specifications

Special Features

True Arb Technology

Easy Pulse Technology

Rich Modulation Features

Burst Function

Sweep Function

Frequency Counter

Data Sheet

  Download SIGLENT SDG6000X Data Sheet.

Package Contents

• SDG6022X Function/Arbitrary Waveform Generator — 1 pc.
• Power cord — 1 pc.
• USB cable — 1 pcs.
• Software CD — 1 pc.
• BNC cable — 2 pcs.
