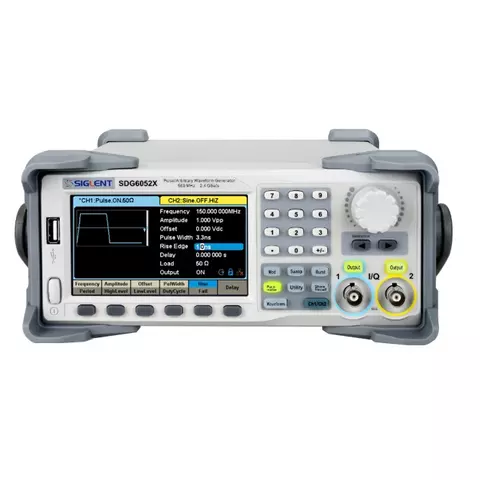

Function / Arbitrary Waveform Generator SIGLENT SDG6052X

id: 873685
7 kg Warranty: 36 month (s)
2 channel waveform generator with a frequency range of 1 µHz to 350 MHz with 2.4 GSa/s sampling rate (16 bit) and 20 Mpts memory. Bandwidth: 500 MHz.
USD 4750.00
Contact
sales team
USD 4750.00
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

SIGLENT SDG6052X Function / Arbitrary Waveform Generator – used to create high quality signals featuring 500 MHz bandwidth, a maximum sample rate of 2.4 GSa/s and 16-bit vertical resolution. They also include proprietary TrueArb & EasyPulse technology that help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. Besides, it is a multi-function device which can generate Noise, IQ signals and PRBS patterns. These features enable the generator to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.

Features

  • 20 Vpp maximum output amplitude, high fidelity output with 80dB dynamic range
  • High-performance sampling system with 2.4 GSa/s sampling rate and 16-bit vertical resolution
  • Multi-function signal generator, meeting requirements in wide range
  • Sweep and Burst function
  • Harmonics function
  • Waveform Combining function
  • Channel Coupling, Copy and Tracking function
  • 196 built-in arbitrary waveforms
  • High precision Frequency Counter
  • Standard interfaces include: USB Host, USB Device (USBTMC), LAN (VXI-11, Socket, Telnet). Optional Interface: GPIB
  • 4.3” touch screen display for easier operation

Technical Specifications

SDG6022X SDG6032X SDG6052X
Bandwidth 200 MHz 350 MHz 500 MHz
Number of channels 2
Sampling rate 2.4 GSa/s (2X Interpolation)
Vertical resolution 16 bit
Arbitrary waveform length 2 ~ 20 Mpts
Frequency Counter up to 400 MHz
Max Amplitude 20 Vpp < 40 MHz
Interface Standard: USB Host, USB Device, LAN
Optional: GPIB (USB-GPIB adaptor)
Display 4.3” touch screen display, 480 × 272 RGB

Special Features

True Arb Technology

SIGLENT

Easy Pulse Technology

SIGLENT

Rich Modulation Features

SIGLENT

Burst Function

SIGLENT

Sweep Function

SIGLENT

Frequency Counter

SIGLENT

Data Sheet

PDF  Download SIGLENT SDG6000X Data Sheet.

Package Contents

  • SDG6052X Function/Arbitrary Waveform Generator — 1 pc.
  • Power cord — 1 pc.
  • USB cable — 2 pcs.
Specifications
Channels
  • dual channel
Max. signal frequency
  • 500 MHz
