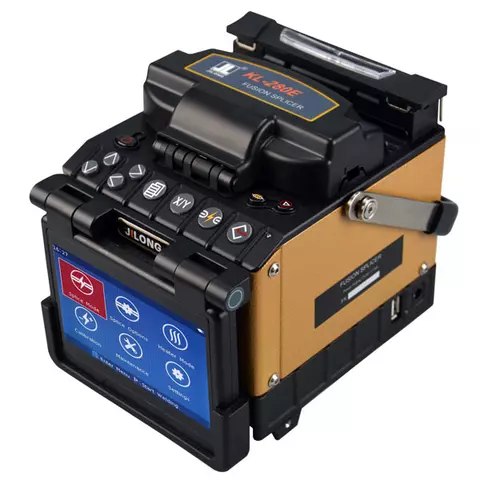

Fusion Splicer Jilong KL-280E
id: 894444
8 kg Warranty: 12 months
Automatic fusion splicer for optic fiber splicing with core or cladding fiber alignment. Splicing time: 9 s, heating time: 16 s. Read more
You may also like
Jilong KL-280E is an automatic fusion splicer with meticulous, manual, core or cladding fiber alignment. The device is capable of splicing fiber in 9 seconds and heating a splice sleeve in 16 seconds. Jilong KL-280E is characterized by real-time & auto control of ARC power function and low splice loss control technology.
4,3-inch color LCD monitor with clear digital image displaying ensures easy and comfortable operation with Jilong KL-280E. Splicing area viewing is ensured by a single view and simultaneous view option for X or Y axes.
Features
- Core-to-core alignment by PAS Technology (PAS: Profile Alignment System).
- Clear fiber core displaying.
- Single view & simultaneous view of X or Y axes.
- Real time & auto control of ARC power.
- Auto check & display quality of cleaved end face.
- Low splice loss control technology.
- Auto compensation of low air pressure.
- Software upgrade via USB interface.
Technical Specifications
Splicing | |
---|---|
Applicable fibers | SM, MM, DS, NZDS |
Fiber cleaved length | 8 ~ 16 mm (coating diameter: 250 µm) |
Fiber diameter | Cladding diameter: 80 ~ 150 µm Coating diameter: 100 ~ 1000 μm |
Fiber count | Single |
Fiber alignment method | Meticulous, Core, Cladding, Manual |
Average splice loss | 0,02 dB (SM), 0,01 dB (MM), 0,04 dB (DS), 0,04 dB (NZDS) |
Splicing time | typical 9 sec (standard SM fiber) |
Splicing programs | 53 (templates), 100 (user adjustable) |
Return loss | > 60 dB |
Internal memory | 10 000 results (24 parameters per result) |
Fiber image magnification | 150X (X or Y view) 75X (X and Y view) |
Splicing mode | Auto, Calibrate, Normal, Special |
Heating | |
Heating time | 16 ~ 25 seconds |
Heating programs | 9 (templates), 40 (user adjustable) |
Applicable sleeves | 60 mm, 40 mm |
General | |
Tension test | 2N |
Electrode life | 2500 splicing cycles |
Battery capacity | typical 300 cycles (splicing and heating) |
Display | 4.3 inch color LCD |
Operating condition | 0 ~ 5000 m above sea level; –10 ~ 50°C; max. wind velocity of 15 m/s |
Power supply | AC 100-240 V with AC adapter DC13.5 V; inner Li-battery (5200mAH) |
Dimensions (L×W×H) | 133 mm × 166 mm × 140 mm |
Weight | 1.5 kg (excluding battery) 1.8 kg (including battery) |
Package Contents
- Fusion Splicer Jilong KL-280E — 1 pc.
- Fiber Cleaver — 1 pc.
- Fiber Stripper — 1 pc.
- Carrying Case — 1 pc.
- Spare Electrodes — 2 pcs.
- Cooling Tray — 1 pc.
- Cleaning Tool — 1 pc.
- Manual — 1 pc.
- Power Supply Cord — 1 pc.
- USB Cable— 1 pc.
