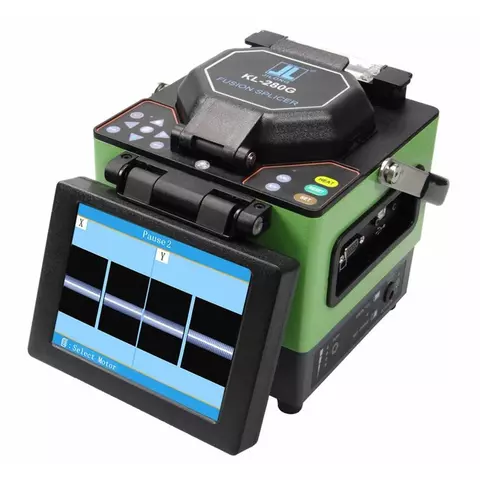

Fusion Splicer Jilong KL-280G

Name: Fusion Splicer Jilong KL-280G
Brand: Jilong
SKU: 873165
Price: 1259.00 USD
Availability: InStock

id: 873165

Overview

Description

Delivery

Payment

Warranty

USD 1259.00

Overview

Fusion Splicer Jilong KL-280G Preview 10

Brand: Jilong

12 kg

Availability in stock: HK

Warranty: 12 months

Automatic fusion splicer for optic fiber splicing with core fiber alignment. Splicing time: 9 s, heating time: 30 s. Read more

USD 1259.00

Impossible to estimate the shipping cost

Note! This item is shipped within 10 working days.

Description

Jilong KL-280G Fusion Splicer is an automatic fusion splicer with core fiber alignment. The device is capable of splicing a fiber in 9 seconds and heating a splice sleeve in 30 seconds. Jilong KL-280G is characterized by an automatic splicing program selection function and automatic quality check.

Features

PAS (Profile Alignment System) core fiber alignment method.
Clear fiber core displaying.
Applicable fibers: Single-mode, Multi-mode, Dispersion-shifted, Non-zero dispersion-shifted.
Splicing time: 9 seconds.
Heating time: 30 seconds.
Single view & simultaneous view of X or Y axes.
Auto splicing program selection.
Auto quality check.
5.7-inch color LCD monitor with clear digital image displaying.
Compact and lightweight.
Easy to use operation menu.

Jilong Fusion Splicers Comparative Specifications

Splicing
	KL-195	KL-280	KL-280G	KL-300	KL-300T	KL-350E
Applicable fibers	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Fiber cleaved length	8 ~ 16 mm (coating diameter: 250 µm)
Fiber diameter	Cladding diameter: 80 ~ 150 µm Coating diameter: 100 ~ 1000 μm
Fiber count	Single
Auto focusing	Unavailable			Available	Unavailable
Fiber alignment method	cladding alignment with fixed V-groove	core alignment	core alignment, cladding alignment, manual alignment
Average splice loss	0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS), 0.04 dB (NZDS)
Splicing time	typical 9 sec (standard SM fiber)
Splicing programs	53 templates 40 user adjustable	12 templates 188 user adjustable	53 templates 40 user adjustable
Return loss	> 60 dB
Internal memory	4000 results, 20 parameters per result	5000 results, 3 parameters per result	4000 results, 20 parameters per result
Fiber image magnification	125X (X and Y view)	400X (X or Y view) 200X (X and Y view)	300X (X or Y view) 150X (X and Y view)
Heating
Heating time	typical 30 sec
Heating programs	9 templates 24 user adjustable	adjustable heating time	9 templates 24 user adjustable
Heating temperature adjustment	Available	Unavailable	Available
Applicable sleeves	60 mm, 40 mm and a series of micro sleeves
General
Tension test	2 N
Electrode life	2500 splicing cycles
Battery capacity	typical 160 cycles (splicing and heating)	typical 130 cycles (splicing and heating)	typical 160 cycles (splicing and heating)
Display	5.7" TFT color monitor	5" color LCD monitor	.7" color LCD monitor	5.7" TFT color monitor
Interface	USB 1.1 and VGA	RS232	USB 1.1 and VGA
Operating conditions	0 ~ 5000 m above sea level; 0 ~ 95% RH; –10 ~ +50°C, respectively; max. wind velocity of 15 m/s
Power supply	AC adapter (AC 100-240 V); Li battery (8000 mAh)		Adaptador AC (AC 100-240 V); Li battery (7800 mAh)	Adaptador AC (AC 100-240 V); Li battery (8000 mAh)
Dimensions (L×W×H)	150 × 150 × 150 mm	150 × 150 × 160 mm	150 × 150 × 150 mm
Weight	3.1 kg (including battery)	3.52 kg (including battery)	2.7 kg (excluding battery) 3.3 kg (including battery)	2.7 kg (excluding battery) 3.2 kg (including battery)
	KL-195	KL-280	KL-280G	KL-300	KL-300T	KL-350E
