Hot Air Rework Station Accta 301

No results found for your request.
ID: 4060 2.75 kg
Availability in stock: HK
Warranty: 12 month (s)
BestsellerMade in Ukraine

USD 129.00
In stock
Add to cart
+ Gift

Compact design, temperature display, hot air gun auto switch-off, 50 W soldering iron, 350 W hot air gun, soldering iron and hot air gun temperature range: 80-480°C.
  • Overview
  • Specifications
  • Video
  • Delivery
  • Payment
  • Warranty

Overview

Accta 301 is a dual-channel hot air turbine soldering/desoldering station. Apart from the hot air gun, the package includes a soldering iron, hot air gun and soldering iron holders, a soldering tip, and hot air nozzles. The station is powerful enough to be used for the lead-free soldering of SMD components.

Tired of problems with cheap soldering stations? Try Accta! This is a budget-friendly soldering station that, in terms of quality and specifications, corresponds to a much higher class of soldering equipment. The engineers have used their experience of working with dozens of stations from different manufacturers and taken into account even the smallest details to improve the design. This is why Accta stations do not have any defects that are so common for the low-budget hot air soldering stations.

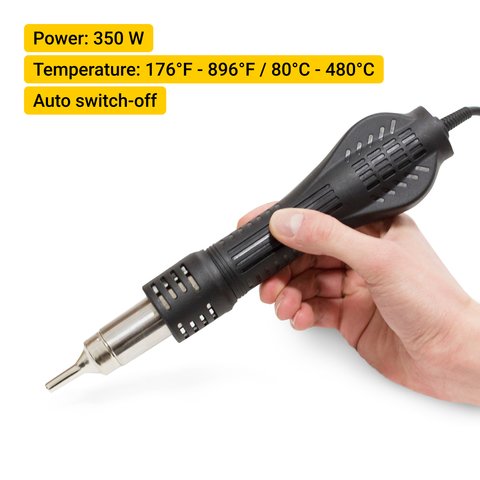

The hot air gun won’t go wrong! Accta 301 soldering station features the hot air gun temperature stabilization, which would allow you to monitor and regulate the temperature of hot air flow as precisely as you could only imagine. Once the hot air gun is placed on its holder, the station automatically goes into the heating element cooling mode and then puts the hot air gun into standby mode.

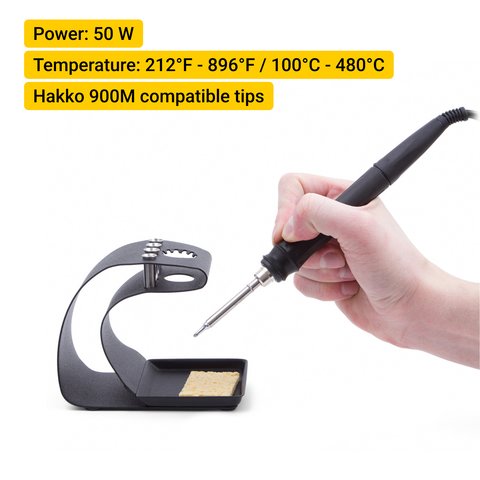

More than just a soldering iron! The soldering iron of the station is well-known for its effective heat transfer and excellent operation stability. Besides, it features a heat-resistant cable as well as a secure connector. Accta 301 displays the actual temperature of the soldering iron and hot airflow. Moreover, for different tasks, you will be able to pick one of the various soldering tips from Hakko 900M series.

Safety comes first! The Accta 301 soldering station features a hard metal body and is equipped with separate switches for each channel (soldering iron and hot air gun channels). The large power reserve of the toroidal transformer guarantees stable operation of the station, even in case of the highest network loads. The transformer provides complete galvanic isolation of all circuits from the network, including the heating element of the soldering iron and the hot air gun. The soldering station also features multi-level overload protection. In the event of an emergency, the safety system shuts the station off.

What is the difference between Accta 301 & Accta 401?

The main difference is that Accta 301 is compatible with Hakko 900M soldering tips while Accta 401 is compatible with Hakko T12 soldering tips.

Video

Features

  • Ultra-compact device.
  • Microprocessor control system.
  • Real-time temperature display.
  • Allows temperature monitoring when the tip touches with the surface.
  • Temperature parameters control using analog adjusting potentiometers.
  • Hot air gun overheating protection.
  • Soldering iron temperature accuracy ±5 °C.
  • Soldering iron linear temperature characteristic.
  • Soldering iron heat-up time up to 12 seconds.
  • Hot air gun auto switch-off.
  • Soldering iron compatibility with Hakko 900M standard replacement soldering tips.
  • The power cord may be disconnected and replaced. The connection type is IEC cord (C13/C14).
  • CE certified.

Technical Specifications

Power Consumption 450 W
Soldering Iron Power  50 W
Hot Air Gun Power 350 W
Soldering Iron Temperature Range 80 – 480 °C
Hot Air Gun Temperature Range 80 – 480 °C
Soldering Iron Heating Element ceramic
Hot Air Gun Heating Element metal heating core
Air Pump Type turbine blower
Air Capacity 120 l/min
Power Input 220-240 V, 50 Hz
Main Unit & Hot Air Gun Holder Size 190 × 194 × 103 mm
Main Unit Size (without holder) 128 × 194 × 100 mm
Weight 2.3 kg

The default plug type is EU plug Type F (CEE 7/7). In case you need a different plug please contact our manager.

Package Contents

  1. Accta 301 Hot Air Rework Station – 1 pc.
  2. Hot Air Gun Holder – 1 pc.
  3. Hot Air Nozzles – 3 pcs.
  4. Soldering Iron – 1 pc.
  5. AOYUE T-I Soldering Tip – 1 pc.
  6. Soldering Iron Holder – 1 pc.
  7. Tip Cleaning Sponge – 1 pc.
  8. User's Manual – 1 pc.

Compatible Soldering Tips

Manufacturer

Flag  This device was developed and manufactured in Ukraine.

Specifications

Design type
  • Desktop
Hot Air Gun Power
  • 350 W
Soldering Iron Power
  • 50 W
Pump type
  • turbine
Desoldering Gun
  • Non-available
Desoldering Pump
  • Non-available
Power Supply
  • Non-available
Vacuum pick-up tool
  • Non-available
