Infrared Rework Station AOYUE Int 732

id: 822620
30.5 kg 220 V Warranty: 12 month (s)
This infrared rework station combines pre-heater suitable for large areas, high powered top-heater, compatible lead free solder iron and uses three temperature sensors.
USD 980.00
Contact
sales team
USD 980.00
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

AOYUE Int 732 Infrared Rework Station combines pre-heater suitable for large areas, high powered top-heater and compatible lead free solder iron. AOYUE Int 732 Infrared Rework Station uses the internal temperature sensors to perform reballing and prebaking of the board, as well as the external temperature sensor to control the rework process manually. The reflowing process is fully automated via the profile set by user. A wide range of tips allows performing the different types of activities such as cleaning BGAs, drag soldering, thru-hole soldering and many others.

AOYUE Int 732 infrared rework station review

AOYUE Int 732 Infrared Rework Station - Features

  • Closed loop temperature control minimizes possible damage and allows accurate temperature settings
  • Improved top and bottom heaters are equipped with three sensors for monitoring the temperature
  • Different boards can be securely fixed with four side grips and nine securing screws

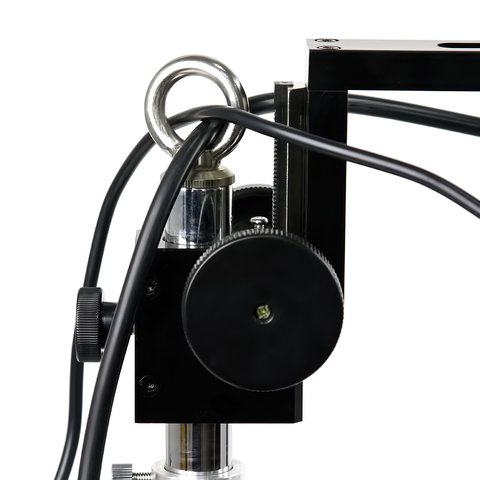

  • Top heater rotation, armature swiveling and sliding adjustments enable access even to the remote ICs
  • Safe digital control system guarantees maximum performance
  • Built-in overheat protection
  • The duration and temperature can be stored in three programmable reworking profiles
  • The solder iron is designed with excellent thermal recovery specially for lead free soldering

AOYUE Int 732 Infrared Rework Station - Technical Specifications

Voltage input 220 V
Power consumption 2100 W
Heater type Top heater: forced convection quartz infrared
Bottom heater: quartz infrared
Solder iron: ceramic heater
Effective heating area Top heater: 60 × 60 mm
Bottom heater: 310 × 310 mm
Dimensions, mm Main Unit: 520 × 370 × 410
Board Holder: 450 × 280 × 134
Weight, kg 11.6

AOYUE Int 732 Infrared Rework Station - Package Content

  • Main station
  • Preheater
  • IR gun holder with bracket
  • Upper heater with temperature probe
  • Upper heater nozzles (2 pcs.)
  • Temperature probes with common connector
  • Diode lamp
  • Soldering iron with WQ-type LF tip
  • Soldering iron stand with viscose sponge for cleaning tips
  • Vacuum tweezers with 3 rubber tips
  • Solder flux
  • Flux pickup tool
  • BGA balls
  • 5 A fuse (2 pcs.)
  • Board holder
  • User manual

Compatible Soldering Tips

Specifications
Upper Heater Size
  • 6x6 cm
Bottom heater size
  • 29x26 cm
Heater Type
  • with a quartz emitter
Control type
  • manual
Upper heater type
  • quartz
Bottom heater type
  • quartz
Upper heater power
  • 500 W
Total power
  • 2100 W
