Mini-Soldering Station GOOT PX-501AS
id: 813234
Made in Japan
0.7 kg 220 V Warranty: 12 month (s)
Reaches the preset temperature extremely fast due to the Quick Start circuit. Newly designed ergonomic grip cover. Temperature setting range: 250—450 °C
Add to wishlist
Compare
Compare
Buy wholesale and save
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

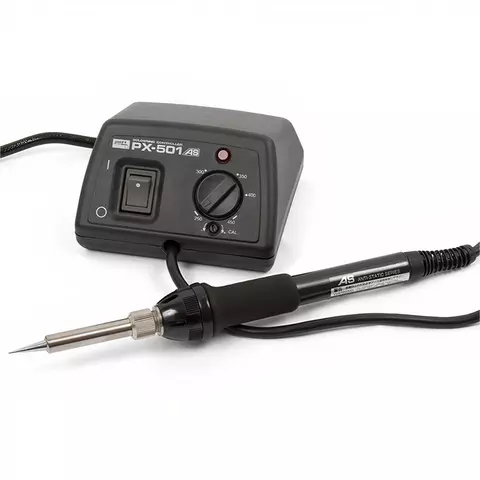

GOOT PX-501AS is a mini-soldering station featuring high performance and offering accurate temperature control and easy operation. Made in Japan.
Features
- Reaches the preset temperature extremely fast due to the Quick Start circuit
- Newly designed ergonomic grip cover
- Temperature setting range : 250—450°C
Technical specifications
| Voltage | 220 V AC, 50/60 Hz | |
| Power consumption | 80-85 W | |
| Soldering unit voltage | 220 V AC / 80 W | |
| Temperature setting range | 250—450°C | |
| Temperature control system | Sensor feedback (ON-OFF control) | |
| Insulation resistance (500 V DC) | Over 100 MΩ | |
| Dimensions | Soldering unit | 195 mm (w/o cord bushing) |
| Control unit | 85 (L) × 100 (W) × 57 (H) mm | |
| Weight | Soldering unit | 41 g (w/o cord) |
| Control unit | 266 g (w/o cord) | |
| Ripple temperature without load | ± 3 °C | |
| Leak voltage | Less than 0.1 mV | |
| Ground resistance | Less than 0.1 Ω | |
| Control unit to soldering unit cord length | 1.2 m | |
| Power cord length | 1.5 m (3 core cable) ground plug | |
Package Contents
- Mini-Soldering Station GOOT PX-501AS — 1 pc.
- Soldering Iron Tip (PX-60RT-B) — 1 pc.
- User Manual — 1 pc.
Compatible Tips
- Soldering Iron Tip GOOT PX-60RT-B (standard)
- Soldering Iron Tip GOOT PX-60RT-2C
- Soldering Iron Tip GOOT PX-60RT-1.6D
- Soldering Iron Tip GOOT PX-60RT-LB
- Soldering Iron Tip GOOT RX-60RT-SB
- Soldering Iron Tip GOOT PX-60RT-3C
- Soldering Iron Tip GOOT PX-60RT-2.4D
- Soldering Iron Tip GOOT PX-60RT-1C
- Soldering Iron Tip GOOT PX-60RT-4C
- Soldering Iron Tip GOOT PX-60RT-3.2D
- Soldering Iron Tip GOOT PX-60RT-5K
- Soldering Iron Tip GOOT PX-60RT-1CR
- Soldering Iron Tip GOOT PX-60RT-3CR
- Soldering Iron Tip GOOT PX-60RT-2CR
- Soldering Iron Tip GOOT PX-60RT-4CR
- Soldering Iron Tip GOOT PX-60RT-3K
